Recently Updated Huawei AP4000 Series Access Points
AP4050DN-HD
Huawei AP4050DN-HD is an indoor 802.11ac Wave 2 access point with 2 × 2 MIMO and two spatial streams. Its built-in dual-band directional antenna has a 30-degree beamwidth, with reference gains of 13 dBi at 2.4 GHz and 10 dBi at 5 GHz. Two Gigabit Ethernet ports have distinct roles: GE0 accepts PoE input and GE1 provides PoE output to downstream devices. Check the powering mode, antenna orientation and intended high-density coverage area in the design.
AP4030DN-E Huawei AP4000 Dual-band 802.11ac Access Point
Huawei AP4030DN-E is an indoor Wi-Fi 5 AP with 2x2 MIMO at 2.4 GHz, 3x3 at 5 GHz and two Gigabit ports. GE0 accepts PoE; 12 V DC has priority. Verify standalone versus adapter bundle.
AP4050DN Huawei AP4000 Series Indoor 2X2 Dual Band Access Points
AP4050DN has the following distinguishing entries in the manufacturer specification. Radio port/built-in antenna: Built-in omnidirectional antenna, dual-band, 2x2 MIMO. Radio power (Max): two.4G: 23dBm(Max) 5G: 23dBm(Max) (note: this is MIMO total radio power, the same as: two.4G: 20dBm/chain(Max) 5G : 20dBm/chain(Max)). Ethernet ports: GE(RJ45) x one, 1000base-T, 10M/100M/1000M auto negotiation speed;. Power consumption of the device: twelve.1W. MIMO: 2x2Multi-input Multi-output, for example, four*four:four indicates that 4SU-4MU is supported..
AP4050DE-M Huawei AP4000 Series 802.11ac Wave 2 Indoor Access Point
AP4050DE-M has the following distinguishing entries in the manufacturer specification. Radio port/built-in antenna: Built-in omnidirectional antenna, dual-band MIMO, two.4G/5G two+5G two. Radio power (Max): two.4G: 27dBm(Max) 5G: 27dBm(Max) (note: this is MIMO total radio power, the same as: two.4G: 24dBm/chain(Max) 5G : 24dBm/chain(Max)). Ethernet ports: GE(RJ45)*one, 10M/100M/1000M auto. Power consumption of the device: sixteen.40W. MIMO: two.4G:2x25G:2x2Multi-input Multi-output, for example, four*four:four indicates that 4SU-4MU is supported..
AP4151DN Huawei AP4000 Series 802.11ac Wave 2 Dual-band Access Point
AP4151DN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~50℃ Storage temperature: -40~70℃; Humidity: 5%~95%.
AP4030TN Huawei AP4000 Series Wi-Fi 5 2 x 2 MIMO Access Points
AP4030TN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~45℃ Storage temperature: -40~70℃; Humidity: 5%~95%.
AP4050DN-S Huawei AP4000 Series Dual-band 802.11ac Wave 2 Access Point
AP4050DN-S PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~50℃ Storage temperature: -40~70℃; Humidity: 5%~95%.

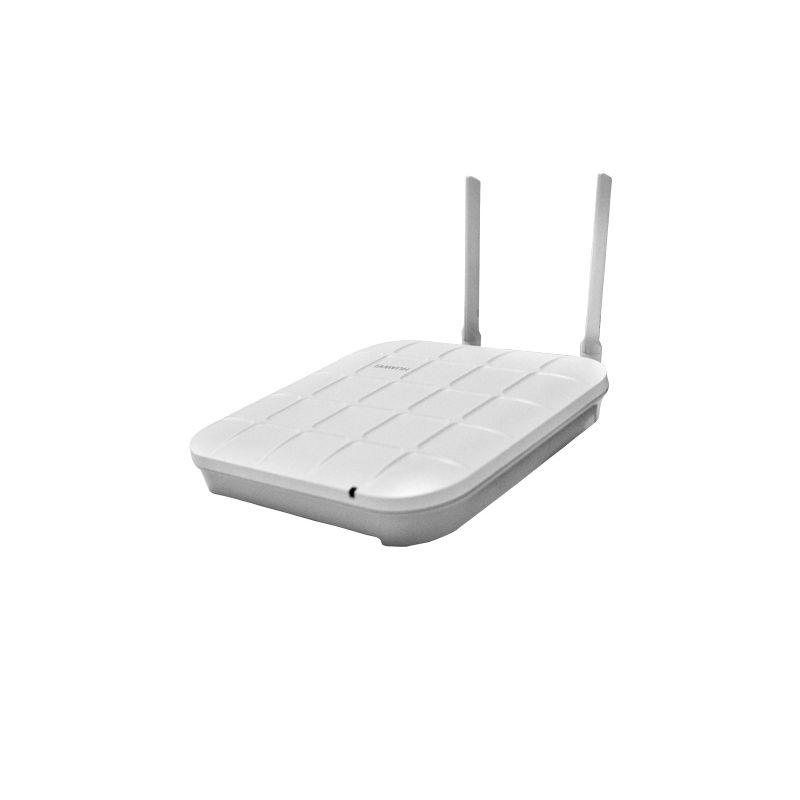

AP4130DN Huawei AP4000 Series 802.11ac Wave 1 2 x 2 MIMO Access Point
AP4130DN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 2/4 kV (1.2/50 us, 42 ohm), B/R criterion; Operating temperature: Operating temperature: 0~45℃ (Declare: -10 to +50℃) Storage temperature: -40~70℃; Humidity: 5%~95%.
Condition: New Factory Sealed
Huawei AP4050DN-HD is an indoor 802.11ac Wave 2 access point with 2 × 2 MIMO and two spatial streams. Its built-in dual-band directional antenna has a 30-degree beamwidth, with reference gains of 13 dBi at 2.4 GHz and 10 dBi at 5 GHz. Two Gigabit Ethernet ports have distinct roles: GE0 accepts PoE input and GE1 provides PoE output to downstream devices. Check the powering mode, antenna orientation and intended high-density coverage area in the design.US$ 400.00
Condition: New Factory Sealed
Huawei AP4030DN-E is an indoor Wi-Fi 5 AP with 2x2 MIMO at 2.4 GHz, 3x3 at 5 GHz and two Gigabit ports. GE0 accepts PoE; 12 V DC has priority. Verify standalone versus adapter bundle.US$ 407.00
Condition: New Factory Sealed
AP4050DN has the following distinguishing entries in the manufacturer specification. Radio port/built-in antenna: Built-in omnidirectional antenna, dual-band, 2x2 MIMO. Radio power (Max): two.4G: 23dBm(Max) 5G: 23dBm(Max) (note: this is MIMO total radio power, the same as: two.4G: 20dBm/chain(Max) 5G : 20dBm/chain(Max)). Ethernet ports: GE(RJ45) x one, 1000base-T, 10M/100M/1000M auto negotiation speed;. Power consumption of the device: twelve.1W. MIMO: 2x2Multi-input Multi-output, for example, four*four:four indicates that 4SU-4MU is supported..US$ 263.00
Condition: New Factory Sealed
AP4050DE-M has the following distinguishing entries in the manufacturer specification. Radio port/built-in antenna: Built-in omnidirectional antenna, dual-band MIMO, two.4G/5G two+5G two. Radio power (Max): two.4G: 27dBm(Max) 5G: 27dBm(Max) (note: this is MIMO total radio power, the same as: two.4G: 24dBm/chain(Max) 5G : 24dBm/chain(Max)). Ethernet ports: GE(RJ45)*one, 10M/100M/1000M auto. Power consumption of the device: sixteen.40W. MIMO: two.4G:2x25G:2x2Multi-input Multi-output, for example, four*four:four indicates that 4SU-4MU is supported..US$ 232.00
Condition: New Factory Sealed
AP4151DN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~50℃ Storage temperature: -40~70℃; Humidity: 5%~95%.US$ 300.00
Condition: New Factory Sealed
AP4030TN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~45℃ Storage temperature: -40~70℃; Humidity: 5%~95%.US$ 578.00
Condition: New Factory Sealed
AP4050DN-S PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 6 kV (1.2/50 us, 42 ohm), B criterion; Operating temperature: Operating temperature: -10~50℃ Storage temperature: -40~70℃; Humidity: 5%~95%.US$ 189.00
Condition: New Factory Sealed
AP4130DN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 2/4 kV (1.2/50 us, 42 ohm), B/R criterion; Operating temperature: Operating temperature: 0~45℃ (Declare: -10 to +50℃) Storage temperature: -40~70℃; Humidity: 5%~95%.US$ 312.00
Condition: New Factory Sealed
AP4030DN PoE port surge protection: PoE interface: Differential mode (48 V-RTN), 0.5 kV (1.2/50 us, 42 ohm), B criterion; Common mode (eight pairs of cables-GND), 2/4 kV (1.2/50 us, 42 ohm), B/R criterion; Operating temperature: Operating temperature: 0~45℃ (Declare: -10 to +50℃) Storage temperature: -40~70℃; Humidity: 5%~95%.US$ 211.00
Condition: New Factory Sealed
AP4051TN HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.US$ 485.00
Condition: New Factory Sealed
AP4050DN-E HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.US$ 316.00
