Huawei S5700 Series Switches
Recently updated
Recently Updated Huawei S5700 Series Switches

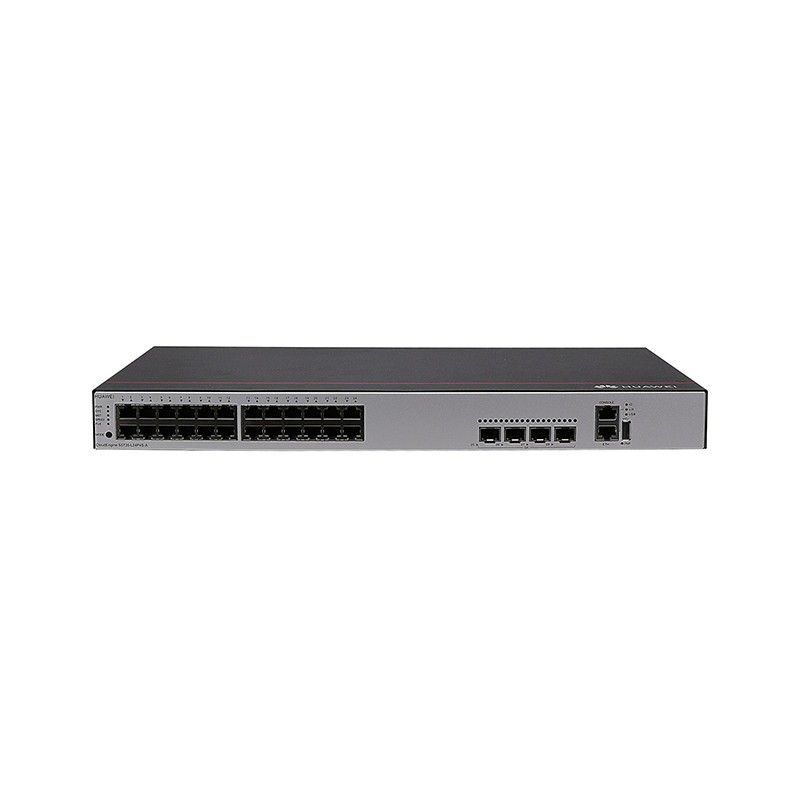

S5735S-L24P4S-A
S5735S-L24P4S-A, Huawei part number 98010925, provides 24 PoE+ 10/100/1000BASE-T ports and four 1000BASE-X optical positions. Its built-in power module supplies a 380 W shared PoE budget: Huawei specifies full power for 24 IEEE 802.3af ports or 12 IEEE 802.3at ports. The optical group provides Gigabit service connections, while the listed 10GE media are for stacking under version-specific conditions.

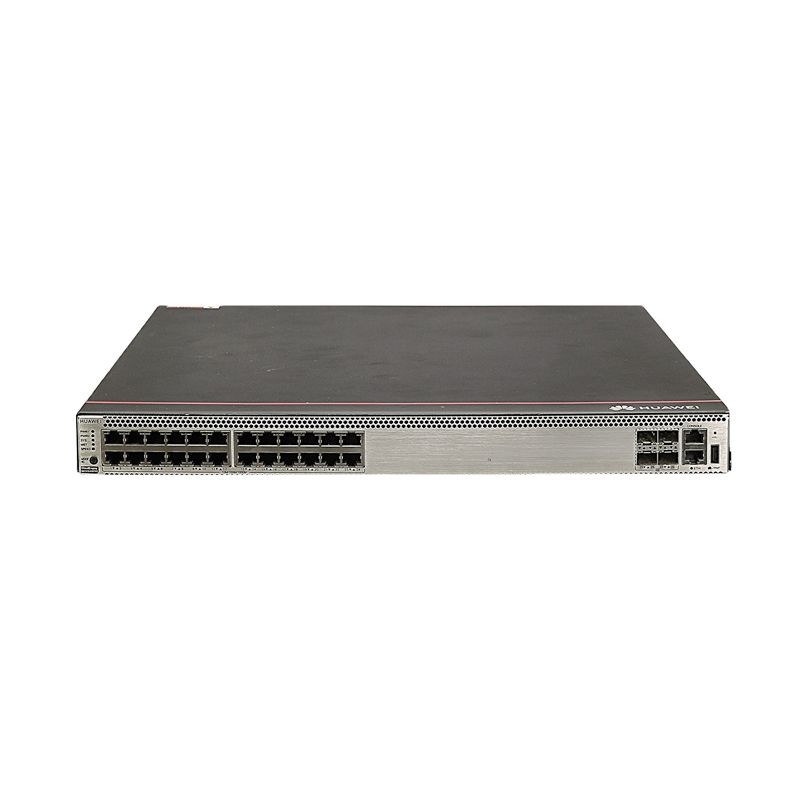

S5731S-H24T4S-A
S5731S-H24T4S-A is a Huawei S5731S-H switch with 24 10/100/1000BASE-T interfaces and four 1000BASE-X interfaces. The four optical positions provide Gigabit service links; the listed 10GE modules and high-speed cables are restricted to stacking. This non-PoE chassis accepts one or two power modules for 1+1 redundancy and uses replaceable fans. Check the full part-number revision before choosing software.

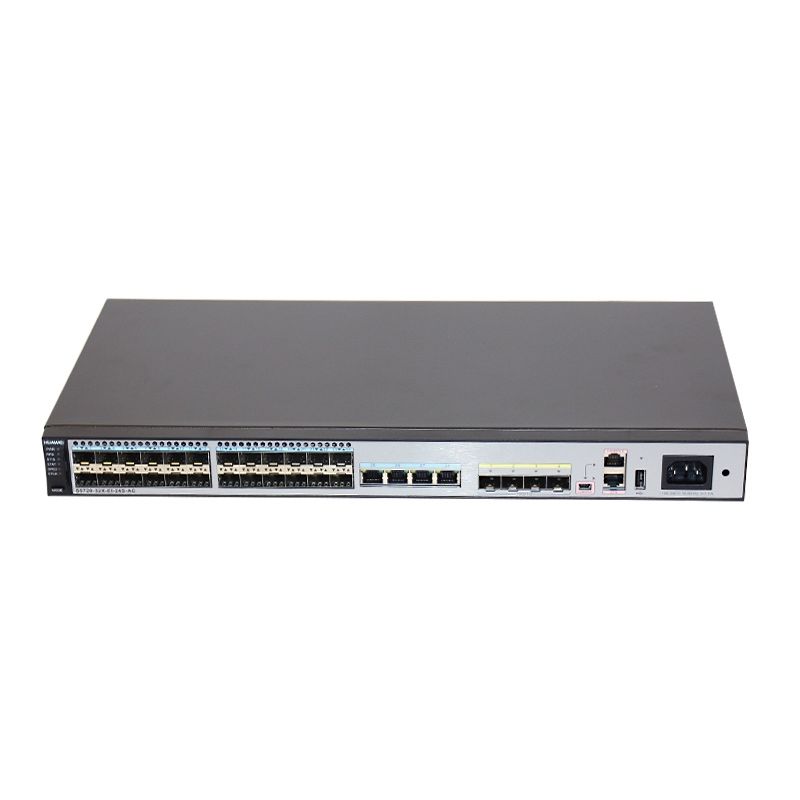

S5720-32X-EI-24S-AC
S5720-32X-EI-24S-AC is Huawei's S5720-X-EI optical-access switch, part number 02359579. It combines 24 100/1000BASE-X ports, four 10/100/1000BASE-T ports and four 10GE SFP+ ports. Its two rear QSFP+ interfaces are dedicated to stacking. A built-in AC supply powers this non-PoE chassis, with an RPS1800 connection available for external power redundancy.
S5700-52C-SI 02352356
S5700-52C-SI, manufacturer part number 02352356, is a Huawei S5700-SI switch with 48 fixed 10/100/1000BASE-T ports. Optical uplinks are provided by a front interface card rather than a fixed four-port SFP+ group. The chassis supports single or dual power modules and does not provide PoE, so the card and power configuration must be itemized when requesting a quotation.
S5700-28X-LI-DC
S5700-28X-LI-DC is the Huawei S5700-LI DC switch identified as BOM 02354234. Its manufacturer order row specifies 24 Ethernet 10/100/1000 ports, four 10 Gigabit SFP+ ports and DC −48V. This combination provides Gigabit copper access with separate 10G optical positions; the exact DC model and planned optical modules should be stated in the purchase request.
Huawei S5700-28C-HI-24S Huawei S5700 Series Switch
Huawei S5700-28C-HI-24S is a 24-port optical Gigabit switch with a front uplink-card slot and two power-module slots. Confirm the fitted card, supplies and software before planning 10GE uplinks or stacking.
Huawei S5735-L24T4S-A CloudEngine Campus Switch
S5735-L24T4S-A is a non-PoE Huawei CloudEngine S5735-L campus switch with 24 10/100/1000BASE-T access ports and four GE SFP uplinks. The T model should not be confused with the S5735-L24P4S-A PoE+ variant or a later V2 PID.

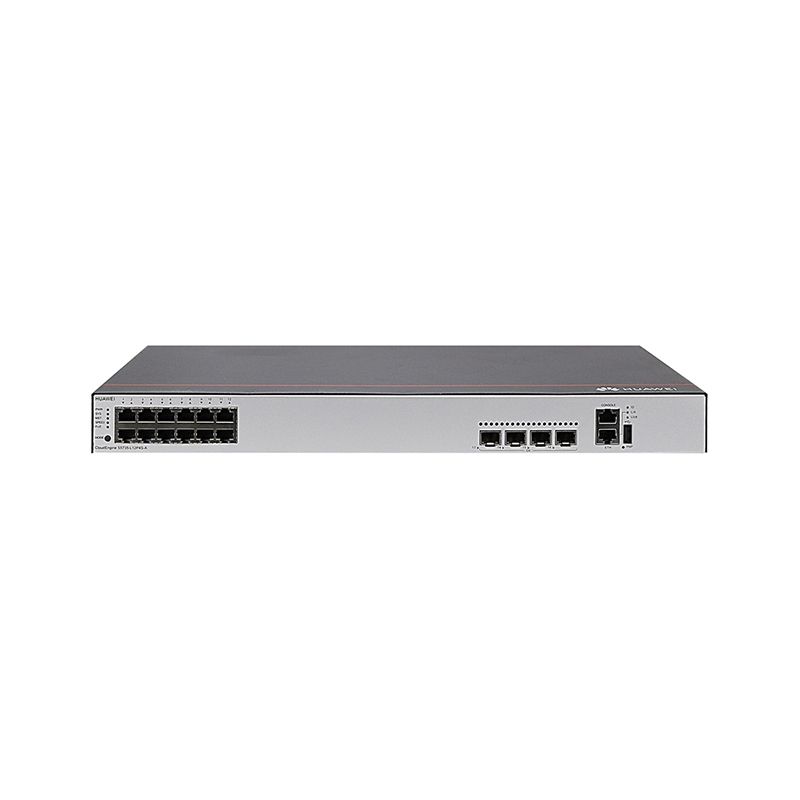

Huawei S5700 Series Switches S5735-L12T4S-A
S5735-L12T4S-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twelve x ten/one hundred/1000Base-T ports, four x GE SFP ports. Switching Capacity2: thirty-two Gbit/s/three hundred thirty-six Gbit/s. S5735-L12T4S-A Specification Forwarding Performance: twenty-four Mpps.
Condition: New Factory Sealed
S5735S-L24P4S-A, Huawei part number 98010925, provides 24 PoE+ 10/100/1000BASE-T ports and four 1000BASE-X optical positions. Its built-in power module supplies a 380 W shared PoE budget: Huawei specifies full power for 24 IEEE 802.3af ports or 12 IEEE 802.3at ports. The optical group provides Gigabit service connections, while the listed 10GE media are for stacking under version-specific conditions.US$ 672.00
Condition: New Factory Sealed
S5731S-H24T4S-A is a Huawei S5731S-H switch with 24 10/100/1000BASE-T interfaces and four 1000BASE-X interfaces. The four optical positions provide Gigabit service links; the listed 10GE modules and high-speed cables are restricted to stacking. This non-PoE chassis accepts one or two power modules for 1+1 redundancy and uses replaceable fans. Check the full part-number revision before choosing software.US$ 619.00
Condition: New Factory Sealed
S5720-32X-EI-24S-AC is Huawei's S5720-X-EI optical-access switch, part number 02359579. It combines 24 100/1000BASE-X ports, four 10/100/1000BASE-T ports and four 10GE SFP+ ports. Its two rear QSFP+ interfaces are dedicated to stacking. A built-in AC supply powers this non-PoE chassis, with an RPS1800 connection available for external power redundancy.US$ 2,000.00
Condition: New Factory Sealed
S5700-52C-SI, manufacturer part number 02352356, is a Huawei S5700-SI switch with 48 fixed 10/100/1000BASE-T ports. Optical uplinks are provided by a front interface card rather than a fixed four-port SFP+ group. The chassis supports single or dual power modules and does not provide PoE, so the card and power configuration must be itemized when requesting a quotation.US$ 999.00
Condition: New Factory Sealed
S5700-28X-LI-DC is the Huawei S5700-LI DC switch identified as BOM 02354234. Its manufacturer order row specifies 24 Ethernet 10/100/1000 ports, four 10 Gigabit SFP+ ports and DC −48V. This combination provides Gigabit copper access with separate 10G optical positions; the exact DC model and planned optical modules should be stated in the purchase request.US$ 1,022.00
Condition: New Factory Sealed
Huawei S5700-28C-HI-24S is a 24-port optical Gigabit switch with a front uplink-card slot and two power-module slots. Confirm the fitted card, supplies and software before planning 10GE uplinks or stacking.US$ 3,600.00
Condition: New Factory Sealed
S5735-L24T4S-A is a non-PoE Huawei CloudEngine S5735-L campus switch with 24 10/100/1000BASE-T access ports and four GE SFP uplinks. The T model should not be confused with the S5735-L24P4S-A PoE+ variant or a later V2 PID.US$ 506.00
Condition: New Factory Sealed
S5735-L12T4S-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twelve x ten/one hundred/1000Base-T ports, four x GE SFP ports. Switching Capacity2: thirty-two Gbit/s/three hundred thirty-six Gbit/s. S5735-L12T4S-A Specification Forwarding Performance: twenty-four Mpps.US$ 331.00
Condition: New Factory Sealed
S5735S-L24P4X-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twenty-four x ten/one hundred/1000Base-T ports, four x ten GE SFP+ ports. Switching Capacity2: one hundred twenty-eight Gbit/s/three hundred thirty-six Gbit/s. S5735S-L24P4X-A Specification Forwarding Performance: ninety-six Mpps.US$ 882.00
Condition: New Factory Sealed

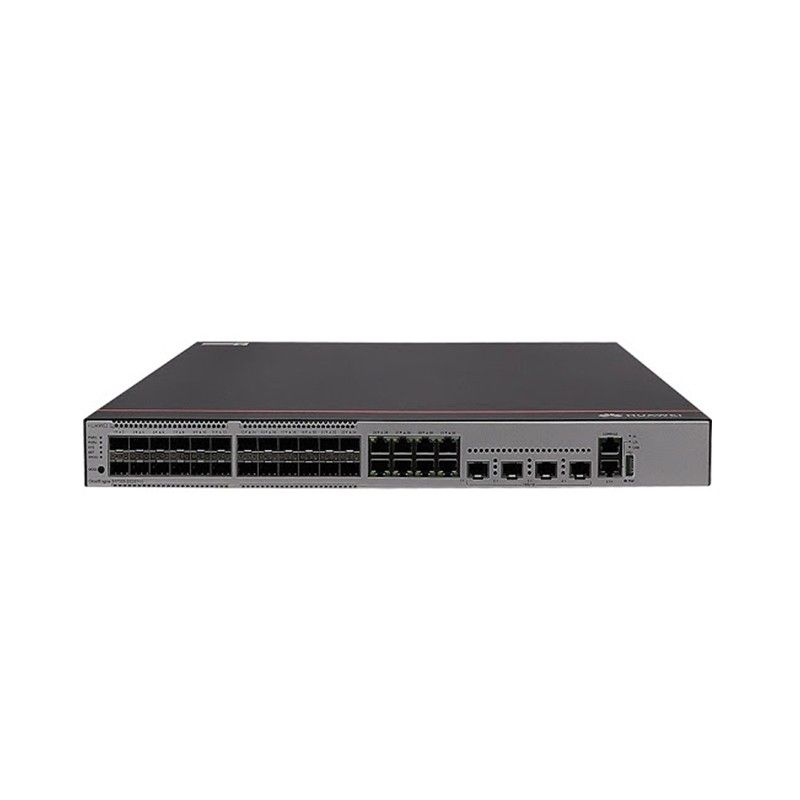

S5735S-L32ST4X-A Specification Forwarding Performance: 108 Mpps; Switching Capacity2: 144 Gbit/s/432 Gbit/s; Fixed Ports: 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports.US$ 970.00
Condition: New Factory Sealed
S5700-52C-PWR-EI-AC HUAWEI enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support.US$ 3,600.00
