S5731S-H24T4S-A Overview
Treat the four optical positions as Gigabit service ports
For a GE optical module, the 1000BASE-X interface operates at 1000 Mbit/s and does not offer 100 Mbit/s optical service. A supported GE copper module can instead operate at 10, 100 or 1000 Mbit/s. Huawei lists 10GE SFP+ optics, high-speed copper and AOC cables only for stack use on these positions, with OSXD22N00 excluded. Their compatibility must not be turned into a claim of four general-purpose 10G uplinks. Plan service and stack connections separately, then specify the exact modules and cables.
Identify the revision before agreeing to a software baseline
The same S5731S-H24T4S-A model has three part-number mappings. Base 02353DJE starts at V200R019C00, while 02353DJE-001 starts at V200R020C10. Revision 02353DJE-003 starts at V200R021C10SPC600; Huawei also documents patched alternatives: V200R021C10SPC500 requires V200R021HP0121 or later, and V200R021C00SPC100 requires V200R021SPH013 or later. The CMS model does not identify which revision will be supplied. Request a label and running-version record rather than assigning one baseline to every unit.
Match redundant power modules by cooling type and release
The two power slots support a single supply or two supplies in a 1+1 arrangement. AC and DC modules can coexist, but a naturally cooled module cannot be combined with a module that has a fan. Supported choices include PAC150S12-R and PDC1000S12-DB; PAC600S12-DB requires V200R020C10 or later, and PDC180S12-CR requires V200R020C00 or later. Confirm module codes, cooling type, software and site input together. RPS and PoE are not supported on this model; power-supply wattage is not an endpoint PoE budget.
Check rear exhaust clearance and cold-start conditions
Two fan slots accept FAN-023A-B modules, with air entering at the front and exhausting at the rear. The chassis is 43.6 × 442.0 × 420.0 mm in H × W × D order, while maximum depth to the rear handle is 448.0 mm. Huawei specifies operation down to −5°C at 0–1800 m, but states that the switch cannot start below 0°C. These are different limits; apply the documented altitude derating as well. The official base-part diagram helps identify the layout, while the actual revision, fan and power-module quantities, optics and condition belong in the quotation and delivered-unit checks.
Document/Firmware Download
S5731S-H24T4S-A Specification
| Model and part-number family | S5731S-H24T4S-A; 02353DJE / 02353DJE-001 / 02353DJE-003 |
| Copper interfaces | 24 × 10/100/1000BASE-T |
| Optical service interfaces | 4 × 1000BASE-X; GE optics operate at 1000 Mbit/s |
| Stack-media restriction | 10GE SFP+ optics and high-speed cables listed for stack use only; OSXD22N00 excluded |
| Base and -001 software | 02353DJE: V200R019C00+; 02353DJE-001: V200R020C10+ |
| Revision -003 software | V200R021C10SPC600+; specified earlier builds require the documented patches |
| Power redundancy | Single module or two modules for 1+1; AC/DC may coexist subject to cooling-type compatibility |
| Power-module release limits | PAC600S12-DB: V200R020C10+; PDC180S12-CR: V200R020C00+ |
| PoE and RPS | Neither supported |
| Fan arrangement | 2 slots for FAN-023A-B; front intake and rear exhaust |
| Chassis size (H × W × D) | 43.6 × 442.0 × 420.0 mm basic; 448.0 mm maximum depth |
| Cold-start boundary | Operating range includes −5°C at 0–1800 m, but startup below 0°C is not supported; altitude derating applies |
S5731S-H24T4S-A Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
S5731S-H24T4S-A FAQ
What is S5731S-H24T4S-A?
S5731S-H24T4S-A is a HUAWEI S5700 Series Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What interfaces and ports does S5731S-H24T4S-A provide?
For S5731S-H24T4S-A, the manufacturer specification lists copper interfaces as 24 × 10/100/1000BASE-T.
What are the power requirements for S5731S-H24T4S-A?
For S5731S-H24T4S-A, the manufacturer specification lists power redundancy as Single module or two modules for 1+1; AC/DC may coexist subject to cooling-type compatibility.
Is S5731S-H24T4S-A available from YYST Global?
Contact YYST Global to confirm availability for S5731S-H24T4S-A, the required quantity, exact configuration, delivery destination and current lead time before ordering. A product listing does not confirm current inventory.
What is the price of S5731S-H24T4S-A?
The current reference price for S5731S-H24T4S-A is US$ 619.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related S5731S-H24T4S-A

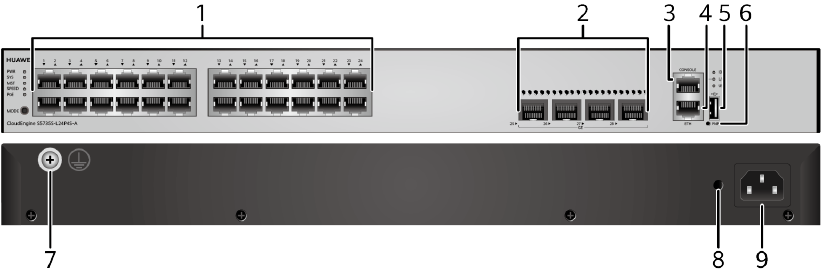

S5735S-L24P4S-A
S5735S-L24P4S-A, Huawei part number 98010925, provides 24 PoE+ 10/100/1000BASE-T ports and four 1000BASE-X optical positions. Its built-in power module supplies a 380 W shared PoE budget: Huawei specifies full power for 24 IEEE 802.3af ports or 12 IEEE 802.3at ports. The optical group provides Gigabit service connections, while the listed 10GE media are for stacking under version-specific conditions.
Huawei S5735-L24T4S-A CloudEngine Campus Switch
S5735-L24T4S-A is a non-PoE Huawei CloudEngine S5735-L campus switch with 24 10/100/1000BASE-T access ports and four GE SFP uplinks. The T model should not be confused with the S5735-L24P4S-A PoE+ variant or a later V2 PID.
Huawei S5700 Series Switches S5735-L12T4S-A
S5735-L12T4S-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twelve x ten/one hundred/1000Base-T ports, four x GE SFP ports. Switching Capacity2: thirty-two Gbit/s/three hundred thirty-six Gbit/s. S5735-L12T4S-A Specification Forwarding Performance: twenty-four Mpps.
Huawei S5735 Series Switches S5735S-L24P4X-A
S5735S-L24P4X-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twenty-four x ten/one hundred/1000Base-T ports, four x ten GE SFP+ ports. Switching Capacity2: one hundred twenty-eight Gbit/s/three hundred thirty-six Gbit/s. S5735S-L24P4X-A Specification Forwarding Performance: ninety-six Mpps.
S5735S-L32ST4X-A - Huawei S5735 Series Switches
S5735S-L32ST4X-A Specification Forwarding Performance: 108 Mpps; Switching Capacity2: 144 Gbit/s/432 Gbit/s; Fixed Ports: 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports.

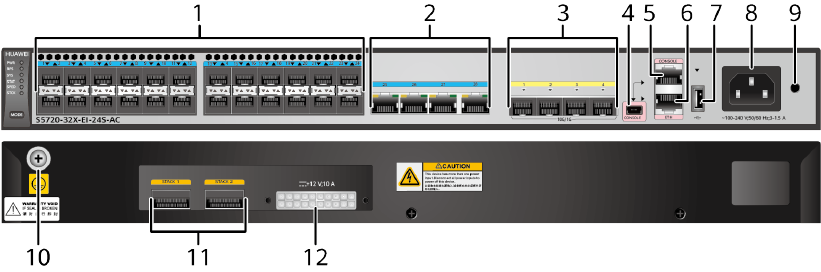

S5720-32X-EI-24S-AC
S5720-32X-EI-24S-AC is Huawei's S5720-X-EI optical-access switch, part number 02359579. It combines 24 100/1000BASE-X ports, four 10/100/1000BASE-T ports and four 10GE SFP+ ports. Its two rear QSFP+ interfaces are dedicated to stacking. A built-in AC supply powers this non-PoE chassis, with an RPS1800 connection available for external power redundancy.

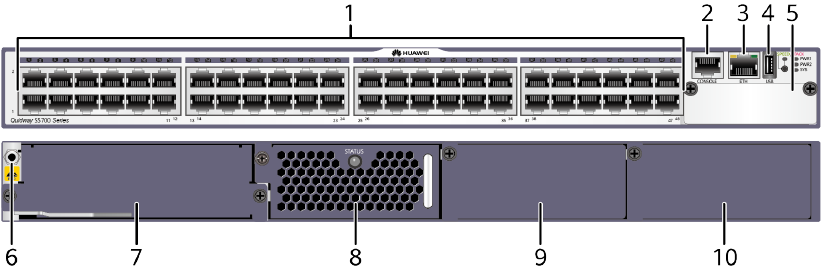

S5700-52C-SI 02352356
