S5735S-L24P4S-A Overview
Calculate endpoint demand against the shared PoE budget
PoE+ capability on all twenty-four copper interfaces does not mean that all twenty-four can simultaneously draw full 802.3at power. Huawei's 380 W budget supports the documented full-power arrangements of 24 af ports or 12 at ports. For a mixed deployment, list each endpoint's required allocation and evaluate their combined demand. The guide separately reports 451 W maximum input consumption at full PoE load, including the 380 W delivered PoE component; 451 W is not an enlarged endpoint-power budget.
Keep Gigabit uplinks separate from the stacking media list
GE optical modules use 1000 Mbit/s service operation. FE optical modules provide 100 Mbit/s operation only from V200R021C00, while GE copper modules support 10/100/1000 operation. The 10GE SFP+ optical modules, supported copper cables and AOC cables are listed for stack connections from V200R019C10; OSXD22N00 is excluded. The presence of those entries does not establish four general-purpose 10G uplinks. Confirm the running software and assign each optical position to its intended service or stack role.
Check the fixed power and cooling arrangement before replacement
The switch has a built-in power module and does not accept pluggable supplies. RPS is not supported, so the redundancy options of other S5731 or S5735 chassis must not be transferred to this model. Huawei lists 100–240 V AC at 50/60 Hz and 240 V high-voltage DC as rated inputs; that high-voltage DC rating does not describe a −48 V telecom supply. Two built-in fans draw air from the left and front and exhaust to the right. State the site power and clearance requirements together with the exact model in the quotation.
Match the software window and mounting depth to the site
The chassis maps to V200R019C00 through V200R023C00, excluding V200R021C01. Stacking is available from V200R019C10 on supported copper or optical service ports, rather than on a separate rear stack connector. Basic dimensions are 43.6 × 442.0 × 220.0 mm in H × W × D order, with maximum depth 227.0 mm including protruding parts. The normal operating range is −5°C to +50°C at 0–1800 m with altitude derating, but startup below 0°C is not supported. Request the exact unit condition, optics, cables and software in the offer; the manufacturer diagram identifies layout without proving supplied accessories.
Document/Firmware Download
S5735S-L24P4S-A Specification
| Exact model and part number | S5735S-L24P4S-A / 98010925 |
| PoE copper access | 24 × PoE+ 10/100/1000BASE-T |
| Optical service interfaces | 4 × 1000BASE-X; FE optics from V200R021C00 |
| Shared PoE budget | 380 W; full-power arrangements: 24 × 802.3af or 12 × 802.3at |
| Input consumption at full PoE load | 451 W maximum including 380 W PoE component; not the endpoint budget |
| Power-module arrangement | Built-in module; no pluggable power modules; no RPS |
| Rated power inputs | 100–240 V AC, 50/60 Hz; 240 V high-voltage DC |
| Software mapping | V200R019C00–V200R023C00; excludes V200R021C01 |
| Stacking boundary | Supported service ports from V200R019C10; listed 10GE media only for stack use |
| Cooling | Two built-in fans; left/front intake and right exhaust |
| Dimensions (H × W × D) | Basic: 43.6 × 442.0 × 220.0 mm; maximum depth: 227.0 mm |
| Temperature boundary | Normal −5°C to +50°C at 0–1800 m, altitude derating applies; no startup below 0°C |
S5735S-L24P4S-A Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
S5735S-L24P4S-A FAQ
What is S5735S-L24P4S-A?
S5735S-L24P4S-A is a HUAWEI S5700 Series Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What are the power requirements for S5735S-L24P4S-A?
For S5735S-L24P4S-A, the manufacturer specification lists poe copper access as 24 × PoE+ 10/100/1000BASE-T.
What interfaces and ports does S5735S-L24P4S-A provide?
For S5735S-L24P4S-A, the manufacturer specification lists optical service interfaces as 4 × 1000BASE-X; FE optics from V200R021C00.
Is S5735S-L24P4S-A available from YYST Global?
Contact YYST Global to confirm availability for S5735S-L24P4S-A, the required quantity, exact configuration, delivery destination and current lead time before ordering. A product listing does not confirm current inventory.
What is the price of S5735S-L24P4S-A?
The current reference price for S5735S-L24P4S-A is US$ 672.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related S5735S-L24P4S-A
Huawei S5735 Series Switches S5735S-L24P4X-A
S5735S-L24P4X-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twenty-four x ten/one hundred/1000Base-T ports, four x ten GE SFP+ ports. Switching Capacity2: one hundred twenty-eight Gbit/s/three hundred thirty-six Gbit/s. S5735S-L24P4X-A Specification Forwarding Performance: ninety-six Mpps.
S5735S-L32ST4X-A - Huawei S5735 Series Switches
S5735S-L32ST4X-A Specification Forwarding Performance: 108 Mpps; Switching Capacity2: 144 Gbit/s/432 Gbit/s; Fixed Ports: 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports.
Huawei S5735S-L8T4S-A1 Switch
S5735S-L8T4S-A1 is listed in Huawei Switches. Check model compatibility, current stock, condition and quotation details.
Huawei S5735-L24T4S-A CloudEngine Campus Switch
S5735-L24T4S-A is a non-PoE Huawei CloudEngine S5735-L campus switch with 24 10/100/1000BASE-T access ports and four GE SFP uplinks. The T model should not be confused with the S5735-L24P4S-A PoE+ variant or a later V2 PID.
Huawei S5700 Series Switches S5735-L12T4S-A
S5735-L12T4S-A has the following distinguishing entries in the manufacturer specification. Fixed Ports: twelve x ten/one hundred/1000Base-T ports, four x GE SFP ports. Switching Capacity2: thirty-two Gbit/s/three hundred thirty-six Gbit/s. S5735-L12T4S-A Specification Forwarding Performance: twenty-four Mpps.

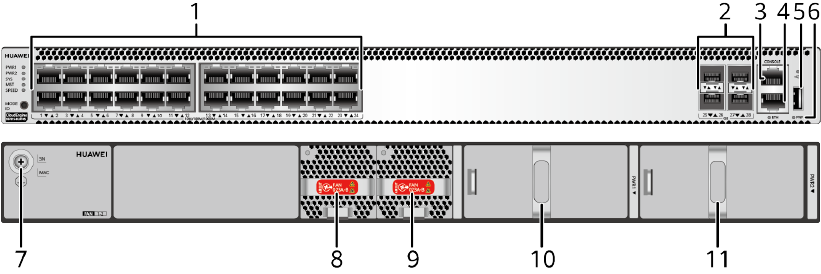

S5731S-H24T4S-A
