Huawei AirEngine 5700 Series Access Points
Wi-Fi 6 (802.11ax), 2 x 2 Multiple-Input Multiple-Output (MIMO), 2.4 GHz and 5 GHz bands, 2.975 Gbit/s.
Recently updated
Recently Updated Huawei AirEngine 5700 Series Access Points

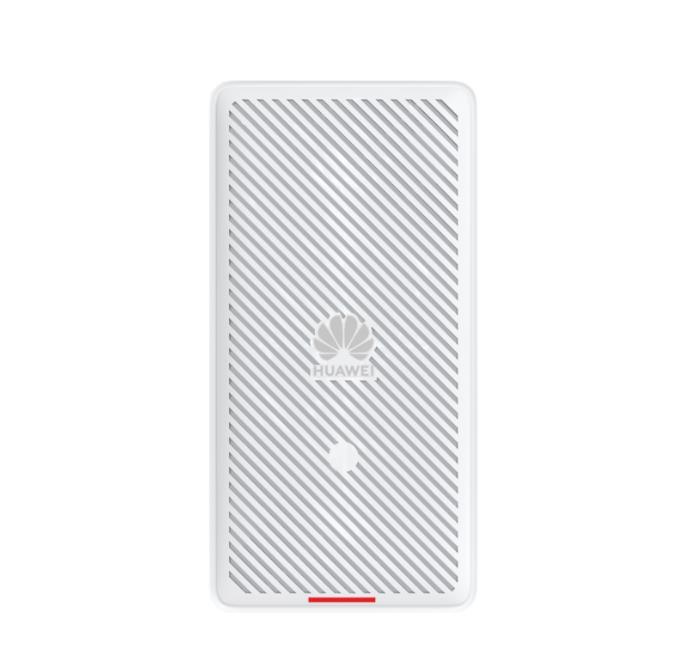

AirEngine 5760-22W Huawei AirEngine 5700 WiFi 6 4x4 MIMO 5GHz AP
Huawei AirEngine 5760-22W combines a 2.5GE copper uplink, four GE downlinks and GE/10GE SFP+. Optical uplink use and PoE input mode change radio capacity and peripheral power availability.
AirEngine 5760-51 Huawei AirEngine 5700 WiFi 6 2+4 Dual-band AP
Huawei AirEngine 5760-51 offers 5GE copper and RTU-dependent Wi-Fi 6 radio layouts. Verify the hardware code, loaded RTU and power mode; 802.3at limits the 5GE uplink to 2.5GE or below.
AirEngine5761R-11-Huawei Outdoor AP for high-density environments
AirEngine 5761R-11 is an AirEngine 5700 outdoor Wi-Fi 6 AP with directional antennas, Gigabit copper and Gigabit SFP. Under 802.3af, only one wired interface is active, with optical priority.
AirEngine 5761S-11-Huawei Wi-Fi 6 (802.11ax) 2×2 MIMO Indoor AP
AirEngine 5761S-11 is a single-Gigabit-port indoor Wi-Fi 6 AP with dual-band 2x2 radios and BLE 5.2. Check PoE mode before using USB; 802.3af imposes feature restrictions.
AirEngine 5761S-11W-Huawei Wi-Fi 6（802.11ax）for High-density scenarios
AirEngine 5761S-11W combines five Gigabit Ethernet ports, a separate RJ-45 pass-through pair and dual-band 2x2 Wi-Fi 6. USB is disabled with 802.3af input; this model has no PoE output.
Huawei AirEngine 5762S-11SW Wi-Fi 6 Wall-Box Access Point
AirEngine 5762S-11SW has one Gigabit Ethernet port and uses up to 11 W from 802.3af PoE. This wall-box Wi-Fi 6 AP includes BLE 5.0 but no second Ethernet socket, USB or PoE output.
AirEngine 5762S-12SW Huawei AirEngine 5700 Indoor Dual-Band Wi-Fi 6 AP
AirEngine 5762S-12SW provides one Gigabit uplink and one downlink in an 86 mm wall plate. Confirm standalone host 50084977 versus a multi-AP kit, and distinguish the 2.975 Gbit/s radio rate from wired throughput.
AirEngine5762-12SW Huawei AirEngine 5700 Wi-Fi 6 (802.11ax) Indoor AP
AirEngine 5762-12SW fits an 86 mm wall box and combines two Gigabit ports with dual-band 2x2 Wi-Fi 6. It uses 802.3af PoE and includes BLE 5.0, but has no USB or PoE output.
Condition: New Factory Sealed
Huawei AirEngine 5760-22W combines a 2.5GE copper uplink, four GE downlinks and GE/10GE SFP+. Optical uplink use and PoE input mode change radio capacity and peripheral power availability.US$ 400.00
Condition: New Factory Sealed
Huawei AirEngine 5760-51 offers 5GE copper and RTU-dependent Wi-Fi 6 radio layouts. Verify the hardware code, loaded RTU and power mode; 802.3at limits the 5GE uplink to 2.5GE or below.US$ 279.00
Condition: New Factory Sealed
AirEngine 5761R-11 is an AirEngine 5700 outdoor Wi-Fi 6 AP with directional antennas, Gigabit copper and Gigabit SFP. Under 802.3af, only one wired interface is active, with optical priority.US$ 300.00
Condition: New Factory Sealed
AirEngine 5761S-11 is a single-Gigabit-port indoor Wi-Fi 6 AP with dual-band 2x2 radios and BLE 5.2. Check PoE mode before using USB; 802.3af imposes feature restrictions.US$ 134.00
Condition: New Factory Sealed
AirEngine 5761S-11W combines five Gigabit Ethernet ports, a separate RJ-45 pass-through pair and dual-band 2x2 Wi-Fi 6. USB is disabled with 802.3af input; this model has no PoE output.US$ 134.00
Condition: New Factory Sealed
AirEngine 5762S-11SW has one Gigabit Ethernet port and uses up to 11 W from 802.3af PoE. This wall-box Wi-Fi 6 AP includes BLE 5.0 but no second Ethernet socket, USB or PoE output.US$ 134.00
Condition: New Factory Sealed
AirEngine 5762S-12SW provides one Gigabit uplink and one downlink in an 86 mm wall plate. Confirm standalone host 50084977 versus a multi-AP kit, and distinguish the 2.975 Gbit/s radio rate from wired throughput.US$ 114.00
Condition: New Factory Sealed
AirEngine 5762-12SW fits an 86 mm wall box and combines two Gigabit ports with dual-band 2x2 Wi-Fi 6. It uses 802.3af PoE and includes BLE 5.0, but has no USB or PoE output.US$ 118.00
Condition: New Factory Sealed
AirEngine 5761-12W provides wall-plate Wi-Fi 6 and up to 11 W PoE output. Check input power carefully: 802.3af disables USB and PoE output, while 802.3at allows only one at a time.Request current pricing
Condition: New Factory Sealed
AirEngine 5761S-10W is a dual-band 2x2 Wi-Fi 6 wall-plate AP with five Gigabit ports. It accepts 802.3af PoE or 12 V DC, but provides no PoE output or Bluetooth BLE.US$ 124.00
Condition: New Factory Sealed
AirEngine 5762-13W is a Huawei Wi-Fi 6 wall-plate access point with simultaneous 2.4 GHz and 5 GHz radios, each using 2×2 MIMO and two spatial streams. Huawei specifies 802.3af by default and 802.3at when USB is required.US$ 134.00
Condition: New Factory Sealed
AirEngine 5762S-11 Dimensions without packaging (H x W x D) [mm(in.)]: Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.); Dimensions with packaging (H x W x D) [mm(in.)]: 95 mm x 280 mm x 250 mm (3.74 in. x 11.02 in. x 9.84 in.); Weight without packaging [kg(lb)]: 0.510 kg (1.124 lb).US$ 176.00
Condition: Condition confirmed by quotation
AirEngine 5761-11WD is a Wi-Fi 6 remote unit for Huawei agile distributed WLAN deployments. It combines dual-band 2x2 radios with one GE uplink, four GE downlinks and two RJ45 pass-through connections.US$ 134.00
Condition: Condition confirmed by quotation
AirEngine5761R-11E is an outdoor Wi-Fi 6 access point in the AirEngine 5700 family. Huawei lists selectable 2.4 GHz plus 5 GHz or dual-5 GHz operation, an IP68 enclosure, and optical and Gigabit electrical uplink options.US$ 300.00
Condition: New Factory Sealed
Huawei AirEngine 5760-22WD (part 02353KDQ) is an indoor Wi-Fi 6 wall-plate access point with smart antennas, a 2.5GE copper PoE uplink, a 1G/10G SFP+ optical uplink, four GE downlinks including one PoE output, and an RJ45 pass-through pair.US$ 260.00
Condition: New Factory Sealed
Huawei AirEngine 5761RS-11 is an IP68 outdoor Wi-Fi 6 access point with built-in directional antennas, concurrent 2.4 GHz and 5 GHz 2x2 radios, a 1.775 Gbit/s maximum device rate, one GE copper PoE input and one Gigabit SFP optical uplink.US$ 300.00
Condition: New Factory Sealed
Huawei AirEngine 5761S-13 is an indoor dual-radio Wi-Fi 6 access point with four spatial streams, a 1.775 Gbit/s maximum device rate, one GE uplink, built-in smart antennas, USB expansion and BLE 5.2. Huawei specifies 15.3 W maximum consumption excluding USB and up to 27 dBm combined transmit power per band, subject to local regulation.US$ 300.00
Condition: New Factory Sealed
Huawei AirEngine 5761S-12 is an indoor dual-radio Wi-Fi 6 access point with 2x2 operation on both 2.4 GHz and 5 GHz, four total spatial streams, a maximum device rate of 1.775 Gbit/s, one GE uplink, a built-in smart antenna, USB expansion and BLE 5.2.US$ 185.00
Condition: New Factory Sealed
AirEngine 5761S-21 part 02354VQL is a Huawei indoor Wi-Fi 6 access point using 2.4 GHz 2x2 and 5 GHz 4x4 radios with smart antennas. It provides 2.5GE PoE input, a secondary GE port, USB and Bluetooth; the usable interface and radio set changes under 802.3af power.US$ 309.00
Condition: New Factory Sealed
AirEngine 5761-21 (part 02354VQK) is a Huawei indoor 802.11ax access point with 2+4 dual-band radios, smart antennas, USB and Bluetooth. Huawei documents a 2.5GE/PoE input interface plus GE, USB and 12 V DC connections; region and deployment dependencies require project verification.US$ 268.00
