AP5010SN-GN-DC Overview
AP5010SN-GN-DC is Huawei part 02358263
Huawei AP5010SN-GN-DC is the exact adapter bundle identified by part number 02358263. Huawei describes it as a general indoor 802.11n access point with a 2 × 2 single-frequency radio, built-in antennas and an AC/DC adapter.
Single-frequency boundary
This order line is not the dual-frequency AP5010DN-AGN. Do not claim simultaneous dual-band operation, 802.11ac or Wi-Fi 6 capability. Confirm that a single-frequency legacy AP fits the client, coverage and interference plan.
Bundle distinction
Huawei separately lists the AP5010SN-GN mainframe without an adapter and the AP5010SN-GN-DC bundle with an AC/DC adapter. Match the complete suffix and part number during quotation, receiving and replacement.
Compatibility and acceptance
Huawei support records place AP5010SN-GN in the AP5000 family and require model/software compatibility with the managing AR or WLAN platform. Record part number, serial, firmware, controller or gateway release, adapter and mounting contents; then test adoption, radio service, SSID security and recovery.
Official sources: Huawei exact part-number table; Huawei AP5010SN-GN support record; Huawei image record for part 02358263.
AP5010SN-GN-DC Specification
| Exact model / SKU | AP5010SN-GN-DC |
| Exact order code | AP5010SN-GN-DC |
| Huawei part number | 02358263 |
| Environment | General indoor AP |
| Wireless profile | 802.11n, 2 x 2 single-frequency |
| Antennas | Built-in |
| Included power item | AC/DC adapter |
| Not equivalent to | AP5010DN-AGN dual-frequency model, 802.11ac or Wi-Fi 6 |
| Compatibility gate | Verify AR/WLAN platform and software release |
| Acceptance | Part number, serial, firmware, adapter, mounting and radio service |
| Source match | Huawei's official product list maps BOM 02358263 to AP5010SN-GN-DC and explicitly describes the 802.11n, indoor, 2x2 single-frequency, integrated-antenna and adapter bundle |
| Official manufacturer reference | Huawei official exact BOM record for AP5010SN-GN-DC |
AP5010SN-GN-DC Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
AP5010SN-GN-DC FAQ
What is AP5010SN-GN-DC?
Huawei AP5010SN-GN-DC 02358263 Single-Frequency Indoor AP is a HUAWEI AP5000 Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What wireless profile is listed for AP5010SN-GN-DC?
For AP5010SN-GN-DC, the manufacturer specification lists wireless profile as 802.11n, 2 x 2 single-frequency.
What antennas is listed for AP5010SN-GN-DC?
For AP5010SN-GN-DC, the manufacturer specification lists antennas as Built-in.
What are the power requirements for AP5010SN-GN-DC?
For AP5010SN-GN-DC, the manufacturer specification lists included power item as AC/DC adapter.
Is AP5010SN-GN-DC available from YYST Global?
Contact YYST Global to confirm availability for AP5010SN-GN-DC, the required quantity, exact configuration, delivery destination and current lead time before ordering. A product listing does not confirm current inventory.
Related products
Related AP5010SN-GN-DC
Huawei AP5010DN-AGN-DC Access Point Bundle
Huawei AP5010DN-AGN-DC is the AP5010DN-AGN access-point bundle mapped to part number 02358264 in Huawei’s Hardware Center. Its order description includes an AC/DC adapter, an indoor 802.11n dual-frequency 2×2 AP and a built-in antenna. The mainframe-only 02355547 is a separate order without an adapter. For the AP5010DN-AGN hardware inside the bundle, Huawei documents Gigabit ETH/PoE and console connections, 12 V ±10% DC or IEEE 802.3af/at input, and a 9.5 W maximum-consumption reference. Verify the supplied adapter and regional configuration. The image is a shared manufacturer interface illustration, not a photograph of the offered bundle contents.
Huawei AP5010DN-AGN Indoor Access Point

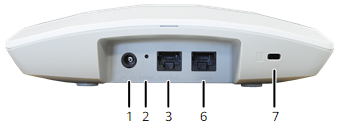

Huawei AP5010DN-AGN is an indoor 802.11n access point. Its manufacturer mainframe order reference is 02355547: dual-frequency 2×2, a built-in antenna and no AC/DC adapter. The hardware illustration for this model group identifies an ETH/PoE Gigabit Ethernet connection and a console port. The basic specification table assigns AP5010DN-AGN a 9.5 W maximum-consumption reference and allows 12 V ±10% DC or IEEE 802.3af/at power. The 02358264 bundle is a separate ordering line with an AC/DC adapter. The displayed image is Huawei’s shared interface illustration for the named AP3010/AP5010/AP6010 models, not a supplied-unit photograph.
AP5050DN-S

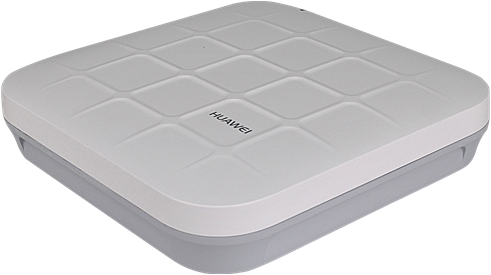

Huawei AP5050DN-S is an indoor 802.11ac Wave 2 access point with simultaneous 2.4 GHz 3×3 and 5 GHz 4×4 operation. Its two Gigabit Ethernet interfaces support the documented link-aggregation and traffic-load-balancing features; GE0/PoE accepts PoE input and GE1 is the second data port. Power input is 12 V DC or IEEE 802.3at, with a 19.7 W AP consumption reference excluding USB output. It has USB2.0 storage expansion and supports Fat, Fit and cloud management modes.
AP5030DN

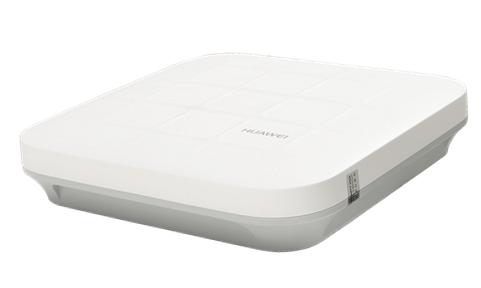

Huawei AP5030DN is an indoor 802.11ac access point with 3×3 MIMO, simultaneous 2.4 GHz/5 GHz service and built-in omnidirectional antennas. It provides a GE0/PoE input and a separate GE1 Gigabit Ethernet data port. The exact model supports a Fit AP plus bridge hybrid arrangement. Huawei lists DC 12 V or IEEE 802.3af/at and a 12.95 W maximum consumption reference, qualified by local rules. Fit and Fat user references are 256 and 64; the 2.4 GHz radio does not support 40 MHz in FCC regions.
AP5030DN-S
Huawei AP5030DN-S is an indoor dual-band IEEE 802.11ac access point with 3×3 MIMO. It serves 2.4 GHz and 5 GHz simultaneously through built-in omnidirectional antennas and uses one Gigabit GE0/PoE wired connection. Huawei lists up to 256 users in Fit mode and 64 in Fat mode, so the management choice changes the reference client limit. Power is supplied through IEEE 802.3af/at PoE or 12 V DC; confirm software, country configuration and accessories with the quote.
AP5130DN

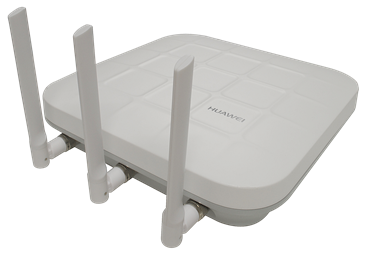

Huawei AP5130DN is an indoor 802.11ac access point with 3×3 MIMO, simultaneous 2.4 GHz/5 GHz service and external dual-band antennas using RP-SMA-K connections. It provides GE0/PoE and GE1 Gigabit Ethernet ports; only GE0/PoE is identified as accepting PoE input. Huawei lists 12 V DC or IEEE 802.3af/at power and a 12.95 W maximum consumption reference. Fit and Fat user references differ: up to 256 and 64 respectively. In FCC regions, the 2.4 GHz radio does not support 40 MHz bandwidth.
