Huawei AP2030DN-S Wall-Plate Access Point

Match the supplied mainframe to reference 50083605

Huawei’s AP2030DN-S ordering table identifies 50083605 as the mainframe, with 11ac, dual-band 2×2 and a built-in antenna. Use that row to verify the exact model on the quotation and received label. It does not establish a regional power package, included software entitlement or a different AP2030 variant. Keep the S suffix with the manufacturer reference throughout receiving and deployment records.

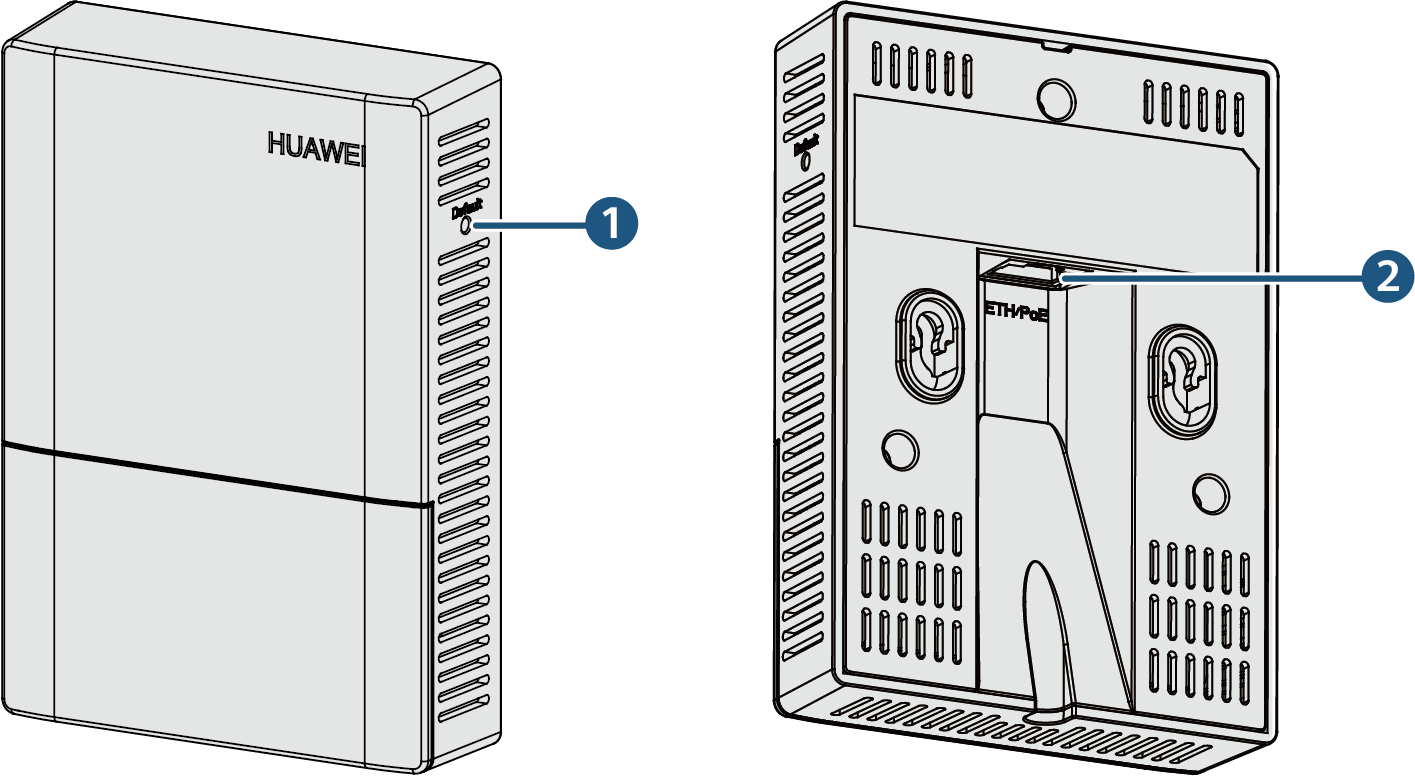

One Fast Ethernet connection defines the wired design

The exact device-structure table lists ETH/PoE as a 10/100M auto-sensing port connecting to the central AP and accepting PoE input. It is not described as a Gigabit uplink or as a row of room-facing switched sockets. Check whether this single Fast Ethernet connection meets the existing room and central-device design before substituting it for a wall AP that offers several Ethernet ports.

Verify the complete cable run against the documented limit

Huawei specifies Cat5e or higher cabling and a maximum cable length of 100 m for ETH/PoE. Review the actual installed path and termination rather than relying solely on the cable label. Acceptance should check both link negotiation and device operation through the intended PoE source. A faster central switch does not change the AP’s documented 10/100M interface.

Select power from the AP2030DN-S specification

The basic-specification table lists IEEE 802.3af PoE input and 5.1 W maximum consumption, qualified by local laws and regulations. It does not list a 12 V or 48 V DC input or a powered output socket for this model. Confirm the appropriate power source and the supplied accessory scope on the quotation. Do not infer a DC connection from another wall AP’s adapter or a general adapter note.

Wall fit requires the enclosure measurements as well as the plate design

The overview describes an 86 × 86 mm plate, a sliding panel, built-in antennas and a hidden indicator. The basic table separately gives overall H × W × D of 26 × 86 × 120 mm and a reference weight of 0.1 kg. Use the mounting format and the full enclosure dimensions for different checks: junction-box compatibility, recess and cable clearance, and the fixing arrangement for the supplied revision.

Confirm the management path without adding unsupported radio claims

Huawei’s overview describes automatic AC discovery and configuration and real-time management, while its structure table names the central-AP connection. Confirm the relevant controller or central equipment, software and intended topology. The ordering row establishes 802.11ac dual-band 2×2; the cited AP2030DN-S references do not establish Wave 2, MU-MIMO, a cloud entitlement or arbitrary standalone operation. Wireless capabilities from another AP2000 member are not assigned to this mainframe.

Use reset and environmental checks as part of commissioning

The Default button restores factory settings and restarts the device when held for more than three seconds. Schedule that action deliberately during commissioning because it resets configuration. Huawei lists 128 MB DDR2 and 32 MB NOR Flash, operating 0°C to 40°C at −60–1800 m, with 1°C upper-limit derating per 300 m above 1800 m through 5000 m, and 5–95% non-condensing humidity. Test the intended WLAN service after registration and any planned reset; the listed memory is not a client-capacity guarantee.

Document/Firmware Download

• Huawei AP2030DN-S exact wall-plate and management overview
• Huawei AP2030DN-S ETH/PoE interface, Cat5e and 100 m cabling instructions
• Huawei AP2030DN-S 802.3af, 5.1 W and enclosure specification
• Huawei AP2030DN-S exact mainframe ordering row 50083605

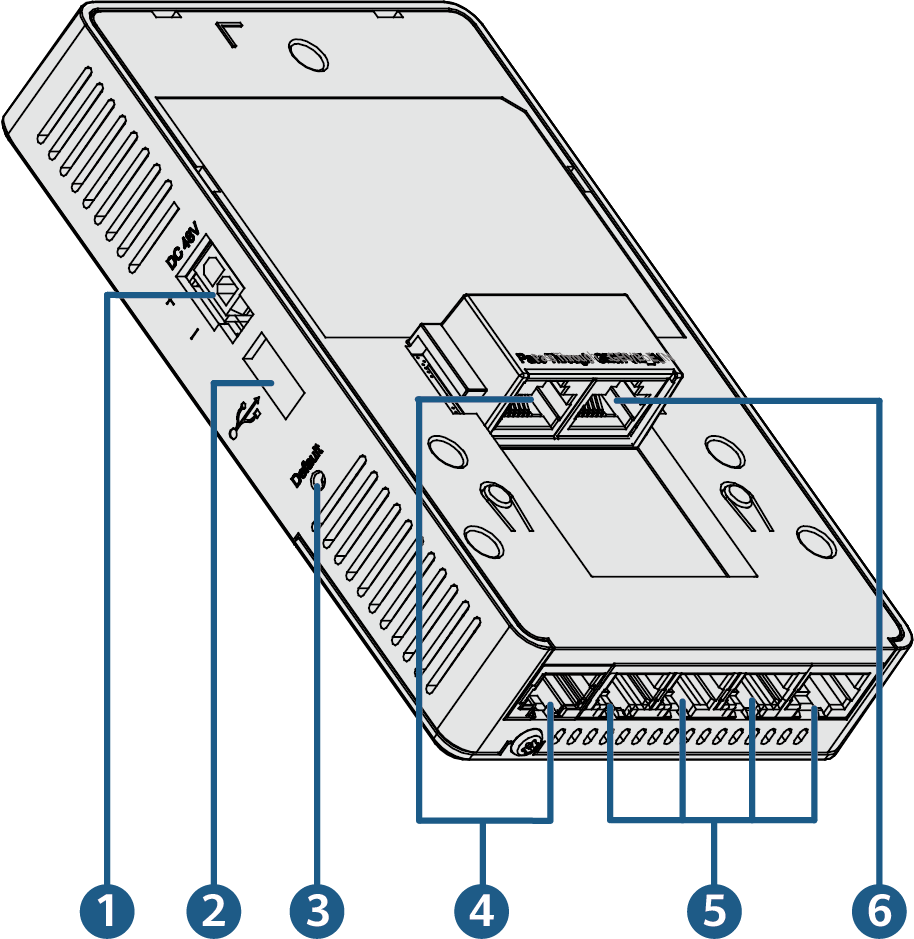

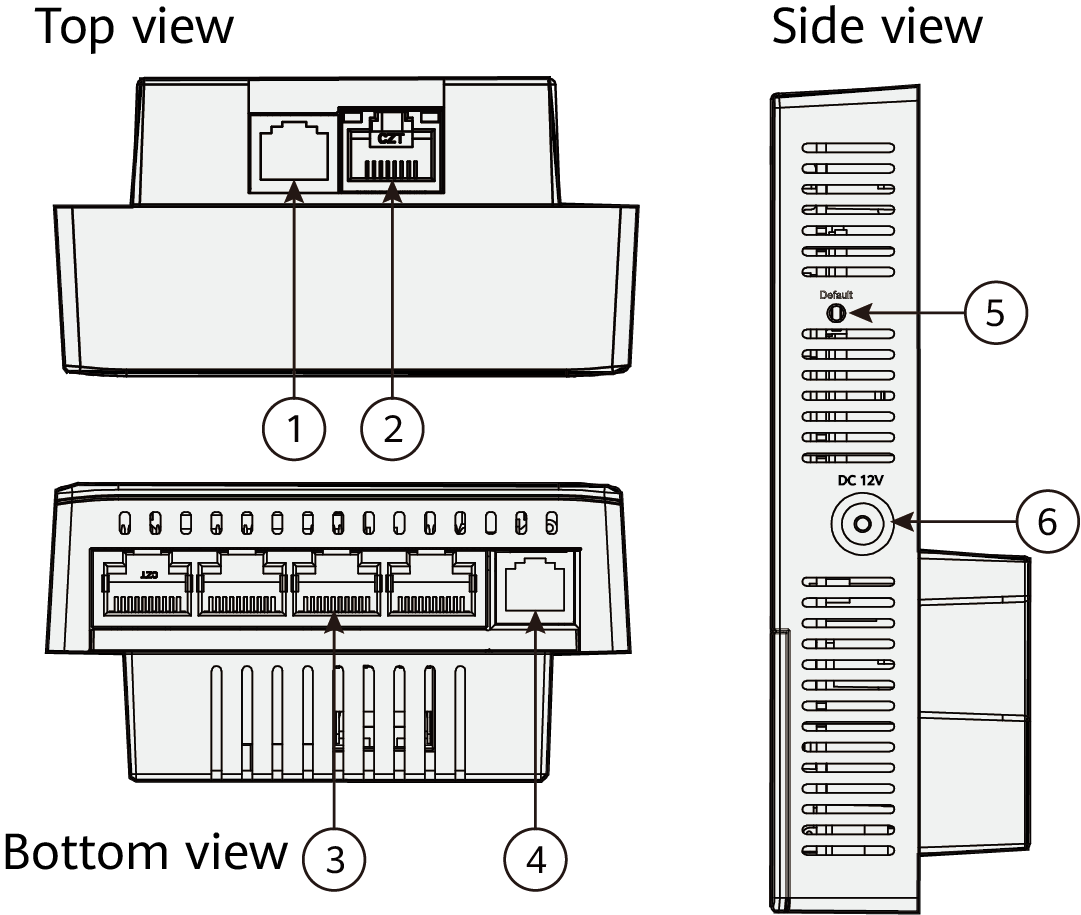

• Shared manufacturer wall-plate interface illustration used in the AP2030DN-S chapter (Series)
