FN-CABLE-SFP+3 Buying Guide
Fortinet FN-CABLE-SFP+3 10 GE SFP+ Passive DAC Cable 3 m is listed by YYST Global for buyers looking for FORTINET Transceiver Modules. FN-CABLE-SFP+3 is Fortinet's 3 m passive direct-attach copper cable for 10 GE SFP+ links. The fixed twinax assembly includes both SFP+ transceiver ends and is specified for... The listed condition is New Factory Sealed. The reference price is US$ 89.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: FN-CABLE-SFP+3
- Brand: FORTINET
- Category: Fortinet Transceiver Modules
- Condition: New Factory Sealed
- Reference price: US$ 89.00
FN-CABLE-SFP+3 Overview
FN-CABLE-SFP+3 Three-Meter Passive DAC
FN-CABLE-SFP+3 provides a 10GBase-CR connection between nearby SFP+ ports without separate optical modules or fiber patch cords. Fortinet's official table identifies a 10 Gbps data-link rate, 3 m fixed cable length, passive twinax copper construction and power dissipation below 0.1 W.
Three-Meter Deployment Fit
The 3 m assembly gives more routing allowance than FN-CABLE-SFP+1 while retaining 30 AWG conductors, a 22 mm published bend radius and a 4.5 mm cable diameter. It is intended for short equipment-to-equipment paths where the complete installed route fits within 3 m. FN-CABLE-SFP+5 is the separate 5 m order code and uses a different cable geometry.
Purchase and Installation Checks
- Measure the routed path, including vertical and horizontal cable management, before ordering the fixed 3 m length.
- Confirm that both target systems support the Fortinet cable in their SFP or SFP+ slots.
- Allow at least the published 22 mm bend radius and avoid tension at either attached transceiver end.
- Order FN-CABLE-SFP+1 or FN-CABLE-SFP+5 when the required physical route is 1 m or 5 m.
FN-CABLE-SFP+3 Specification
| Exact model / SKU | FN-CABLE-SFP+3 |
| Product type | Fortinet passive direct-attach twinax cable |
| Protocol | 10GBase-CR |
| Ethernet data-link rate | 10 Gbps |
| Interfaces | SFP+ to SFP+ |
| Fixed cable length | 3 m |
| Transceiver ends | Included |
| Power dissipation | Less than 0.1 W |
| Operating temperature | 0 to 70 degrees C |
| Minimum bend radius | 22 mm (30 AWG) |
| Cable diameter | 4.5 mm |
| Source match | Exact FN-CABLE-SFP+3 specification column and ordering row in Fortinet's current transceiver data sheet |
| Official manufacturer reference | Fortinet Transceivers official data sheet |
FN-CABLE-SFP+3 Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
FN-CABLE-SFP+3 FAQ
What is FN-CABLE-SFP+3 used for?
Fortinet FN-CABLE-SFP+3 10 GE SFP+ Passive DAC Cable 3 m is a FORTINET accessory or component in the Transceiver Modules category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with FN-CABLE-SFP+3?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with FN-CABLE-SFP+3?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of FN-CABLE-SFP+3?
The current reference price for FN-CABLE-SFP+3 is US$ 89.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related FN-CABLE-SFP+3

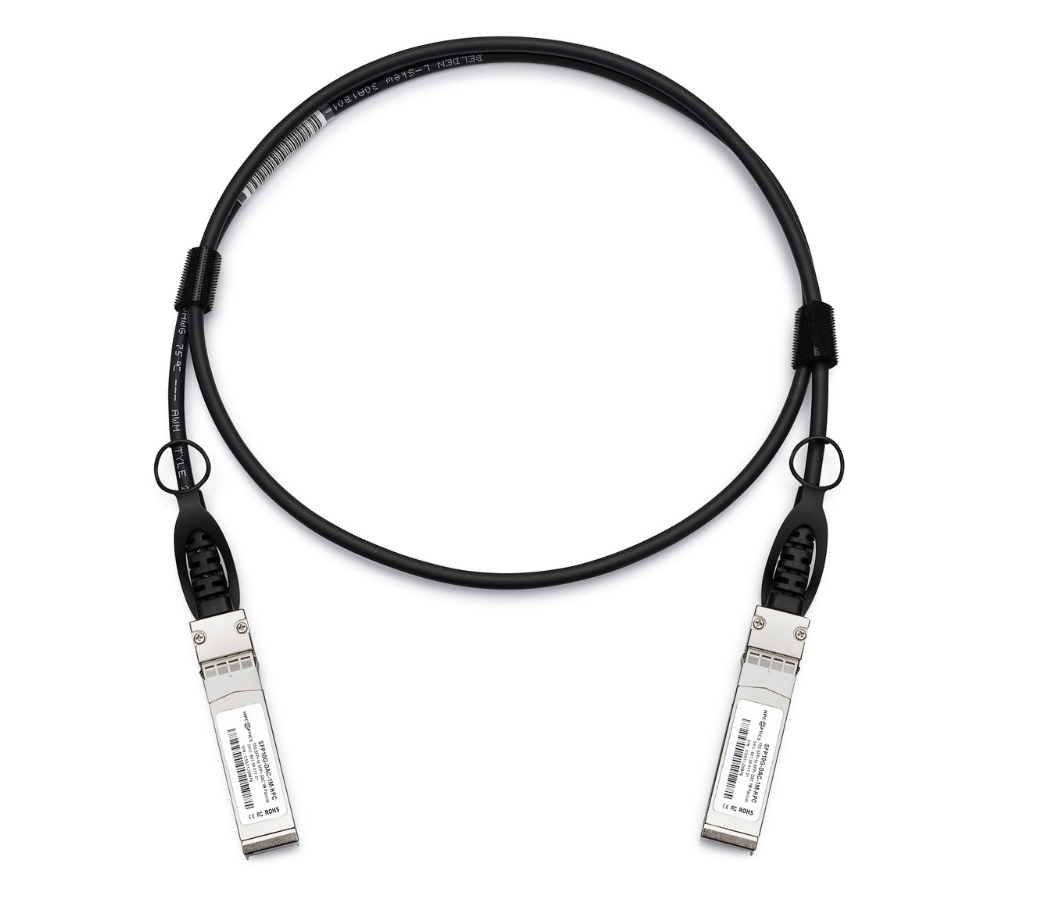

Fortinet FN-CABLE-SFP+1 10 GE SFP+ Passive DAC Cable 1 m
