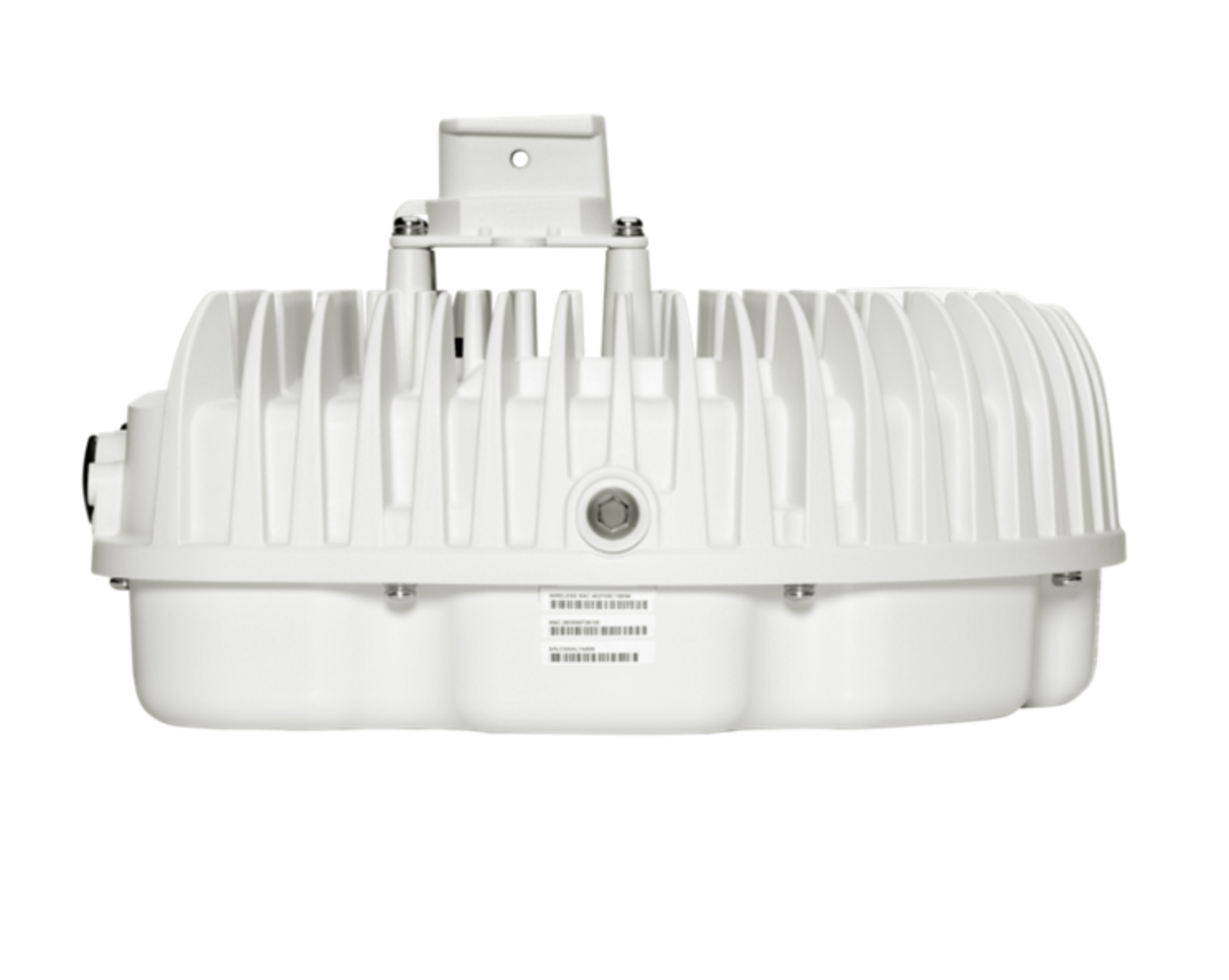

ARUBA R7T28A HPE 570 Series Outdoor Access Points

Product Number

R7T28A

Differentiator

Available in Japan only TAA

Certifications

Wi-Fi Alliance

Bluetooth SIG

Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)

Input voltage

IEEE 802.3 at PoE, or direct AC power (via optional power supply)

AC power interface: 110-240V (requires AP-AC-MLX power connector kit)

Regulatory

FCC/ISED  CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1

IEC 60950-22

IEC/EN60601-1-2 EN 50155

Wi-Fi antenna

Built in directional antennas (H, V, and +/-45 polarized), 5Ghz Antennas 5.2dBi

uncorrelated avg (6.6dBi peak), 2.4Ghz Antennas 5.7dBi uncorrelated avg (5.8dBi peak), BLE Antenna 6.3dBi peak

Connectivity, standard

Wi-Fi 6 (IEEE 802.11ax)

Mounting

Optional mounting kits available, see the ordering guide.

Power consumption

The AP supports direct AC power and Power over Ethernet (802.3bt PoE; on port E0 only).

When both AC and PoE power sources are available, AC power takes priority over PoE.

Power sources are sold separately.

Maximum (worst-case) power consumption:

AC powered: 71 W (802.3af/at*).

PoE powered (802.3bt Class 6): 49.5 W (802.3af PSE only).

PoE powered (802.3bt Class 5 with LLDP): 35.5 W (no PSE).

PoE powered (802.3at, IPM disabled): 25.5 W (1 chain at 2.4 Ghz, 3 chains at 5 Ghz, no PSE).

Maximum (worst-case) power consumption in idle mode: 9.2 W (POE) or 10.8 W (AC).

Maximum (worst-case) power consumption in deep-sleep mode: 3.0W (PoE) or 4.4W (AC).

NOTE: *Full 802.3 at power may not be available at maximum temperature.

Radio coverage

Outdoor-hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO   Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) Maximum data rates of 4.8 Gbps in the 5 GHz band and 575 Mbps in the 2.4 GHz band

Warranty

Limited lifetime warranty. See the warranty duration.

Product dimensions

17.4 x 30.2 x 30 cm (H x W x D)

Weight

4.51 kg
