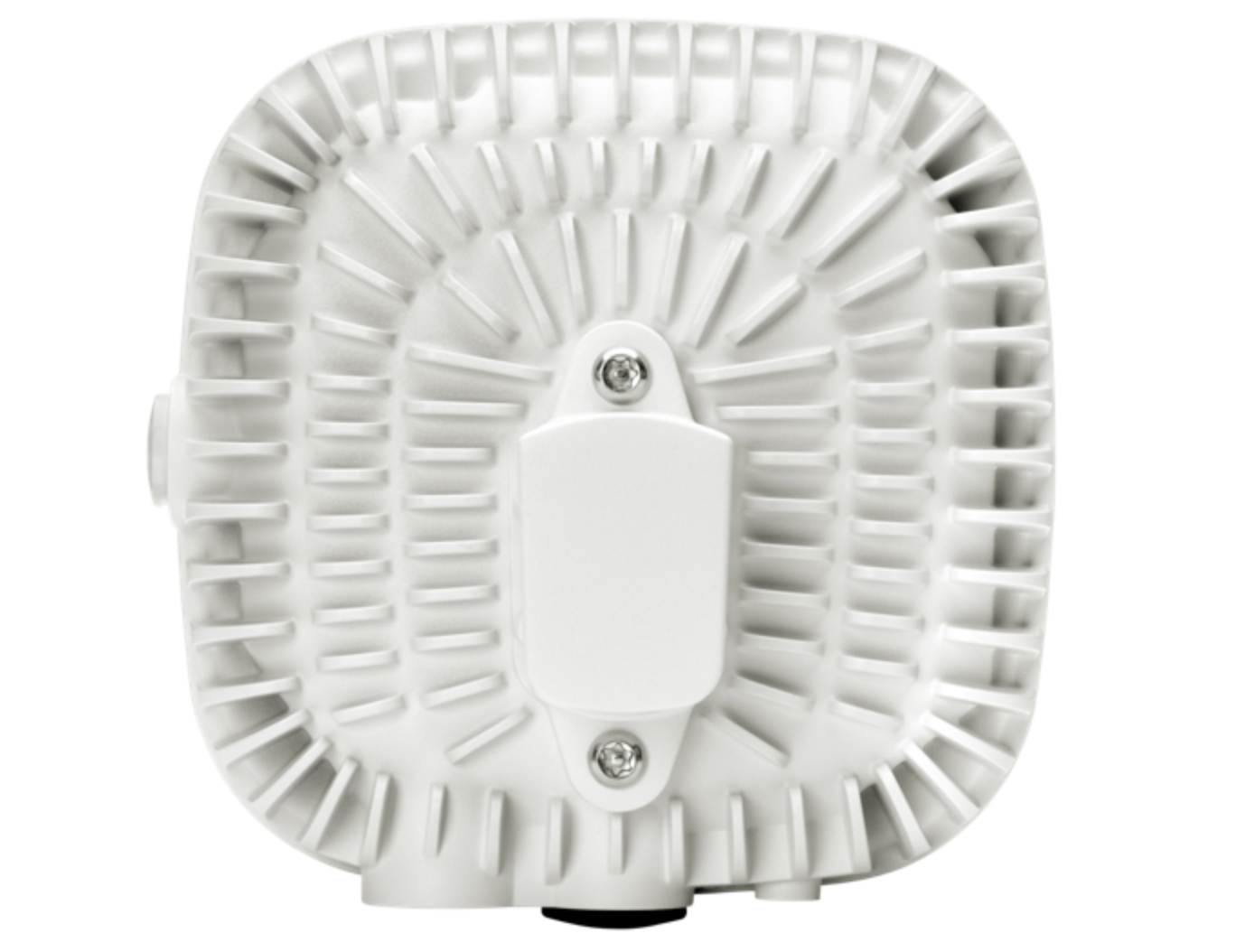

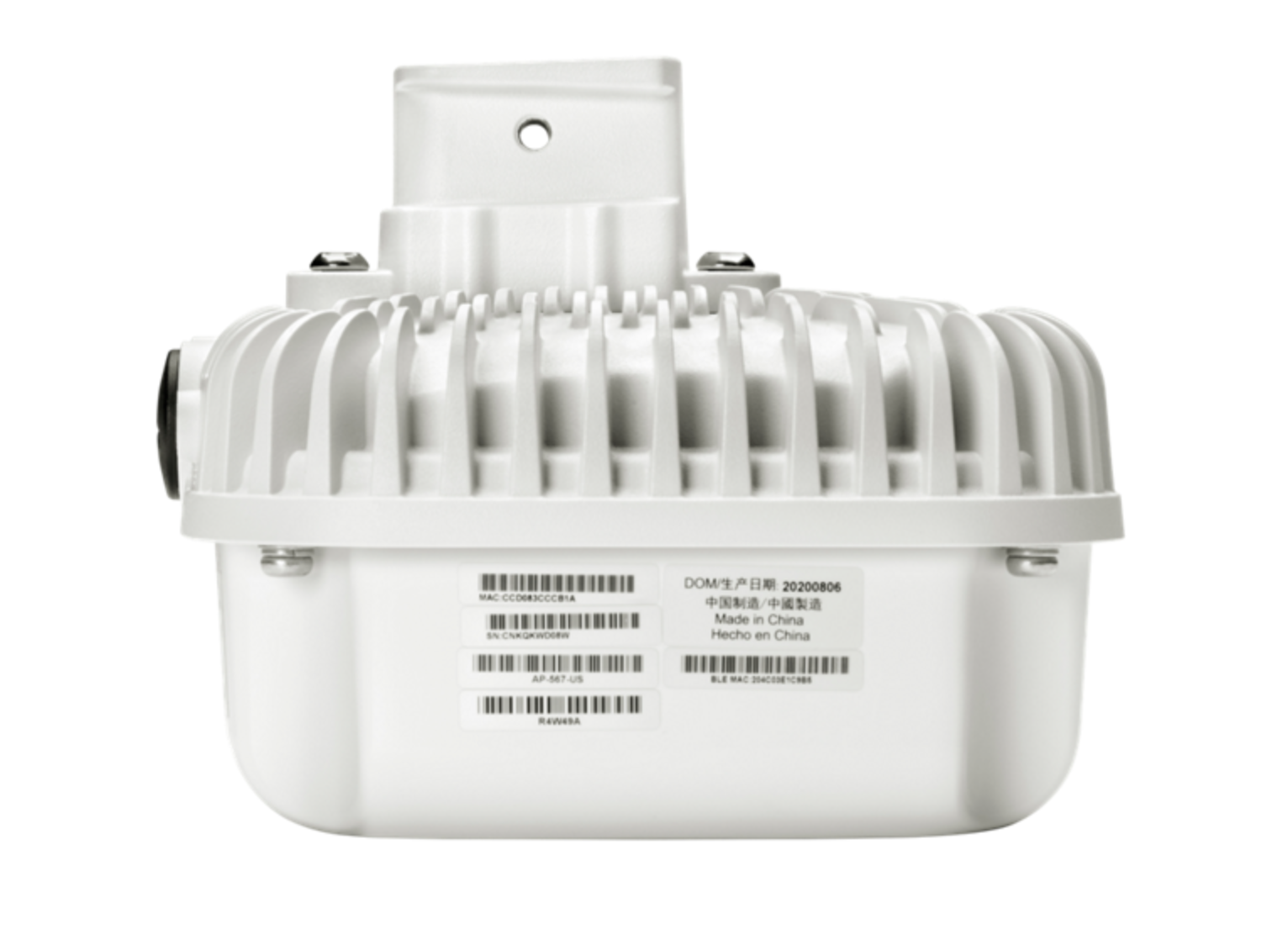

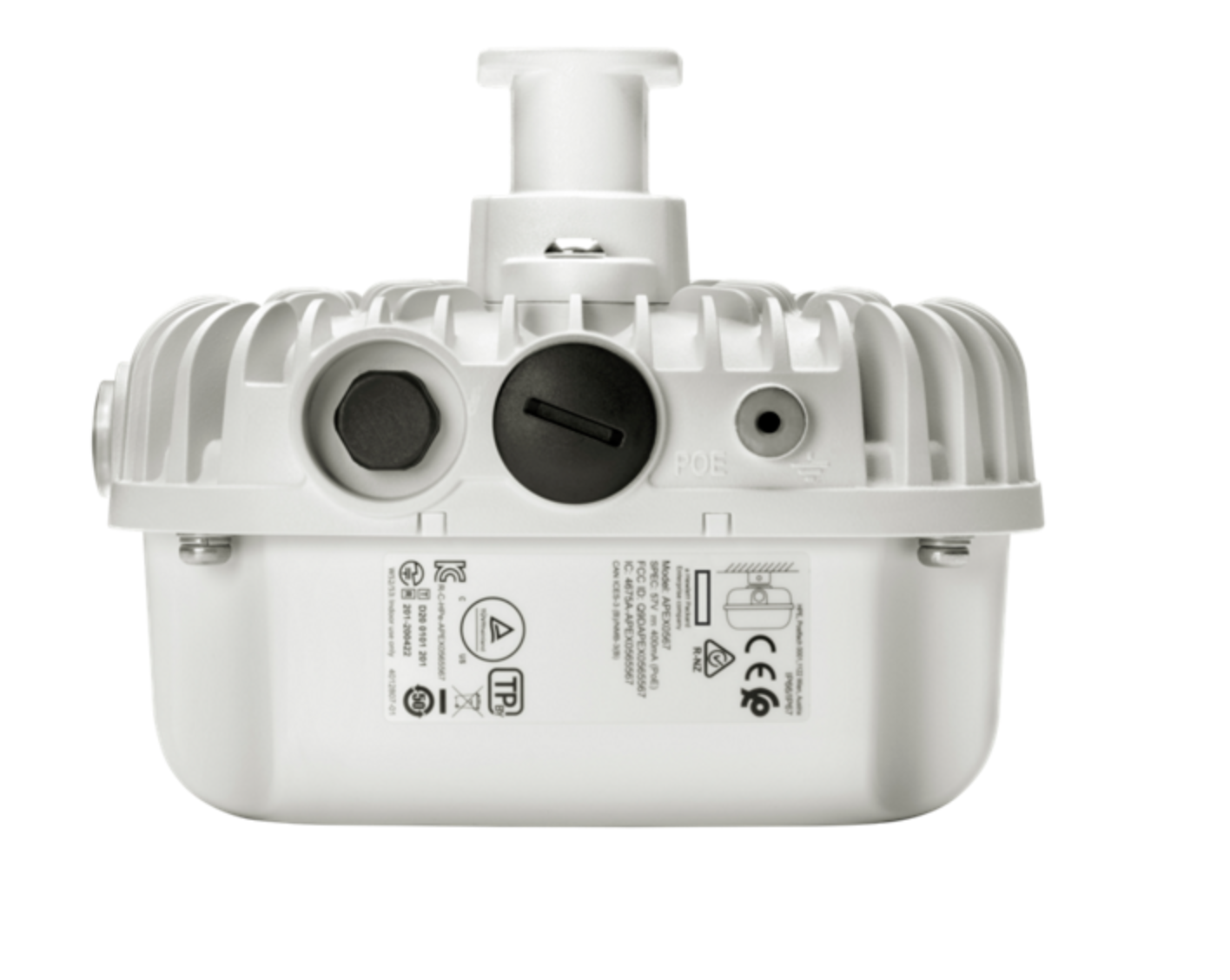

ARUBA R4W56A HPE 570 Series Outdoor Access Points
- 763 412 7282
- +86 010 69614620
R4W56A Buying Guide
R4W56A-HPE Aruba Networking AP‑567 Wi-Fi 6 Outdoor AP is listed by YYST Global for buyers looking for ARUBA HPE Aruba 570 Series Outdoor Access Points. R4W56A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 400.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: R4W56A
- Brand: ARUBA
- Category: HPE Aruba 570 Series Outdoor Access Points
- Condition: New Factory Sealed
- Reference price: US$ 400.00
R4W56A Overview
R4W56A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: R4W56A-HPE Aruba Networking AP‑567 Wi-Fi 6 Outdoor AP. Category: HPE Aruba 570 Series Outdoor Access Points. Condition: New Factory Sealed.
R4W56A Specification
| Datasheet series | HPE Aruba Access Points |
| Exact model | R4W56A |
| Product role | Enterprise wireless access point; confirm radio generation, antenna, regulatory domain and mounting kit |
| Management check | Confirm Aruba Central, controller, AirWave or local management requirements |
| Procurement check | Confirm country domain, accessories, license/support term and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | HPE Aruba access points official product page |
Product Number | R4W56A |
Differentiator | Built-in 90°H x 90°V Directional Antennas 5 GHz Antennas 6.8 dBi 2.4 GHz Antennas 7.1 dBi BLE/802.15.4 Antennas 3.0 dBi Available in Israel only TAA certified |
Certifications | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED™ ac (with wave 2 features) Wi-Fi CERTIFIED Location™ |
Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration |
Wi-Fi antenna | Built-in 90°H x 90°V directional antennas with 6.7 dBi gain, max, for 5 GHz antennas and 7.0 dBi gain, max, for 2.4 GHz antennas |
Connectivity, standard | Wi-Fi 6 (IEEE 802.11ax) Bluetooth 5 and 802.15.4 radio 2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity |
Ports | E0: 10/100/1000BASE-T (RJ-45) |
Mounting | For use with optional mounting kit, see the ordering guide. |
Power consumption | Maximum (worst-case) power consumption: 15.6W Maximum (worst case) power consumption in idle mode: 4.2W Maximum (worst case) power consumption in deep-sleep mode: 1.7 Power sources sold separately |
Radio coverage | AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) |
Warranty | Limited lifetime warranty. See the warranty duration. |
Product dimensions | 11 x 16.5 x 16.5 cm |
Weight | 1.09 kg |
R4W56A is from HPE Aruba Networking AP 567 (IL) 802.11ax Dual 2x2 Radio Integ Directional Antennas TAA Outdoor AP. Providing cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. Purpose to built to fit in the harshest outdoor environments and extreme temperatures (-40°C to +65°℃). It delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors with the help of Bluetooth 5 and 802.15.4/Zigbee radios,and maximum aggregate data rate of 1.49 Gbps.
R4W56A Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
R4W56A FAQ
What is R4W56A?
R4W56A-HPE Aruba Networking AP‑567 Wi-Fi 6 Outdoor AP is a ARUBA HPE Aruba 570 Series Outdoor Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of R4W56A?
The listed datasheet series for R4W56A is HPE Aruba Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of R4W56A?
The listed exact model for R4W56A is R4W56A. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is R4W56A available from YYST Global?
YYST Global can help check availability, lead time and configuration for R4W56A. Contact the sales team before ordering to confirm current stock.
What is the price of R4W56A?
The current reference price for R4W56A is US$ 400.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
