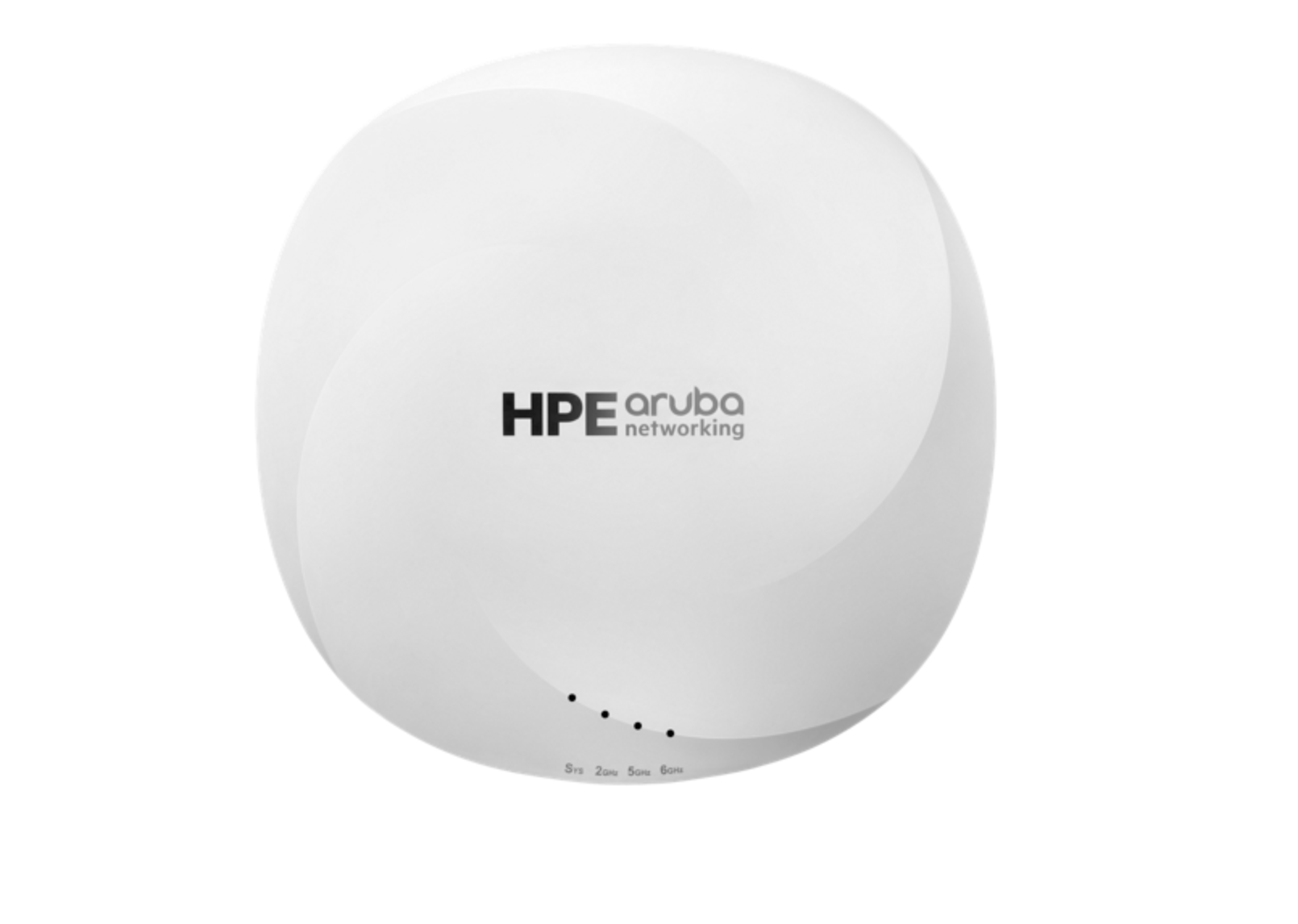

ARUBA R7J55A HPE Wireless

Product Number

R7J55A

Differentiator

Available in US only TAA model

Add Mount Kits

Certifications

UL2043 plenum rating;

Bluetooth SIG;

Ethernet Alliance (PoE, PD device, Class 4);

Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3  Enterprise with CNSA option, Personal (SAE), Enhanced

Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™

Input voltage

The AP supports direct DC power and Power over Ethernet (PoE) on port E0

Regulatory

AP-615 (all models): APIN0615

FCC/ISED

CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

UL/IEC/EN 62368-1

EN 60601-1-1, EN60601-1-2

Wi-Fi antenna

AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8 dBi in 2.4 GHz, 4.5 dBi in 5 GHz and 4.5 dBi in 6 GHz.

Connectivity, standard

Wi-Fi 6E (802.11ax)

Ports

E0: Ethernet wired network ports (RJ-45)

DC power interface: 12 Vdc (nominal, +/- 5%)

USB 2.0 host interface (Type A connector)

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio Visual indicators (four multi-color LEDs)

Reset button: factory reset, LED mode control  (normal/off)

Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot

Mounting

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately)

see the 610 Series ordering guide for details.

Power consumption

Maximum (worst-case) power consumption: DC powered:12.5W/18.2W

POE powered: 14.7W/20.9W

Radio coverage

Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2x2 MIMO

Warranty

Limited lifetime warranty. See the warranty duration guide.

Product dimensions

5.1 x 20.1 x 18.3 x cm

Weight

0.72 kg
