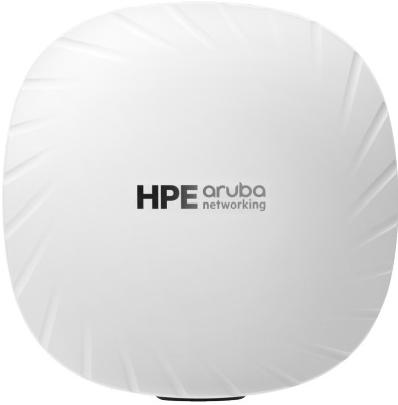

ARUBA JZ354A HPE Wireless

Product Number

JZ354A

Differentiator

Available in Israel only

Certifications

UL2043 plenum rating Bluetooth SIG

WI-FI Alliance:

Wi-Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3

Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband

Wi-Fi CERTIFIED Location™

Regulatory

FCC/ISED  CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1

EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, contact your HPE representative

Wi-Fi antenna

Integrated downtilt omni-directional antennas for 4x4 MIMO in 2.4 GHz with peak  antenna gain of 4.3 dBi, and 8x8 MIMO in 5 GHz with peak antenna gain of 5.8 dBi in 5 GHz.

In tri-radio mode, the peak gain of the antennas for each of the 4x4 5 GHz radios is  5.5 dBi (radio 0L, lower half of 5GHz) and 5.6 dBi (radio 0U, upper half of 5 GHz).    Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

Connectivity, standard

Wi-Fi 6 (IEEE 802.11ax)

Ports

E0, E1: HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps) Serial console interface (proprietary, micro-B USB physical jack)

USB 2.0 host interface (Type A connector)

Mounting

Pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide.

Power consumption

Maximum (worst-case) power consumption (dual-radio operation):

DC powered: 32.6W

PoE powered (802.3bt or dual 802.3at): 38.2W PoE powered (802.3at, IPM disabled): 25.1W

All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power

consumption for the AP is up to 6.0W (PoE powered) or 5.4W (DC powered).

Maximum (worst-case) power consumption in idle mode (dual-radio operation):

15.0W (PoE) or 15.1W (DC)

Maximum (worst-case) power consumption in deep-sleep mode: 3.8W(PoE) or 3.6W (DC)

Radio coverage

AP type: Indoor, dual/tri-radio, 5 GHz and 2.4 GHz 802.11ax 4x4 MIMO

5 GHz radio (dual-radio operation): Eight spatial stream HE80 (or 4SS HE160) MIMO for up to 4.8 Gbps wireless data rate

5 GHz radio (tri-radio operation): Four spatial stream HE80 (or 2SS HE160) MIMO for up to 2.4 Gbps wireless data rate

2.4 GHz radio: Four spatial stream HE40 (HE20) MIMO for up to 1,147 Mbps (574Mbps)
