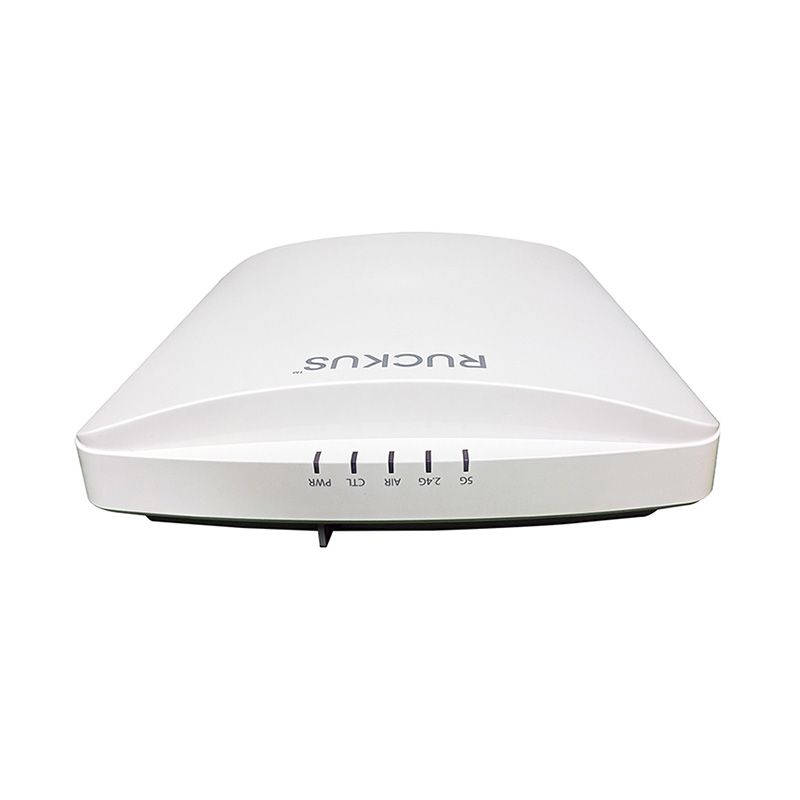

RUCKUS 901-R750-WW00 R750 Access Point
- 763 412 7282
- +86 010 69614620
901-R750-WW00 Buying Guide
901-R750-WW00 RUCKUS R750 Indoor Wi-Fi 6 (802.11ax) Access Point is listed by YYST Global for buyers looking for RUCKUS RUCKUS R750 Access Point. 901-R750-WW00 RUCKUS wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 916.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: 901-R750-WW00
- Brand: RUCKUS
- Category: RUCKUS R750 Access Point
- Condition: New Factory Sealed
- Reference price: US$ 916.00
901-R750-WW00 Overview
901-R750-WW00 is a RUCKUS wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: 901-R750-WW00 RUCKUS R750 Indoor Wi-Fi 6 (802.11ax) Access Point. Category: RUCKUS R750 Access Point. Condition: New Factory Sealed.
901-R750-WW00 Specification
| Datasheet series | Ruckus Wireless Access Points |
| Exact model | 901-R750-WW00 |
| Product role | Enterprise wireless access point; confirm antenna, radio generation, controller/cloud compatibility and mounting kit |
| Management check | Confirm SmartZone, Unleashed, Cloudpath or Ruckus Cloud compatibility as applicable |
| Deployment check | Confirm power, accessories, country domain, firmware and warranty terms before order |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Ruckus wireless access points official product page |
| 901-R750-WW00 | R750 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor. | ||||
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax | ||||
| Supported Rates | · 802.11ax: 4 to 2400 Mbps · 802.11ac: 6.5 to 1732 Mbps · 802.11n: 6.5 to 600 Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
||||
| Supported Channels | 2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165 |
||||
| MIMO | 4x4 SU-MIMO; 4x4 MU-MIMO |
||||
| Spatial Streams | 4 for both SU-MIMO & MU-MIMO | ||||
| Radio Chains and Streams | 4x4:4 | ||||
| Channelization | 20, 40, 80, 160/80+80MHz | ||||
| Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE; WIPS/WIDS |
||||
| Other Wi-Fi Features | · WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/vHotspot · Hotspot 2.0 · Captive Portal · WISPr |
||||
| Antenna Type | BeamFlex+ adaptive antennas with 4000+ unique antenna patterns Horizontal and Vertical polarization (PD-MRC) |
||||
| Antenna Gain (max) | Up to 3dBi | ||||
| Peak Transmit Power (Tx port/chain +Combining gain) | 2.4GHz: 26dBm; 5GHz: 28dBm |
||||
| Frequency Bands | ISM (2.4-2.484GHz); U-NII-1 (5.15-5.25GHz); U-NII-2A (5.25-5.35GHz); U-NII-2C (5.47-5.725GHz); U-NII-3 (5.725-5.85GHz) |
||||
| Peak PHY Rates | · 2.4GHz: 1148 Mbps · 5GHz: 2400 Mbps |
||||
| Client Capacity | Up to 1024 clients per AP | ||||
| SSID | Up to 31 per AP | ||||
| Antenna Optimization | BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PDMRC) |
||||
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
||||
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
||||
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
||||
| Mobility | SmartRoam | ||||
| Diagnostic Tools | Spectrum Analysis SpeedFlex |
||||
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed1 · Standalone · Cloud |
||||
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh | ||||
| IP | · IPv4, IPv6, dual-stack | ||||
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
||||
| 802.1x | · Authenticator & Supplicant | ||||
| Tunnel | · L2TP, GRE, Soft-GRE | ||||
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
||||
| IoT Capbale | Yes | ||||
| Ethernet | · One 2.5Gbps Ethernet port and one 1Gbps Ethernet port · Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable · LLDP |
||||
| USB | 1 USB 2.0 port, Type A | ||||
| Physical Size (L x W x H) | · 23.5cm (L), 20.6cm (W), 6.2cm (H) · 9.3in (L) x 8.1in (W) x 2.4in (H) |
||||
| Weight | · 1.01 kg · 2.23 lbs |
||||
| Mounting | Wall, acoustic ceiling, desk Secure bracket (sold separately) |
||||
| Physical Security | · Hidden latching mechanism · T-bar Torx · Bracket (902-0120-0000) Torx screw & padlock (soldseparately) |
||||
| Operating Temperature | · 0ºC (32ºF) - 50ºC (122ºF) | ||||
| Operating Humidity | Up to 95%, non-condensing | ||||
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac, ax · Passpoint®, Vantage |
||||
| Standards Compliance | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation |
||||
| Location Based Services | SPoT | ||||
| Network Analytics | SmartCell Insight (SCI) | ||||
| Security and Policy | Cloudpath | ||||
| OPTIONAL ACCESSORIES | |||||
| 902-0180-XX00 | PoE Injector (60W) | ||||
| 902-1170-XX00 | Power Supply (48V, 0.75A, 36W) | ||||
| 902-0120-0000 | Spare, Accessory Mounting Bracket | ||||
| 902-1180-XX00 | Multigigabit PoE injector (2.5/5/10)-BaseT PoE port, 60W | ||||
| 902-0195-0000 | Spare, T-bar ceiling mount kit for mounting to flush frame ceiling | ||||
| 2.4GHZ RECEIVE SENSITIVITY (dBm) | |||||||
| HT20 | HT40 | VHT20 | VHT40 | ||||
| MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 |
| -96 | -78 | -93 | -75 | -96 | -78 | -93 | -75 |
| HE20 | HE40 | ||||||
| MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 |
| -96 | -78 | -73 | -67 | -93 | -75 | -70 | -64 |
| 5GHZ RECEIVE SENSITIVITY (dBm) | |||||||||||
| VHT20 | VHT40 | VHT80 | |||||||||
| MCS0 | MCS7 | MCS8 | MCS9 | MCS0 | MCS7 | MCS8 | MCS9 | MCS0 | MCS7 | MCS8 | MCS9 |
| -98 | -80 | -77 | — | -95 | -77 | — | -72 | -92 | -74 | — | -69 |
| HE20 | HE40 | HE80 | |||||||||
| MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 |
| -98 | -80 | -75 | -70 | -95 | -77 | -72 | -67 | -92 | -74 | -69 | -64 |
| 2.4GHZ TX POWER TARGET (PER CHAIN) | |||
| Rate | Pout (dBm) - Full Power | ||
| MCS0 HT20 | 20 | ||
| MCS7 HT20 | 16 | ||
| MCS8 VHT20 | 15 | ||
| MCS9 VHT40 | 14 | ||
| MCS11 HE40 | 12 | ||
| 5GHZ TX POWER TARGET (PER CHAIN) | |||
| Rate | Pout (dBm) - Full Power | ||
| MCS0 HT20 | 22 | ||
| MCS7 VHT40, VHT80 | 19 | ||
| MCS9 VHT40, VHT80 | 17 | ||
| MCS11 HE20, HE40, HE80 | 15 | ||
| POWER CONSUMPTION | |||
| Mode | Operating Characteristics | Max Power Consumption | |
| 802.3af PoE | · 2.4GHz radio: 2x4, 19dBm per chain · 5GHz radio: 2x4, 20dBm per chain · 2nd Ethernet port, onboard IoT & USB disabled |
PoE: 12.54W | |
| 802.3at PoE+ | · Full Functionality · 2.4GHz radio: 4x4, 20 dBm per chain · 5GHz radio: 4x4, 22 dBm per chain · 2nd Ethernet Port, onboard IoT & USB Enabled (3W) |
PoE+ : 22.34W DC Power: 22.69W |
|
901-R750-WW00 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
901-R750-WW00 FAQ
What is 901-R750-WW00?
901-R750-WW00 RUCKUS R750 Indoor Wi-Fi 6 (802.11ax) Access Point is a RUCKUS RUCKUS R750 Access Point product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of 901-R750-WW00?
The listed datasheet series for 901-R750-WW00 is Ruckus Wireless Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of 901-R750-WW00?
The listed exact model for 901-R750-WW00 is 901-R750-WW00. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is 901-R750-WW00 available from YYST Global?
YYST Global can help check availability, lead time and configuration for 901-R750-WW00. Contact the sales team before ordering to confirm current stock.
What is the price of 901-R750-WW00?
The current reference price for 901-R750-WW00 is US$ 916.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
