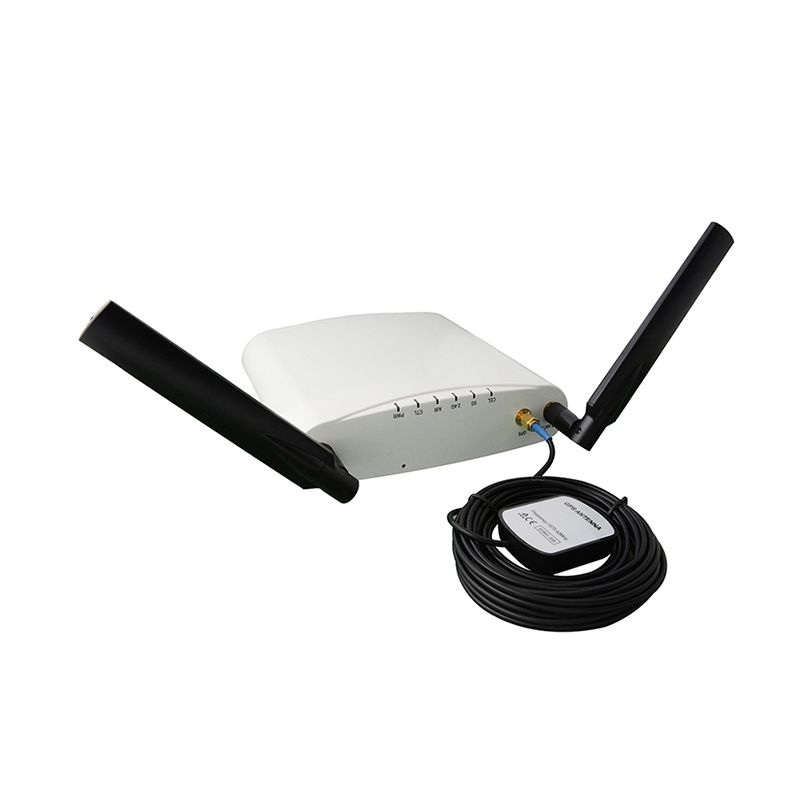

RUCKUS 901-M510-D100 M510 Access Point
- 763 412 7282
- +86 010 69614620
901-M510-D100 Buying Guide
901-M510-D100 RUCKUS M510 Mobile Indoor 802.11ac Wave 2 Access Point is listed by YYST Global for buyers looking for RUCKUS RUCKUS M510 Access Point. 901-M510-D100 RUCKUS wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 300.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: 901-M510-D100
- Brand: RUCKUS
- Category: RUCKUS M510 Access Point
- Condition: New Factory Sealed
- Reference price: US$ 300.00
901-M510-D100 Overview
901-M510-D100 is a RUCKUS wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: 901-M510-D100 RUCKUS M510 Mobile Indoor 802.11ac Wave 2 Access Point. Category: RUCKUS M510 Access Point. Condition: New Factory Sealed.
901-M510-D100 Specification
| Datasheet series | Ruckus Wireless Access Points |
| Exact model | 901-M510-D100 |
| Product role | Enterprise wireless access point; confirm antenna, radio generation, controller/cloud compatibility and mounting kit |
| Management check | Confirm SmartZone, Unleashed, Cloudpath or Ruckus Cloud compatibility as applicable |
| Deployment check | Confirm power, accessories, country domain, firmware and warranty terms before order |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Ruckus wireless access points official product page |
| 901-M510-D100 | · RUCKUS M510, Domain 1 (All Carriers in below countries) · (India, Singapore, Malaysia, Philippines, Thailand, Vietnam, Hong Kong, Europe, Turkey) |
|
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 | |
| Supported Rates | · 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
|
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
|
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
|
| Spatial Streams | · 2 SU-MIMO · 2 MU-MIMO |
|
| Radio Chains and Streams | · 2x2:2 | |
| Channelization | · 20, 40, 80 MHz | |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
|
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
|
| Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides up to 64 antenna patterns per band |
|
| Antenna Gain (max) | Up to 3dBi | |
| Peak Transmit Power (Tx port/chain +Combining gain) | · 2.4GHz: 24dBm · 5GHz: 23dBm |
|
| Minimum Receive Sensitivity2 | · -101dBm (2.4GHz) · -95dBm (5GHz) |
|
| Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
|
| Physical Layer Rates | · 2.4GHz: 300Mbps · 5GHz: 867Mbps |
|
| Client Capacity | · Up to 512 clients per AP | |
| SSID | · Up to 31 per AP | |
| GPS Radio | · GNSS: GPS, GLONASS, BeiDou, Galileo | |
| Antenna Connector | · SMA female | |
| Antenna (included with M510) | · Magnetic mount, 2dBi active GPS antenna, 3m/10ft cable | |
| 3G/4G RADIO Physical Layer Rates | LTE: · LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) · LTE TDD: Max 130Mbps (DL)/Max 35Mbps (UL) UMTS: · DC-HSDPA: Max 42Mbps (DL) · HSUPA: Max 5.76Mbps (UL) · WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) |
|
| 3G/4G Bands | USA (AT&T) SKU: · LTE FDD: B2/B4/B12 · WCDMA: B2/B4/B5 Domain 1 SKU: · LTE FDD: B1/B3/B5/B7/B8/B20 · LTE TDD: B38/B40/B41 · WCDMA: B1/B5/B8 Domain 2 SKU: · LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 · LTE TDD: B40 · WCDMA: B1/B2/B5/B8 Japan SKU: · LTE FDD: B1/B3/B8/B18/B19/B26 · LTE TDD: B41 · WCDMA: B1/B6/B8/B19 |
|
| 3G/4G RADIO Peak Transmit Power | · 23dBm for LTE · 24dBm for WCDMA |
|
| 3G/4G RADIO Minimum Receive Sensitivity | · < -99.5dBm for LTE · < -110dBm for WCDMA |
|
| 3G/4G Antenna connectors | · 2x SMA female | |
| 3G/4G Antennas (included with M510) | · 2x whip antennas, hinged, 700-2700MHz, peak gain 2dBi | |
| 3G/4G SIM Card | · 2x SIM Card slots (primary & redundant), Micro-SIM size (3FF) |
|
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PDMRC) |
|
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
|
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
|
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
|
| Mobility | · SmartRoam | |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
|
| Controller Platform Support | · SmartZone · Unleashed2 · Standalone |
|
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh (in future release) | |
| IP | · IPv4, IPv6 | |
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
|
| 802.1x | · Authenticator and Supplicant | |
| Tunnel | · L2TP, GRE, Soft-GRE | |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
|
| IoT Capbale | · Yes | |
| Ethernet | · 2 x 1GbE ports, RJ-45 | |
| USB | · 1 USB 2.0 port, Type A connector | |
| Physical Size (L x W x H) | · 17.2(L) x 16.7(W) x 4.2(H) cm · 6.8 (L) x 6.6(W) x 1.6(H) in. |
|
| Weight | · 450g (15.9oz) | |
| Mounting | · Wall, Drop ceiling, Desk (mounting hardware included) · Vehicle (flange mounting bracket sold separately) |
|
| Physical Security | · Hidden latching mechanism · Kensington lock |
|
| Operating Temperature | · -40ºC (-40ºF) to 65ºC (149ºF) | |
| Operating Humidity | · Up to 95%, non-condensing | |
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac · Passpoint®, Vantage, AMB, OCE |
|
| Standards Compliance | · EN 60950-1 Safety · EN 61000-4-2/3/5 Immunity · EN 50155 Railway · EN 50121-3-2 Railway EMC · IEC 61373 Railway Shock & Vibration · UL 2043 Plenum · EN 62311 Human Safety/RF Exposure · EN 62311 · WEEE & RoHS · ISTA 2A Transportation · E-Mark Automotive |
|
| Mobile Radio Approvals | · GCF, PTCRB, AT&T | |
| Location Based Services | · SPoT | |
| Network Analytics | · SmartCell Insight (SCI) | |
| Security and Policy | · Cloudpath | |
| OPTIONAL ACCESSORIES | ||
| 902-1169-XX00 | · Power Supply (12V, 2.0A, 24W) | |
| 902-0162-XXYY | · PoE injector (24W) (Sold in quantities of 1, 10 or 100) | |
| 902-0120-0000 | · Spare, Accessory Mounting Bracket | |
| 902-0195-0000 | · Spare, T-bar ceiling mount kit for mounting to flush frame ceiling | |
| 902-1122-0000 | · Accessory flange mounting bracket | |
| 2.4GHZ RECEIVE SENSITIVITY | |||
| HT20 | HT40 | ||
| MCS0 | MCS7 | MCS0 | MCS7 |
| -98 | -79 | -95 | -77 |
| 5GHZ RECEIVE SENSITIVITY | |||||
| VHT20 | VHT40 | VHT80 | |||
| MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 |
| -92 | -74 | -89 | -66 | -75 | -62 |
| POWER | |
| Power Supply | Maximum Power Consumption |
| 802.3af/802.3at | · 12.9W |
| 5GHZ TX POWER TARGET | |||
| Rate | Pout (dBm) | ||
| VHT20 | 22 | ||
| MCS0 VHT40 | 22 | ||
| MCS7 VHT40, VHT80 | 19 | ||
| MCS9 VHT40, VHT80 | 16 | ||
| 2.4GHZ TX POWER TARGET | |||
| Rate | Pout (dBm) | ||
| MCS0 HT20 | 19 | ||
| MCS7 HT20 | 18 | ||
901-M510-D100 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
901-M510-D100 FAQ
What is 901-M510-D100?
901-M510-D100 RUCKUS M510 Mobile Indoor 802.11ac Wave 2 Access Point is a RUCKUS RUCKUS M510 Access Point product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of 901-M510-D100?
The listed datasheet series for 901-M510-D100 is Ruckus Wireless Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of 901-M510-D100?
The listed exact model for 901-M510-D100 is 901-M510-D100. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is 901-M510-D100 available from YYST Global?
YYST Global can help check availability, lead time and configuration for 901-M510-D100. Contact the sales team before ordering to confirm current stock.
What is the price of 901-M510-D100?
The current reference price for 901-M510-D100 is US$ 300.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
