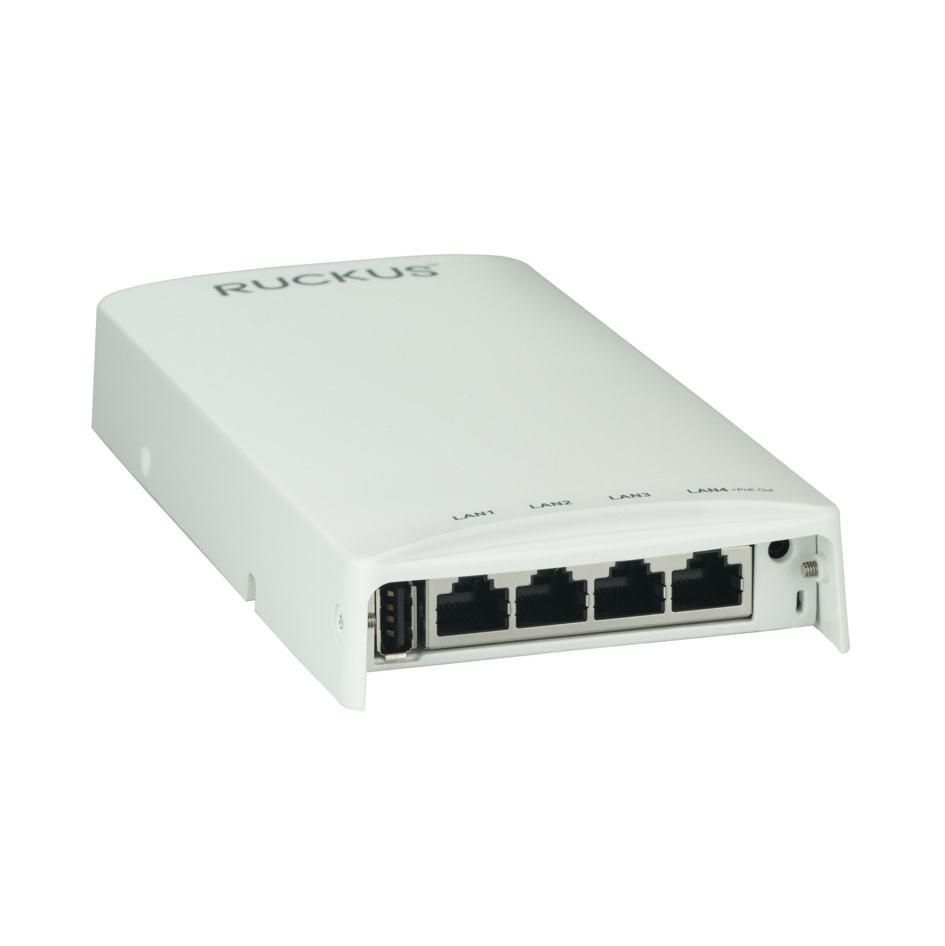

RUCKUS 901-H550-WW00 H550 Access Point
- 763 412 7282
- +86 010 69614620
901-H550-WW00 Buying Guide
901-H550-WW00 RUCKUS H550 Wall-Mounted Wi-Fi 6 2x2:2 Access Point is listed by YYST Global for buyers looking for RUCKUS RUCKUS H550 Access Point. 901-H550-WW00 RUCKUS wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 368.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: 901-H550-WW00
- Brand: RUCKUS
- Category: RUCKUS H550 Access Point
- Condition: New Factory Sealed
- Reference price: US$ 368.00
901-H550-WW00 Overview
901-H550-WW00 is a RUCKUS wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: 901-H550-WW00 RUCKUS H550 Wall-Mounted Wi-Fi 6 2x2:2 Access Point. Category: RUCKUS H550 Access Point. Condition: New Factory Sealed.
901-H550-WW00 Specification
| ORDERING INFORMATION | |||||||||||
| 901-H550-WW00 | Dual band 802.11ax Wi-Fi 6 Wall plate 2x2:2 AP with 802.11af PoE out port | ||||||||||
| WI-FI | |||||||||||
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax | ||||||||||
| Supported Rates | 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80) | ||||||||||
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80) | |||||||||||
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) | |||||||||||
| 802.11a/g: 6 to 54 Mbps | |||||||||||
| 802.11b: 1 to 11 Mbps | |||||||||||
| Supported Channels | 2.4Ghz: 1-13 | ||||||||||
| 5Ghz: 36-64, 100-144, 149-165 | |||||||||||
| MIMO | 2x2 SU-MIMO | ||||||||||
| 2x2 MU-MIMO | |||||||||||
| Spatial Streams | 2 Streams SU/MU-MIMO (2.4Ghz & 5Ghz) | ||||||||||
| Radio Chains and Streams | 2x2:2 (2.4Ghz & 5Ghz) | ||||||||||
| Channelization | 20, 40, 80MHz | ||||||||||
| Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE | ||||||||||
| WIPS/WIDS | |||||||||||
| Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v | ||||||||||
| Captive Portal | |||||||||||
| Hotspot | |||||||||||
| Hotspot 2.0 | |||||||||||
| WISPr | |||||||||||
| RF | |||||||||||
| Antenna Type | BeamFlex+ adaptive antennas with polarization diversity | ||||||||||
| Adaptive antenna that provides multiple unique antenna patterns | |||||||||||
| Antenna Gain (max) | Up to 1dBi | ||||||||||
| Peak Transmit Power (aggregate across MIMO chains) | 2.4GHz: 19dBm | ||||||||||
| 5GHz: 22dBm | |||||||||||
| Minimum Receive Sensitivity1 | -100dBm | ||||||||||
| Frequency Bands | ISM (2.4-2.484GHz) | ||||||||||
| U-NII-1 (5.15-5.25GHz) | |||||||||||
| U-NII-2A (5.25-5.35GHz) | |||||||||||
| U-NII-2C (5.47-5.725GHz) | |||||||||||
| U-NII-3 (5.725-5.85GHz) | |||||||||||
| PERFORMANCE AND CAPACITY | |||||||||||
| Peak PHY Rates | 2.4GHz: 574Mbps | ||||||||||
| 5GHz: 1,200Mbps | |||||||||||
| Client Capacity | Up to 512 clients per AP | ||||||||||
| SSID | 8 per radio | ||||||||||
| RUCKUS RADIO MANAGEMENT | |||||||||||
| Antenna Optimization | BeamFlex+ | ||||||||||
| Polarization Diversity with Maximal Ratio Combining (PD-MRC) | |||||||||||
| Wi-Fi Channel Management | ChannelFly | ||||||||||
| Background Scan Based | |||||||||||
| Client Density Management | Adaptive Band Balancing | ||||||||||
| Client Load Balancing | |||||||||||
| Airtime based WLAN Prioritization | |||||||||||
| Airtime Fairness | |||||||||||
| SmartCast Quality of Service | QoS-based scheduling | ||||||||||
| Directed Multicast | |||||||||||
| L2/L3/L4 ACLs | |||||||||||
| Mobility | SmartRoam | ||||||||||
| Diagnostic Tools | Spectrum Analysis | ||||||||||
| SpeedFlex | |||||||||||
| NETWORKING | |||||||||||
| Controller Platform Support | SmartZone | ||||||||||
| ZoneDirector | |||||||||||
| Unleashed2 | |||||||||||
| Cloud | |||||||||||
| Standalone | |||||||||||
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh | ||||||||||
| IP | IPv4, IPv6, dual stack | ||||||||||
| VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS) | ||||||||||
| VLAN Pooling | |||||||||||
| Port-based | |||||||||||
| 802.1x | Authenticator and Supplicant | ||||||||||
| Tunnel | L2TP, GRE, Soft-GRE | ||||||||||
| Policy Management Tools | Application Recognition and Control | ||||||||||
| Access Control Lists | |||||||||||
| Device Fingerprinting | |||||||||||
| Rate Limiting | |||||||||||
| IoT | Integrated BLE and Zigbee (Dual Concurrent) | ||||||||||
| PHYSICAL INTERFACES | |||||||||||
| Ethernet | 1x 1GbE port, RJ-45, PoE In – 802.3bt Class 5 | ||||||||||
| 4x 1GbE ports, RJ-45, one PoE Out port – 802.3af (901-H550-XX00) or 48v passive PoE (901-H550-XX02) | |||||||||||
| USB | 1 USB 2.0 port, Type A | ||||||||||
| PHYSICAL CHARACTERISTICS | |||||||||||
| Physical Size | 89.5 mm (W) x 178.5 mm (L), 29.3 mm (H) | ||||||||||
| 3.52in (W) x 7.03in (L) x 1.15in (H) | |||||||||||
| Weight | 278g (0.613lbs) without bracket | ||||||||||
| 350g (0.772lbs) with bracket | |||||||||||
| Mounting | Electrical wallbox; Standard US and EU single gang wall jack | ||||||||||
| Optional bracket for offset & wall mount | |||||||||||
| Operating Temperature | 0°C (32°F) - 40°C (104°F) | ||||||||||
| Operating Humidity | Up to 95%, non-condensing | ||||||||||
| CERTIFICATIONS AND COMPLIANCE | |||||||||||
| Wi-Fi Alliance4 | Wi-Fi CERTIFIED™ a, b, g, n, ac | ||||||||||
| Wi-Fi CERTIFIED 6™ | |||||||||||
| WPA3 Enterprise Personal | |||||||||||
| Wi-Fi Enhanced Open™ | |||||||||||
| Wi-Fi Agile Multiband™ | |||||||||||
| Passpoint® | |||||||||||
| Vantage | |||||||||||
| WMM® | |||||||||||
| Standards Compliance5 | EN 60950-1 Safety | ||||||||||
| EN 60601-1-2 Medical | |||||||||||
| EN 61000-4-2/3/5 Immunity | |||||||||||
| EN 50121-1 Railway EMC | |||||||||||
| EN 50121-4 Railway Immunity | |||||||||||
| IEC 61373 Railway Shock & Vibration | |||||||||||
| EN 62311 Human Safety/RF Exposure | |||||||||||
| WEEE & RoHS | |||||||||||
| ISTA 2A Transportation | |||||||||||
| SOFTWARE AND SERVICES | |||||||||||
| Location Based Services | SPoT | ||||||||||
| Network Analytics | RUCKUS Analytics | ||||||||||
| SmartCell Insight (SCI) | |||||||||||
| Security and Policy | Cloudpath | ||||||||||
| 2.4GHZ RECEIVE SENSITIVITY (dBm) - PER RADIO CHAIN | |||||||||||
| HT20 | HT40 | VHT20 | VHT40 | ||||||||
| MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 | ||||
| -94 | -75 | -91 | -72 | -94 | -75 | -91 | -72 | ||||
| HE20 | HE40 | ||||||||||
| MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 | ||||
| -94 | -75 | -71 | -65 | -91 | -72 | -68 | -62 | ||||
| 5GHZ RECEIVE SENSITIVITY (dBm) - PER RADIO CHAIN | |||||||||||
| VHT20 | VHT40 | VHT80 | |||||||||
| MCS0 | MCS7 | MCS8 | MCS9 | MCS0 | MCS7 | MCS8 | MCS9 | MCS0 | MCS7 | MCS8 | MCS9 |
| -97 | -76 | -72 | -- | -92 | -73 | -- | -67 | -89 | -70 | -- | -64 |
| HE20 | HE40 | HE80 | |||||||||
| MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 | MCS0 | MCS7 | MCS9 | MCS11 |
| -95 | -76 | -70 | -65 | -92 | -73 | -67 | -62 | -89 | -70 | -64 | -59 |
| POWER CONFIGURATION OPTIONS3 | |||||||||||
| Power Mode | 802.3af | 802.3at | 802.3bt, uPoE, PoH | ||||||||
| Wi-Fi (2.4GHz) 2x2 | Tx Power (per Chain) | 16dBm | 16dBm | 16dBm | |||||||
| Wi-Fi (5GHz) 2x2 | Tx Power (per Chain) | 19dBm | 19dBm | 19dBm | |||||||
| IoT | BLE | Enabled | Enabled | Enabled | |||||||
| Radios | Zigbee | Enabled | Enabled | Enabled | |||||||
| Ethernet LAN Ports (4x) | Enabled | Enabled | Enabled | ||||||||
| PSE | PoE_Out | Disabled | Disabled | Enabled | Enabled | Enabled | |||||
| Power @ PD | NA | NA | 8.4W | 12.4W | 12.95W | ||||||
| Maximum Cable Length | NA | NA | 20m | 20m | 100m | ||||||
| USB | Disabled | Enabled | Enabled | Disabled | Enabled | ||||||
| Power Consumption | 12.54W | 15.9W | 24.91W | 25.48W | 32.21W | ||||||
901-H550-WW00 Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
901-H550-WW00 FAQ
What is 901-H550-WW00 used for?
901-H550-WW00 RUCKUS H550 Wall-Mounted Wi-Fi 6 2x2:2 Access Point is a RUCKUS accessory or component in the RUCKUS H550 Access Point category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with 901-H550-WW00?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with 901-H550-WW00?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of 901-H550-WW00?
The current reference price for 901-H550-WW00 is US$ 368.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
