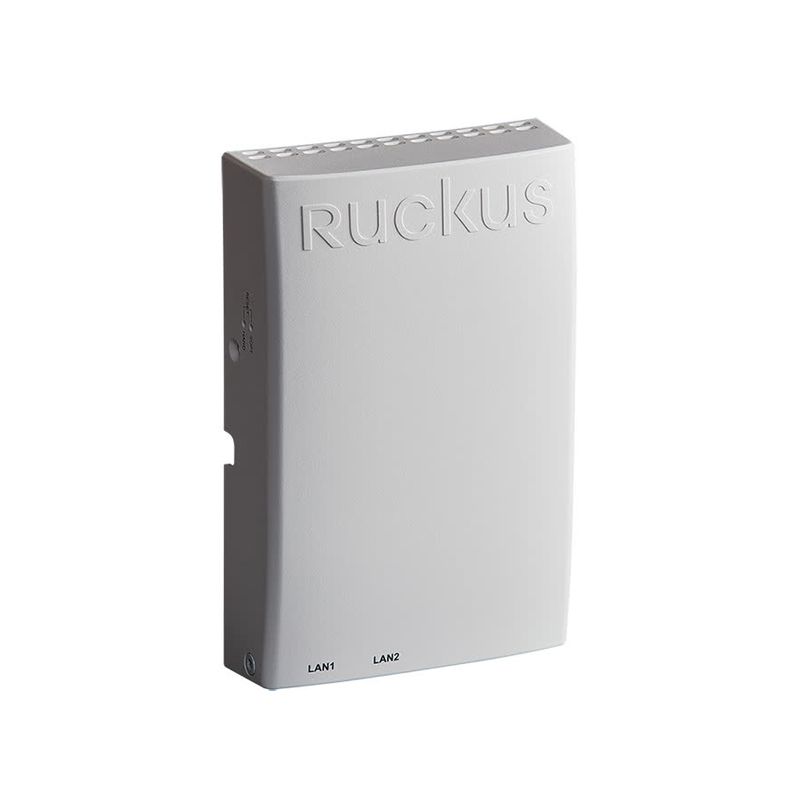

RUCKUS 901-H320-WW00 H320 Access Point and Switch
- 763 412 7282
- +86 010 69614620
901-H320-WW00 Buying Guide
901-H320-WW00 RUCKUS H320 802.11ac Wave 2 Access Point and Switch is listed by YYST Global for buyers looking for RUCKUS RUCKUS H320 Access Point and Switch. 901-H320-WW00 RUCKUS wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 167.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: 901-H320-WW00
- Brand: RUCKUS
- Category: RUCKUS H320 Access Point and Switch
- Condition: New Factory Sealed
- Reference price: US$ 167.00
901-H320-WW00 Overview
901-H320-WW00 is a RUCKUS wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: 901-H320-WW00 RUCKUS H320 802.11ac Wave 2 Access Point and Switch. Category: RUCKUS H320 Access Point and Switch. Condition: New Factory Sealed.
901-H320-WW00 Specification
| Datasheet series | Ruckus ICX Switches |
| Exact model | 901-H320-WW00 |
| Product role | Campus access or aggregation switch; confirm PoE, uplink, stacking and license requirements |
| Management check | Confirm SmartZone, Unleashed, Cloudpath or Ruckus Cloud compatibility as applicable |
| Deployment check | Confirm power, accessories, country domain, firmware and warranty terms before order |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Ruckus ICX switches official product page |
| 901-H320-WW00 | Dual band Wave 2 802.11ac Wi-Fi Wall Switch. Does not include power adapter or PoE injector | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 | |
| Supported Rates | · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5Mbps to 150Mbps (MCS0 to MCS7) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
|
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144 |
|
| MIMO | · 1x1 2.4GHz · 2x2 MU-MIMO 5GHz |
|
| Spatial Streams | · 1 Stream 2.4GHz · 2 Streams SU/MU-MIMO 5GHz |
|
| Radio Chains and Streams | · 2x2:2 | |
| Channelization | · 20, 40, 80MHz | |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES,802.11i, Dynamic PSK · WIPS/WIDS |
|
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Captive Portal · Hotspot · Hotspot 2.0 · WISPr |
|
| Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides multiple-antenna patterns per band |
|
| Antenna Gain (max) | · Up to 3dBi | |
| Peak Transmit Power (Tx port/chain +Combining gain) | · 2.4GHz: 16dBm · 5GHz: 20dBm |
|
| Minimum Receive Sensitivity2 | · -99dBm | |
| Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
|
| Peak PHY Rates | · 2.4GHz: 150Mbps · 5GHz: 867Mbps |
|
| Client Capacity | · Up to 100 clients per AP | |
| SSID | · Up to 16 per AP | |
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PDMRC) |
|
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
|
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
|
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
|
| Mobility | · SmartRoam | |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
|
| Controller Platform Support | · SmartZone · ZoneDirector · Cloud Wi-Fi · Unleashed · Standalone |
|
| Mesh | · No Mesh support |
|
| IP | · IPv4, IPv6, dual-stack | |
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · Port-based |
|
| 802.1x | · Authenticator and Supplicant | |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting |
|
| Ethernet | · One 1GbE port backhaul, PoE (802.11af/at) · 2 x 10/100Mbps Ethernet switch ports |
|
| Physical Size (L x W x H) | · 89 mm (W) x 136 mm (L), 29 mm (H) · 3.5in (W) x 5.35in (L) x 1.1in (H) |
|
| Weight | · 195g without bracket (6.9oz) · 276g with bracket (9.7oz) |
|
| Mounting | · Electrical wallbox; Standard US and EU single gang wall jack · Optional bracket for offset & wall mount |
|
| Operating Temperature | · 0°C (32°F) - 40°C (104°F) | |
| Operating Humidity | · Up to 95%, non-condensing | |
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac · Passpoint®, Vantage |
|
| Standards Compliance | · EN 60950-1 Safety · EN 60601-1-2 Medical · EN 61000-4-2/3/5 Immunity · EN 50121-1 Railway EMC · EN 50121-4 Railway Immunity · IEC 61373 Railway Shock & Vibration · WEEE & RoHS · ISTA 2A Transportation |
|
| Location Based Services | · SPoT | |
| Network Analytics | · SmartCell Insight (SCI) | |
| Security and Policy | · Cloudpath | |
| OPTIONAL ACCESSORIES | ||
| 902-0162-XXYY | · PoE injector (24W) (Sold in quantities of 1, 10 or 100) | |
| 902-1120-0000 | · Optional Surface-mount bracket | |
| 2.4GHZ RECEIVE SENSITIVITY | |||
| HT20 | HT40 | ||
| MCS0 | MCS7 | MCS0 | MCS7 |
| -93 | -75 | -90 | -72 |
| 5GHZ RECEIVE SENSITIVITY | |||||
| VHT20 | VHT40 | VHT80 | |||
| MCS0 | MCS7 | MCS0 | MCS7 | MCS0 | MCS7 |
| -93 | -76 | -90 | -73 | -87 | -71 |
| 2.4GHZ TX POWER TARGET | |||
| Rate | Pout (dBm) | ||
| MCS0 HT20 | 16 | ||
| MCS7 HT20 | 15 | ||
| 5GHZ TX POWER TARGET | |||
| Rate | Pout (dBm) | ||
| MCS0 VHT20 | 17 | ||
| MCS7 VHT20 | 14 | ||
| MCS0 VHT40, VHT80 | 17 | ||
| MCS7 VHT40, VHT80 | 14 | ||
| MCS9 VHT40, VHT80 | 12 | ||
| POWER | |
| Power Supply | 802.3af for Full AP Feature Support |
| Power Draw | · Idle: 3W · Typical: 4W · Peak: 6W |
901-H320-WW00 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
Firmware Download
901-H320-WW00 FAQ
What is 901-H320-WW00?
901-H320-WW00 RUCKUS H320 802.11ac Wave 2 Access Point and Switch is a RUCKUS RUCKUS H320 Access Point and Switch product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of 901-H320-WW00?
The listed datasheet series for 901-H320-WW00 is Ruckus ICX Switches. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of 901-H320-WW00?
The listed exact model for 901-H320-WW00 is 901-H320-WW00. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is 901-H320-WW00 available from YYST Global?
YYST Global can help check availability, lead time and configuration for 901-H320-WW00. Contact the sales team before ordering to confirm current stock.
What is the price of 901-H320-WW00?
The current reference price for 901-H320-WW00 is US$ 167.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
