S2750-28TP-EI-AC Huawei S2700 Series Switch
- 763 412 7282
- +86 010 69614620
S2750-28TP-EI-AC Overview
S2750-28TP-EI-AC Technical Profile
- S2750-28TP-EI-AC Specification Downlink ports
- 24 × 10/100Base-TX Ethernet ports
- Uplink ports
- 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
- MAC address-based assignment Port-based QinQ QoS
- Port-based rate limiting and flow-based rate limiting 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms
- Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Suppression of multicast, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense S2750-EI/S2751-EI:DHCP relay Surge protection
- Surge protection capability of service ports: 6 kV
- Power
- AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
- Dimensions (W x D x H)
- 442 × 220 × 43.6 mm
- Weight
- S2750-28TP-EI < 3 kg
- Power consumption
- S2750-28TP-EI< 15.7 W
S2750-28TP-EI-AC Manufacturer Source
S2750-28TP-EI-AC Model-Specific Differences
S2750-28TP-EI-AC is the non-PoE member of this twenty-four-port Fast Ethernet pair. Its chassis depth is two-hundred-twenty millimetres, approximate weight is below three kilograms and power consumption is below fifteen-point-seven watts. S2751-28TP-PWR-EI-AC is deeper and designed to supply endpoint power.
S2750-28TP-EI-AC Specification
S2750-28TP-EI-AC Specification | |
Downlink ports | 24 × 10/100Base-TX Ethernet ports |
Uplink ports | 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
MAC address | 16K MAC address entries |
VLAN feature | 4K VLANs, complying with IEEE 802.1Q |
MAC address-based assignment | |
QoS | Port-based rate limiting and flow-based rate limiting |
packet-based priority remark and packet redirection | |
IPv6 feature | IPv6 protocol |
Multicast | MVLAN |
Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance |
Traffic sampling | sFlow |
Security & access features | 802.1x authentication and limit on the number of users on an interface |
Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication | |
Surge protection | Surge protection capability of service ports: 6 kV |
Management | Stack |
Operating environment | Long-term operating temperature: –5°C to + 50°C |
Power | AC: |
Dimensions (W x D x H) | 442 × 220 × 43.6 mm |
Weight | S2750-28TP-EI < 3 kg |
Power consumption | S2750-28TP-EI< 15.7 W |
| Exact product model | S2750-28TP-EI-AC |
| Product family | Huawei campus switch |
| Official Huawei documentation | Huawei Enterprise Support results for S2750-28TP-EI |
S2750-28TP-EI-AC Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
S2750-28TP-EI-AC FAQ
What interfaces and ports does S2750-28TP-EI-AC provide?
For S2750-28TP-EI-AC, the manufacturer specification lists downlink ports as 24 × 10/100Base-TX Ethernet ports.
What are the power requirements for S2750-28TP-EI-AC?
For S2750-28TP-EI-AC, the manufacturer specification lists power as AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz.
What are the physical specifications of S2750-28TP-EI-AC?
For S2750-28TP-EI-AC, the manufacturer specification lists dimensions (w x d x h) as 442 × 220 × 43.6 mm.
Related products
Related S2750-28TP-EI-AC
Huawei S2750-28TP-PWR-EI-AC 24-Port PoE+ Switch
Huawei S2750-28TP-PWR-EI-AC combines 24 PoE+ Fast Ethernet access ports, four Gigabit uplink positions and a fixed 370 W PoE budget in an AC-powered chassis.
Huawei S2750-20TP-PWR-EI-AC Switch
S2750-20TP-PWR-EI-AC is listed in Huawei S2700 Series Switches. Check model compatibility, current stock, condition and quotation details.
S2730S-S16FT4S-A
Huawei S2730S-S16FT4S-A is ordering part 98011315, with eight 10/100BASE-TX copper ports, eight 10/100/1000BASE-T copper ports and four GE SFP positions. It is a non-PoE switch using built-in AC power and a fan. Huawei specifies 22.7 W typical and 28.1 W maximum consumption, and supports optical modules with a transmission distance of 10 km or less. The mixed copper rates and optic-distance limit matter when selecting this chassis.
S2730S-S24FT4S-A
Huawei S2730S-S24FT4S-A, part 98011309, combines twelve 10/100BASE-TX ports, twelve 10/100/1000BASE-T ports and four GE SFP ports. This is a non-PoE 1U switch with built-in AC power and one built-in fan. The official hardware table lists 32.7 W typical and 47.6 W maximum consumption. Check endpoint speed allocation and the optical-module temperature conditions before specifying this mixed-speed chassis.

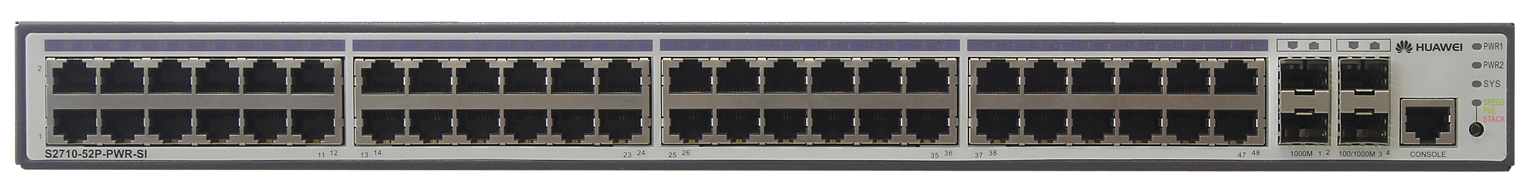

S2710-52P-PWR-SI
Huawei S2710-52P-PWR-SI is the BOM 02354130 bundle: 48 Ethernet 10/100 PoE+ ports, four Gigabit SFP interfaces and a 500W AC power supply in the manufacturer order description. V100R006C03 is its first supported version. Plan the powered-endpoint load separately from the AC supply rating and request the actual module configuration with the quotation.

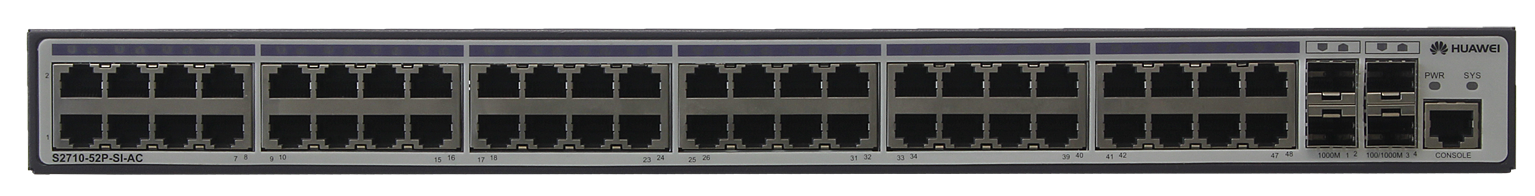

S2710-52P-SI-AC
