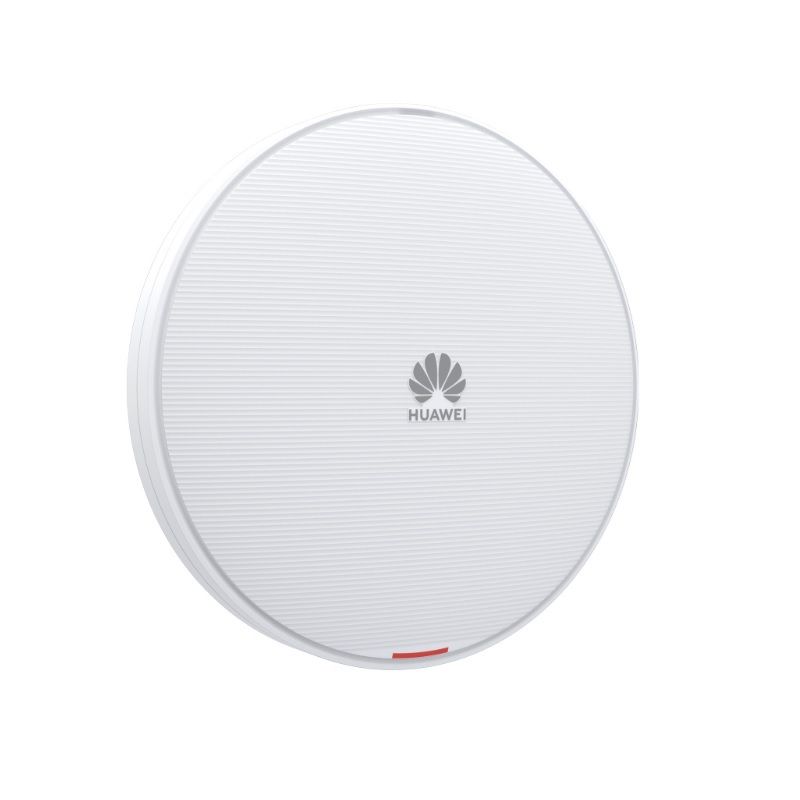

HUAWEI AirEngine 5762S-11 AirEngine 5700 Series Access Points
- 763 412 7282
- +86 010 69614620
AirEngine 5762S-11 Buying Guide
AirEngine 5762S-11 Huawei AirEngine 5700 Dual-band 2.4GHz & 5GHz AP is listed by YYST Global for buyers looking for HUAWEI Huawei AirEngine 5700 Series Access Points. AirEngine 5762S-11 HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 176.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: AirEngine 5762S-11
- Brand: HUAWEI
- Category: Huawei AirEngine 5700 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 176.00
AirEngine 5762S-11 Overview
AirEngine 5762S-11 is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AirEngine 5762S-11 Huawei AirEngine 5700 Dual-band 2.4GHz & 5GHz AP. Category: Huawei AirEngine 5700 Series Access Points. Condition: New Factory Sealed.
AirEngine 5762S-11 Specification
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 95 mm x 280 mm x 250 mm (3.74 in. x 11.02 in. x 9.84 in.) |
| Weight without packaging [kg(lb)] | 0.510 kg (1.124 lb) |
| Weight with packaging [kg(lb)] | 0.885 kg (1.951 lb) |
| Storage | NAND Flash 256 MB |
| Console port | Bluetooth console |
| Maximum power consumption [W] | 10 W |
| Maximum heat dissipation [BTU/hour] | 34 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | Not supported |
| IoT slot | Not supported |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4 GHz: -10 dBm to +17 dBm/chain 5 GHz: -10 dBm to +17 dBm/chain |
| MTBF [year] | 578 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | No function is limited. |
| Exact product model | AirEngine 5762S-11 |
| Product family | Huawei AirEngine/AP wireless access point |
| Official Huawei documentation | Huawei Enterprise Support results for AirEngine 5762S-11 |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
AirEngine 5762S-11 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
AirEngine 5762S-11 FAQ
What is AirEngine 5762S-11?
AirEngine 5762S-11 Huawei AirEngine 5700 Dual-band 2.4GHz & 5GHz AP is a HUAWEI Huawei AirEngine 5700 Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the installation type of AirEngine 5762S-11?
The listed installation type for AirEngine 5762S-11 is Wall Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod). Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the dimensions without packaging (h x w x d) [mm(in.)] of AirEngine 5762S-11?
The listed dimensions without packaging (h x w x d) [mm(in.)] for AirEngine 5762S-11 is Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is AirEngine 5762S-11 available from YYST Global?
YYST Global can help check availability, lead time and configuration for AirEngine 5762S-11. Contact the sales team before ordering to confirm current stock.
What is the price of AirEngine 5762S-11?
The current reference price for AirEngine 5762S-11 is US$ 176.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
