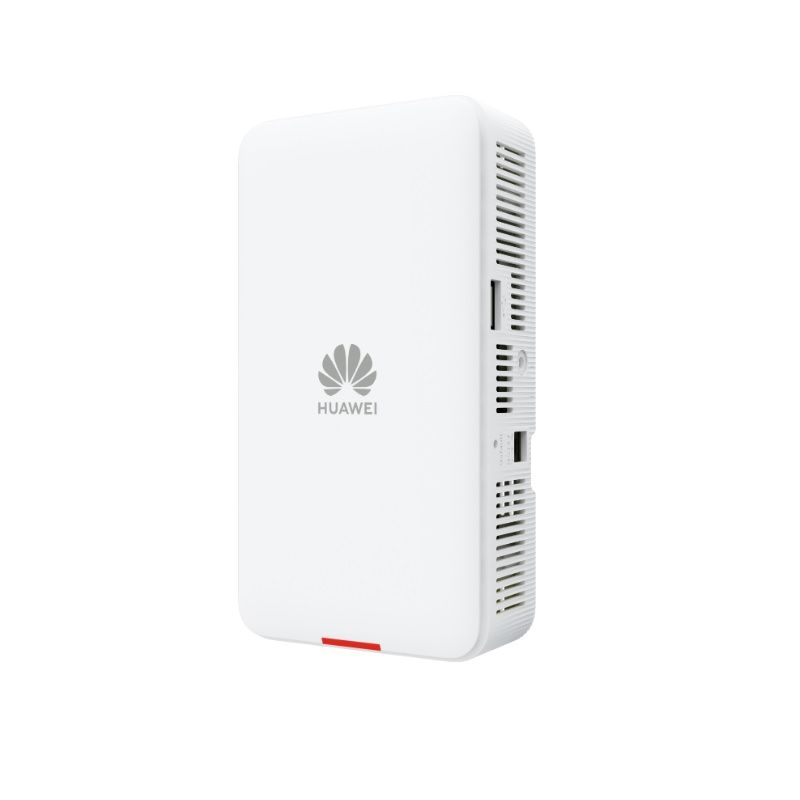

HUAWEI AirEngine 5761-11WD AirEngine 5700 Series Access Points
- 763 412 7282
- +86 010 69614620
AirEngine 5761-11WD Buying Guide
AirEngine 5761-11WD Huawei AirEngine 5700 WiFi 6 Smart Antennas AP is listed by YYST Global for buyers looking for HUAWEI Huawei AirEngine 5700 Series Access Points. AirEngine 5761-11WD HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 134.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: AirEngine 5761-11WD
- Brand: HUAWEI
- Category: Huawei AirEngine 5700 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 134.00
AirEngine 5761-11WD Overview
AirEngine 5761-11WD is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AirEngine 5761-11WD Huawei AirEngine 5700 WiFi 6 Smart Antennas AP. Category: Huawei AirEngine 5700 Series Access Points. Condition: New Factory Sealed.
AirEngine 5761-11WD Specification
| Installation Type | Wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Weight without packaging [kg(lb)] | 0.300 kg (0.661 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 12.7 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 42.6 BTU (without USB) |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device | GE (RJ45) x 5, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | USB 2.0, supporting 2.5 W or 5 W power supply. |
| IoT slot | Not supported |
| BLE | BLE5.2 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 2.5 dBi/chain (peak) 1 dBi (combined gain) 5 GHz: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 256 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | The USB function is not supported. Other functions are not restricted. |
| DC power supply description | No function is limited. |
AirEngine 5761-11WD Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
AirEngine 5761-11WD FAQ
What is AirEngine 5761-11WD used for?
AirEngine 5761-11WD Huawei AirEngine 5700 WiFi 6 Smart Antennas AP is a HUAWEI accessory or component in the Huawei AirEngine 5700 Series Access Points category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with AirEngine 5761-11WD?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with AirEngine 5761-11WD?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of AirEngine 5761-11WD?
The current reference price for AirEngine 5761-11WD is US$ 134.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
