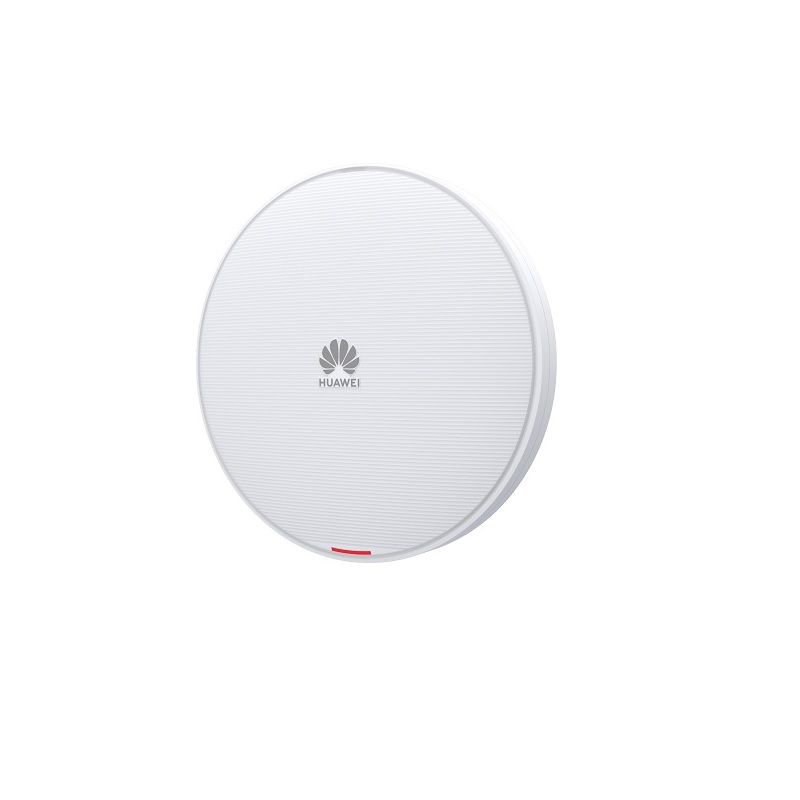

HUAWEI AirEngine 5761-11 AirEngine 5700 Series Access Points
- 763 412 7282
- +86 010 69614620
AirEngine 5761-11 Buying Guide
AirEngine 5761-11 Huawei AirEngine 5700 Indoor Wi-Fi 6 1.775 Gbps AP is listed by YYST Global for buyers looking for HUAWEI Huawei AirEngine 5700 Series Access Points. AirEngine 5761-11 HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 134.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: AirEngine 5761-11
- Brand: HUAWEI
- Category: Huawei AirEngine 5700 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 134.00
AirEngine 5761-11 Overview
AirEngine 5761-11 is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AirEngine 5761-11 Huawei AirEngine 5700 Indoor Wi-Fi 6 1.775 Gbps AP. Category: Huawei AirEngine 5700 Series Access Points. Condition: New Factory Sealed.
AirEngine 5761-11 Specification
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.) |
| Weight without packaging [kg(lb)] | 1.05 kg (2.31 lb) |
| Storage | NAND Flash 512 MB |
| Console port | Bluetooth console |
| Maximum power consumption [W] | 15.3 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 52.2 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | USB 2.0, supporting 2.5 W or 5 W power supply. |
| IoT slot | Not supported |
| BLE | BLE5.2 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 24 dBm/chain 27 dBm (combined power) 5G: 24 dBm/chain 27 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 24 dBm/chain 5G: -10 dBm to 24 dBm/chain |
| MTBF [year] | 124 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2x2)+5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz radio) and 22 dBm (5 GHz radio). Wired network port: No restriction is posed on wired network ports. Other ports: The USB port is unavailable. |
| DC power supply description | No function is limited. |
| Exact product model | AirEngine 5761-11 |
| Product family | Huawei AirEngine/AP wireless access point |
| Official Huawei documentation | Huawei Enterprise Support results for AirEngine 5761-11 |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
AirEngine 5761-11 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
AirEngine 5761-11 FAQ
What is AirEngine 5761-11?
AirEngine 5761-11 Huawei AirEngine 5700 Indoor Wi-Fi 6 1.775 Gbps AP is a HUAWEI Huawei AirEngine 5700 Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the installation type of AirEngine 5761-11?
The listed installation type for AirEngine 5761-11 is Wall Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm). Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the dimensions without packaging (h x w x d) [mm(in.)] of AirEngine 5761-11?
The listed dimensions without packaging (h x w x d) [mm(in.)] for AirEngine 5761-11 is Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is AirEngine 5761-11 available from YYST Global?
YYST Global can help check availability, lead time and configuration for AirEngine 5761-11. Contact the sales team before ordering to confirm current stock.
What is the price of AirEngine 5761-11?
The current reference price for AirEngine 5761-11 is US$ 134.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
