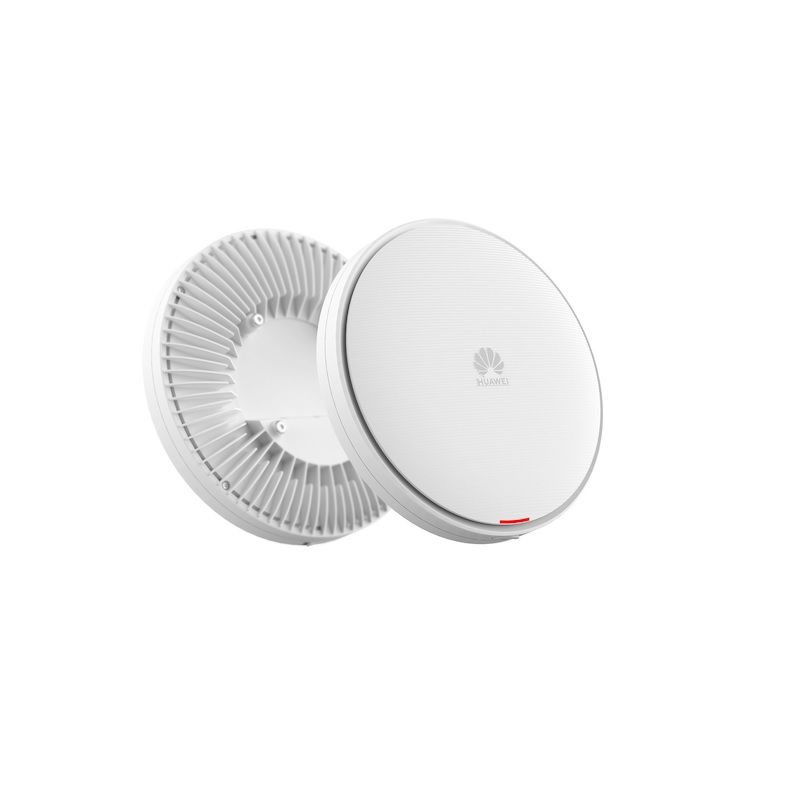

HUAWEI AirEngine 5760-51 AirEngine 5700 Series Access Points
- 763 412 7282
- +86 010 69614620
AirEngine 5760-51 Buying Guide
AirEngine 5760-51 Huawei AirEngine 5700 WiFi 6 2+4 Dual-band AP is listed by YYST Global for buyers looking for HUAWEI Huawei AirEngine 5700 Series Access Points. AirEngine 5760-51 HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 279.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: AirEngine 5760-51
- Brand: HUAWEI
- Category: Huawei AirEngine 5700 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 279.00
AirEngine 5760-51 Overview
AirEngine 5760-51 is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AirEngine 5760-51 Huawei AirEngine 5700 WiFi 6 2+4 Dual-band AP. Category: Huawei AirEngine 5700 Series Access Points. Condition: New Factory Sealed.
AirEngine 5760-51 Specification
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.) |
| Weight without packaging [kg(lb)] | 1.15 kg (2.53 lb) |
| Storage | NAND Flash 512 MB; NOR Flash 16 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 28.8 (excluding USB and IoT cards) |
| Maximum heat dissipation [BTU/hour] | 98.3 (without USB or IoT card) |
| Power supply mode |
|
| Rated input voltage [V] | 48 V |
| Input voltage range [V] | DC: 43.2 V to 57.6 V PoE: 802.3bt/at |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device | 5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Grounding |
| USB | USB 2.0 |
| IoT slot | IoT card |
| BLE | BLE5.2 |
| Radio number | 2/3 |
| Operating frequency band |
|
| MIMO spatial streams | Triple-radio mode:
Dual-radio mode:
|
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4.5 dBi 5 GHz: 5.5 dBi BLE: 4 dBi |
| Maximum transmit power | 2.4 GHz: 26 dBm 5 GHz: 26 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 20 dBm/chain 5 GHz: 20 dBm/chain) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 69.7 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | For 802.3bt class 6/class 8 power supply: If an RTU license is loaded, no function is restricted. If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:
|
| 802.3at power supply description | With an RTU license loaded: Wi-Fi: If the USB and IoT card slots are not used, the radio transmit power is not affected.
If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager. Wired network port: The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.) Other ports: Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager. Without an RTU license loaded: Wi-Fi: If no USB or IoT card slot is used, the radio transmit power is not affected.
If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager. Wired network port: The speed of the 5GE electrical port is reduced to 2.5GE or lower. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.) Other ports: Either the 5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in dual-radio mode and the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager. |
| DC power supply description | If an RTU license is loaded, no function is restricted. If no RTU license is loaded, Wi-Fi supports only the following mode and other functions are not restricted:
|
| Exact product model | AirEngine 5760-51 |
| Product family | Huawei AirEngine/AP wireless access point |
| Official Huawei documentation | Huawei Enterprise Support results for AirEngine 5760-51 |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
AirEngine 5760-51 Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
AirEngine 5760-51 FAQ
What is AirEngine 5760-51?
AirEngine 5760-51 Huawei AirEngine 5700 WiFi 6 2+4 Dual-band AP is a HUAWEI Huawei AirEngine 5700 Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the installation type of AirEngine 5760-51?
The listed installation type for AirEngine 5760-51 is Wall Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm). Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the dimensions without packaging (h x w x d) [mm(in.)] of AirEngine 5760-51?
The listed dimensions without packaging (h x w x d) [mm(in.)] for AirEngine 5760-51 is Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is AirEngine 5760-51 available from YYST Global?
YYST Global can help check availability, lead time and configuration for AirEngine 5760-51. Contact the sales team before ordering to confirm current stock.
What is the price of AirEngine 5760-51?
The current reference price for AirEngine 5760-51 is US$ 279.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
