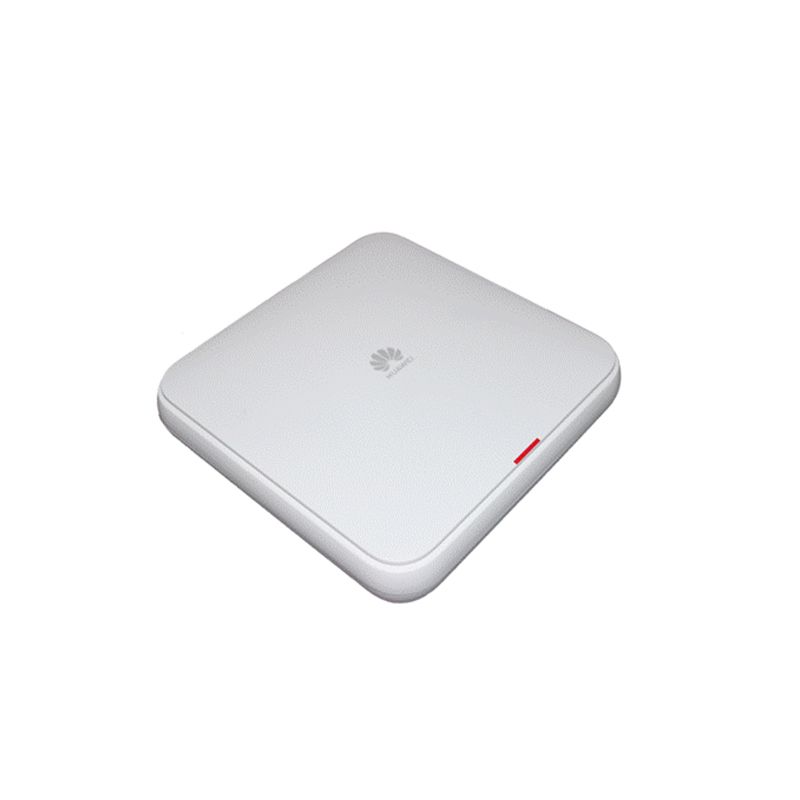

HUAWEI AirEngine 5760-22W AirEngine 5700 Series Access Points
- 763 412 7282
- +86 010 69614620
AirEngine 5760-22W Buying Guide
AirEngine 5760-22W Huawei AirEngine 5700 WiFi 6 4x4 MIMO 5GHz AP is listed by YYST Global for buyers looking for HUAWEI Huawei AirEngine 5700 Series Access Points. AirEngine 5760-22W HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 400.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: AirEngine 5760-22W
- Brand: HUAWEI
- Category: Huawei AirEngine 5700 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 400.00
AirEngine 5760-22W Overview
AirEngine 5760-22W is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AirEngine 5760-22W Huawei AirEngine 5700 WiFi 6 4x4 MIMO 5GHz AP. Category: Huawei AirEngine 5700 Series Access Points. Condition: New Factory Sealed.
AirEngine 5760-22W Specification
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 170 mm x 86 mm x 74 mm (6.69 in. x 3.39 in. x 2.91 in.) |
| Weight without packaging [kg(lb)] | 0.70 kg (1.54 lb) |
| Storage | NAND Flash 512 MB; NOR Flash 16 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 25.29 (excluding USB and PoE OUT ports) |
| Maximum heat dissipation [BTU/hour] | 86.3 (without USB and PoE OUT) |
| Power supply mode |
|
| Rated input voltage [V] | 48 V |
| Input voltage range [V] | DC: 43.2 V to 57.6 V PoE: 802.3bt/at |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Supported |
| Maximum PoE output power [W] | 13.6 W (When the maximum transmission distance through a CAT5E Ethernet cable is 40 m, the port can connect to an 802.3af-compliant PD requiring power of less than 12.95 W.) |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 10M/100M/1000M/2.5GE auto-sensing GE (RJ45) x 4, 10M/100M/1000M auto-sensing 10GE optical port (SFP+), GE/10GE auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | USB 2.0, supporting 2.5 W power supply. |
| IoT slot | IoT extension by USB |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2, maximum bandwidth of 40 MHz Radio 1 (5 GHz): 4x4, maximum bandwidth 160 MHz |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi 5 GHz: 5 dBi BLE: 4 dBi |
| Maximum transmit power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 20 dBm/chain 5 GHz: 20 dBm/chain) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 37 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | Wi-Fi:
Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available. Other ports: not restricted |
| 802.3at power supply description | Wi-Fi:
Wired network port: The 2.5GE electrical port and SFP+ optical port work as combo ports. When one of them is working, the other is unavailable. The four downlink ports are all available. Other ports: Only the 2.5 W USB port is supported. The 5 W USB port and PoE OUT port are unavailable. |
| 802.3af power supply description | The 802.3af power supply is not supported. |
| DC power supply description | Wi-Fi:
Wired network port: not restricted Other ports: not restricte |
| Exact product model | AirEngine 5760-22W |
| Product family | Huawei AirEngine/AP wireless access point |
| Official Huawei documentation | Huawei Enterprise Support results for AirEngine 5760-22W |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
AirEngine 5760-22W Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
AirEngine 5760-22W FAQ
What is AirEngine 5760-22W?
AirEngine 5760-22W Huawei AirEngine 5700 WiFi 6 4x4 MIMO 5GHz AP is a HUAWEI Huawei AirEngine 5700 Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the installation type of AirEngine 5760-22W?
The listed installation type for AirEngine 5760-22W is Wall Junction Box (86 mm/1-Gang 120 mm/Octagonal/118 mm/2-Gang 120 mm). Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the dimensions without packaging (h x w x d) [mm(in.)] of AirEngine 5760-22W?
The listed dimensions without packaging (h x w x d) [mm(in.)] for AirEngine 5760-22W is 170 mm x 86 mm x 74 mm (6.69 in. x 3.39 in. x 2.91 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is AirEngine 5760-22W available from YYST Global?
YYST Global can help check availability, lead time and configuration for AirEngine 5760-22W. Contact the sales team before ordering to confirm current stock.
What is the price of AirEngine 5760-22W?
The current reference price for AirEngine 5760-22W is US$ 400.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
