HP J9420A HPE MSM Controller Series

J9420A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

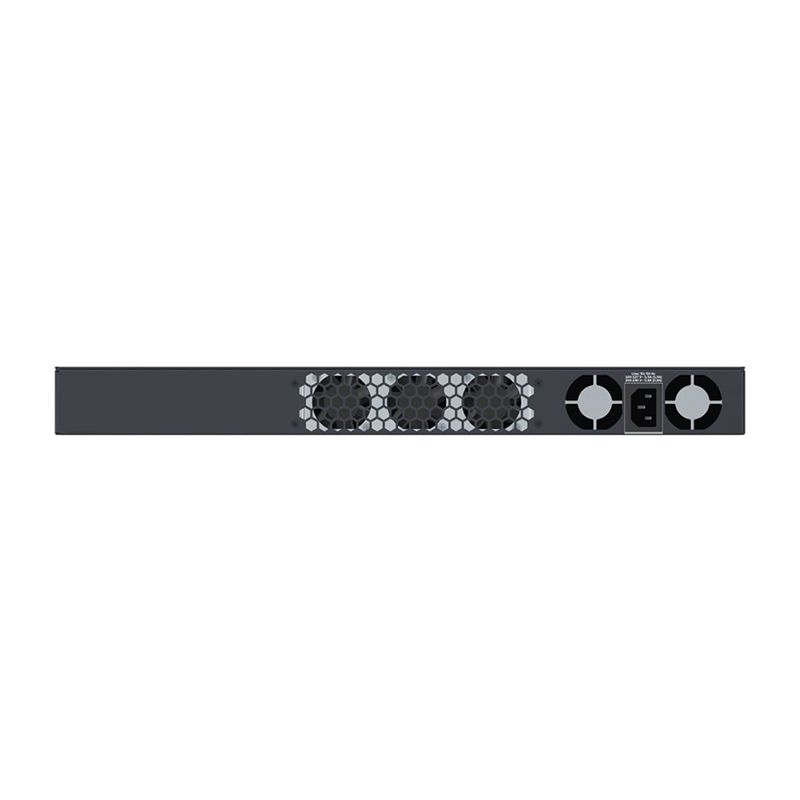

Product name: J9420A HP MSM760 Premium Mobility Controller. Category: HPE MSM Controller Series. Condition: New Factory Sealed.

I/O ports and slots	2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only1 RJ-45 serial console port
Physical characteristics	Dimensions: 17.32(w) x 15.38(d) x 1.75(h) in (43.99 x 39.07 x 4.45 cm) (1U height) Weight: 13.45 lb (6.1 kg)
Mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Environment	Operating temperature: 41°F to 104°F (5°C to 40°C) Operating relative humidity: 15% to 80%, noncondensing Nonoperating/Storage temperature: -40°F to 149°F (-40°C to 65°C) Nonoperating/Storage relative humidity: 15% to 80%, noncondensing
Electrical characteristics	Frequency: 50/60 Hz Maximum heat dissipation: 434 BTU/hr (457.87 kJ/hr) AC Voltage: 100-240 VAC Current: 2/1 A Maximum power rating: 127 W
Safety	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1
Emissions	FCC part 15 Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003
Features	Supported - IEEE 802.11 a/b/g/n and .11ac access points and devices - 40 to 200 access points and/or access devices (in increments of 10 or 40) - MSM firmware releases prior to MSM v5.7: 1,000 simultaneous guest access users upgradable in increments of 250 per 40-AP license pack, up to a maximum of 2,000 guest access users- Unlimite d simultaneous users - MSM v5.7 and later: 2,000 simultaneous guest access users with base product Included services  - Plug-and-play AP management and WLAN management - Guest access - Captive portal - PCI DSS compliance for wireless PoS traffic - Support for Real-Time Location Services (RTLS) - Advanced fast roaming with VoWLAN support - Mobility Traffic Manager (MTM) - Support for up to 64 VSC profiles - Unified policy enforcement and network visibility - Virtual controller (up to five MSM760 Premium Mobility controllers and 800 APs with resiliency)
