H3C EWP-WX2560H Wireless Controller with Gigabit Combo Interfaces
- 763 412 7282
- +86 010 69614620
EWP-WX2560H Overview
Count combo interfaces correctly
The WX2560H has eight copper Ethernet connections, but its two SFP positions do not create two additional independent interfaces. Each SFP position forms a combo interface with a corresponding copper port. Prepare a port schedule that selects the needed medium for those shared interfaces and checks compatible transceivers separately.
Separate AP control from AP power
H3C’s PoE compatibility table marks WX2560H as not supporting PoE. Plan a suitable external power source for the access points instead of transferring the PoE capability of WX2510H-PWR to this model.
Check licensing and operating limits
The manufacturer comparison lists zero default managed APs, a maximum of 128 managed APs and 256 configured APs. Confirm the installed entitlement and controller/AP software compatibility; a hardware maximum is not proof that licenses are included. Record the forwarding design and expected load for review rather than treating a published maximum as a performance guarantee.
Confirm the delivered chassis
Match the quoted article to EWP-WX2560H, not LI or WiNet variants, and confirm condition, mounting items and support eligibility. Have the site team verify the actual power input from the offered unit and model-specific installation documentation.
Manufacturer evidence: WX2560H installation guide, ports and combo arrangement; PoE compatibility restrictions; Controller capacity comparison; Exact model/code mapping.
EWP-WX2560H Specification
| Product code | EWP-WX2560H |
|---|---|
| Copper WAN / LAN | 2 GE WAN and6 GE LAN |
| Fiber connection | 2 GE SFP, shared combo interfaces |
| PoE | Not supported on WX2560H |
| Default / maximum managed APs | 0 default; maximum128 with appropriate licenses |
| Maximum configured APs | 256 |
| Deployment check | Exact chassis, entitlement, transceivers and software compatibility |
EWP-WX2560H Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
EWP-WX2560H FAQ
What is EWP-WX2560H?
H3C EWP-WX2560H Wireless Controller with Gigabit Combo Interfaces is a H3C Wireless product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What are the power requirements for EWP-WX2560H?
For EWP-WX2560H, the manufacturer specification lists poe as Not supported on WX2560H.
Is EWP-WX2560H available from YYST Global?
Contact YYST Global to confirm availability for EWP-WX2560H, the required quantity, exact configuration, delivery destination and current lead time before ordering. A product listing does not confirm current inventory.
What is the price of EWP-WX2560H?
The current reference price for EWP-WX2560H is US$ 863.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related EWP-WX2560H

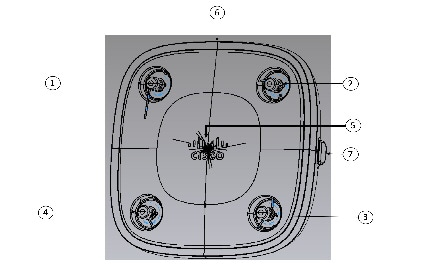

C9115AXE-EWC-Q - Cisco Catalyst 9115AXE External-Antenna Wi-Fi 6 Access Point
