FORTINET FAP-233G-B FortiAP FAP-233G
- 763 412 7282
- +86 010 69614620
FAP-233G-B Buying Guide

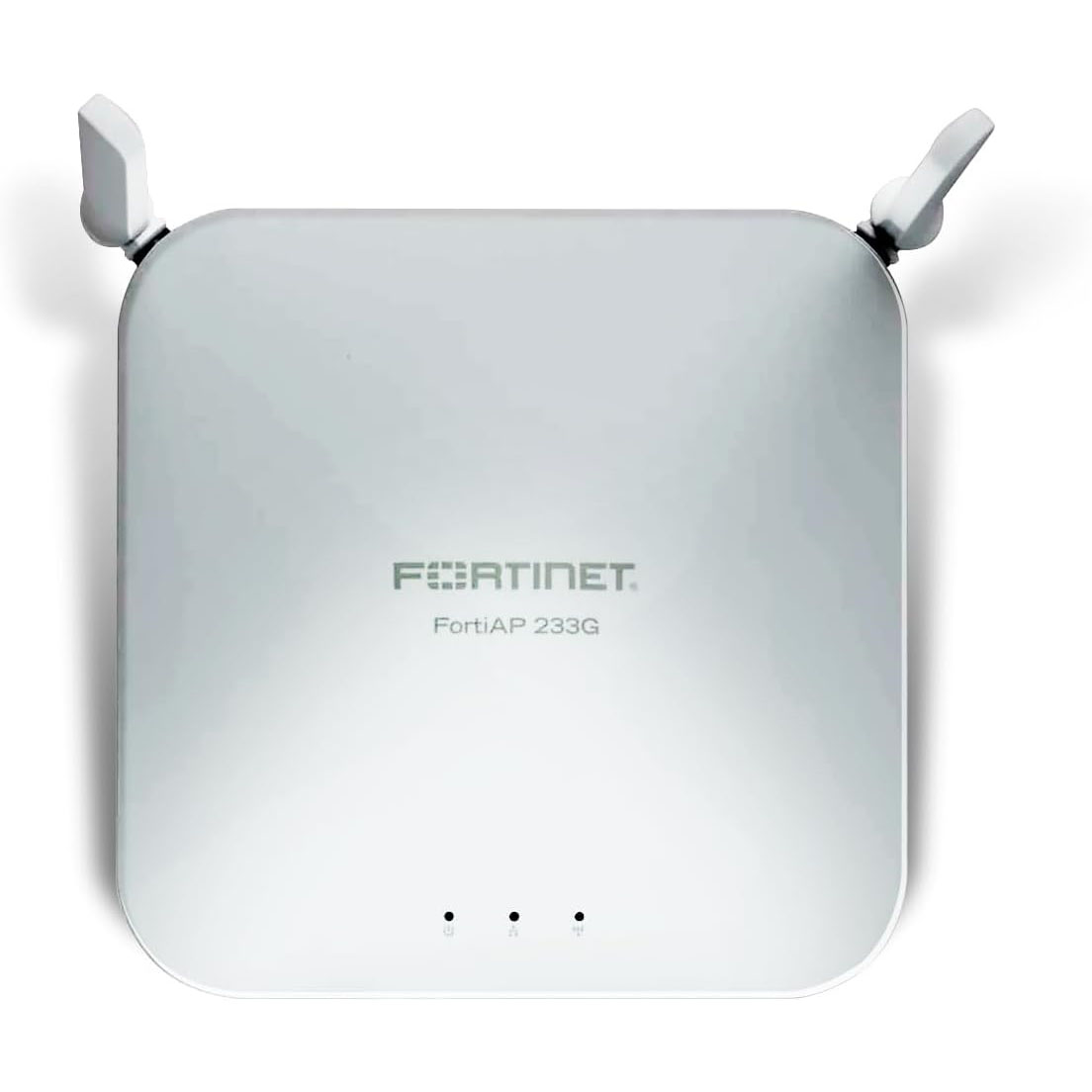

FAP-233G-B - FortiAP 233G Tri radio, External Antenna Indoor Wi-Fi 6E is listed by YYST Global for buyers looking for FORTINET FortiAP FAP-233G. FAP-233G-B FORTINET enterprise IT hardware. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 320.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: FAP-233G-B
- Brand: FORTINET
- Category: FortiAP FAP-233G
- Condition: New Factory Sealed
- Reference price: US$ 320.00
FAP-233G-B Overview
FAP-233G-B is a FORTINET enterprise IT hardware listed by YYST Global for enterprise hardware procurement, replacement projects and infrastructure expansion. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-233G-B - FortiAP 233G Tri radio, External Antenna Indoor Wi-Fi 6E. Category: FortiAP FAP-233G. Condition: New Factory Sealed.
FAP-233G-B Specification
| Hardware | ||
| Hardware Type | Indoor AP | |
| Number of Radios | 3 + 1 BLE | |
| Number of Antennas | External x2 Dual band Wi-Fi + x2 Triband Wi-Fi & Scanning + Internal 1 Single band 2.4GHz BLE/ZigBee | |
| Antenna Type and Peak Gain | Omni Directional antenna. Dual band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz. Tr-band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz & 4.5dBi for 6GHz band BLE PIFA antenna. Single band: 4.0dBi for 2.4GHz | |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850, 5.925–6.425, 6.425–6.525, 6.525–7, 5.925–6.875, 6.875–7.125 | |
| Radio 1 Capabilities | Frequency band: 2.4GHz | |
| Channel width: 20/40MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service | ||
| Radio 2 Capabilities | Frequency band: 5.0GHz | |
| Channel width: 20/40/80/80+80MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service | ||
| Radio 3 Capabilities | Frequency bands: 6.0GHz | |
| Channel width: 20/40/80/160MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service and scanning | ||
| Maximum Data Rate | Radio 1: up to 574 Mbps | |
| Radio 2: up to 1201 Mbps | ||
| Radio 3: : Up to 2401 Mbps | ||
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power | |
| Interfaces | 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Portt | |
| Power over Ethernet (PoE) | 1 x 802.3at PoE default | |
| Simultaneous SSIDs | Up to 24 | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist | |
| Maximum Tx Power (Conducted) | Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined) | |
| Radio 2: 23 dBm / 158 mW (2 chains combined) | ||
| Radio 3: 6GHz: 21 dBm 80 mW (2 chains combined @ 160MHz BW) | ||
| Kensington Lock | Yes | |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az | |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh | |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) | |
| Cellular Co-existence | Yes | |
| LED Off Mode | Yes | |
| Advanced 802.11 Features | ||
| OFDMA | Yes | |
| Spatial Reuse (BSS Coloring) | Yes | |
| UL MU-MIMO | Yes | |
| DL-MU-MIMO | Yes | |
| Enhanced Target Wake Time (TWT) | Yes | |
| ZeroWait DFS | No | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan radio modes | Background, Dedicated | |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 7.18 x 7.18 x 2.12 inches (182.4 x 182.4 x 54.0 mm) | |
| Weight | 1.95 lbs (0.88 kg) | |
| Mounting Options | Ceiling, T-Rail, and Wall | |
| Included Accessories | Standard Mount kit for Ceiling, T-Rail, and Wall | |
| Environment | ||
| Power Supply | SP-FAP400-PA-XX or 802.3at PoE (GPI-130) | |
| Power Consumption (Maximum) | Depends on PoE connected | |
| Humidity | 5 - 90% non condensing | |
| Operating / Storage Temperature | 32°–122°F (0° - 50°C) / -22°–158°F (-30°–70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | Yes | |
| Mean Time Between Failures | > 10 Years | |
| IP Rating | N/A | |
| Surge Protection Built In | Yes | |
| Hit-less PoE Failover | N/A | |
| Certifications | ||
| WiFi Alliance Certified | Yes | |
| DFS | CE | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | |
FAP-233G-B Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
FAP-233G-B FAQ
What is FAP-233G-B used for?
FAP-233G-B - FortiAP 233G Tri radio, External Antenna Indoor Wi-Fi 6E is a FORTINET accessory or component in the FortiAP FAP-233G category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with FAP-233G-B?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with FAP-233G-B?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of FAP-233G-B?
The current reference price for FAP-233G-B is US$ 320.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
