FORTINET FAP-233G-I FortiAP FAP-233G
- 763 412 7282
- +86 010 69614620
FAP-233G-I Buying Guide
FAP-233G-I - Fortinet Wireless Access Point - FortiAP 233G Series is listed by YYST Global for buyers looking for FORTINET FortiAP FAP-233G. FAP-233G-I FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 320.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-233G-I
- Brand: FORTINET
- Category: FortiAP FAP-233G
- Condition: New Factory Sealed
- Reference price: US$ 320.00
FAP-233G-I Overview
FAP-233G-I is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-233G-I - Fortinet Wireless Access Point - FortiAP 233G Series. Category: FortiAP FAP-233G. Condition: New Factory Sealed.
FAP-233G-I Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-233G-I |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| Hardware | ||
| Hardware Type | Indoor AP | |
| Number of Radios | 3 + 1 BLE | |
| Number of Antennas | External x2 Dual band Wi-Fi + x2 Triband Wi-Fi & Scanning + Internal 1 Single band 2.4GHz BLE/ZigBee | |
| Antenna Type and Peak Gain | Omni Directional antenna. Dual band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz. Tr-band: 4.5 dBi for 2.4GHz, 4.5 dBi for 5 GHz & 4.5dBi for 6GHz band BLE PIFA antenna. Single band: 4.0dBi for 2.4GHz | |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850, 5.925–6.425, 6.425–6.525, 6.525–7, 5.925–6.875, 6.875–7.125 | |
| Radio 1 Capabilities | Frequency band: 2.4GHz | |
| Channel width: 20/40MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service | ||
| Radio 2 Capabilities | Frequency band: 5.0GHz | |
| Channel width: 20/40/80/80+80MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service | ||
| Radio 3 Capabilities | Frequency bands: 6.0GHz | |
| Channel width: 20/40/80/160MHz | ||
| Modulation: BPSK, QPSK, 64/256/1024 QAM | ||
| MIMO Chains: 2x2 Service and scanning | ||
| Maximum Data Rate | Radio 1: up to 574 Mbps | |
| Radio 2: up to 1201 Mbps | ||
| Radio 3: : Up to 2401 Mbps | ||
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power | |

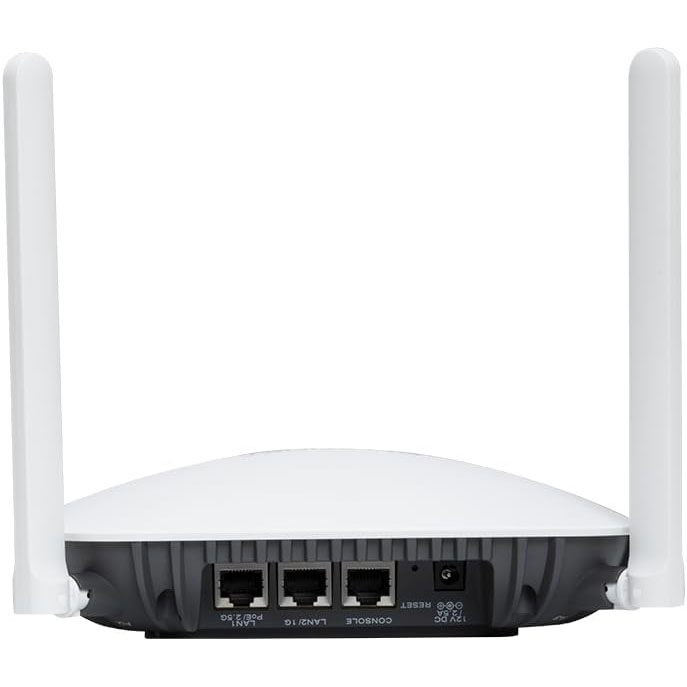

| Interfaces | 1 100/1000/2500 Base-T RJ45, 1 10/100/1000 Base-T RJ45, 1x Type 3.0 USB, 1 RS-232 RJ45 Serial Portt | |
| Power over Ethernet (PoE) | 1 x 802.3at PoE default | |
| Simultaneous SSIDs | Up to 24 | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist | |
| Maximum Tx Power (Conducted) | Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined) | |
| Radio 2: 23 dBm / 158 mW (2 chains combined) | ||
| Radio 3: 6GHz: 21 dBm 80 mW (2 chains combined @ 160MHz BW) | ||
| Kensington Lock | Yes | |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az | |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh | |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) | |
| Cellular Co-existence | Yes | |
| LED Off Mode | Yes | |
| Advanced 802.11 Features | ||
| OFDMA | Yes | |
| Spatial Reuse (BSS Coloring) | Yes | |
| UL MU-MIMO | Yes | |
| DL-MU-MIMO | Yes | |
| Enhanced Target Wake Time (TWT) | Yes | |
| ZeroWait DFS | No | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan radio modes | Background, Dedicated | |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 7.18 x 7.18 x 2.12 inches (182.4 x 182.4 x 54.0 mm) | |
| Weight | 1.95 lbs (0.88 kg) | |
| Mounting Options | Ceiling, T-Rail, and Wall | |
| Included Accessories | Standard Mount kit for Ceiling, T-Rail, and Wall | |
| Environment | ||
| Power Supply | SP-FAP400-PA-XX or 802.3at PoE (GPI-130) | |
| Power Consumption (Maximum) | Depends on PoE connected | |
| Humidity | 5 - 90% non condensing | |
| Operating / Storage Temperature | 32°–122°F (0° - 50°C) / -22°–158°F (-30°–70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | Yes | |
| Mean Time Between Failures | > 10 Years | |
| IP Rating | N/A | |
| Surge Protection Built In | Yes | |
| Hit-less PoE Failover | N/A | |
| Certifications | ||
| WiFi Alliance Certified | Yes | |
| DFS | CE | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | |
FAP-233G-I Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-233G-I FAQ
What is FAP-233G-I?
FAP-233G-I - Fortinet Wireless Access Point - FortiAP 233G Series is a FORTINET FortiAP FAP-233G product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-233G-I?
The listed datasheet series for FAP-233G-I is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-233G-I?
The listed exact model for FAP-233G-I is FAP-233G-I. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-233G-I available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-233G-I. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-233G-I?
The current reference price for FAP-233G-I is US$ 320.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
