HPE Aruba R8N85A CX 6000 48-Port PoE+ 370 W Switch
- 763 412 7282
- +86 010 69614620
R8N85A Overview
Forty-eight connections do not imply forty-eight full-power loads
R8N85A supports IEEE 802.3af and 802.3at powered devices, but its 370 W PoE allowance is shared. Prepare a device-by-device power schedule before filling all 48 access ports. A design with enough Ethernet sockets can still exceed the available endpoint power.
Keep the uplink speed in the design
The four SFP connections on this CX 6000 model are Gigabit uplinks. They are not the 10G uplinks found on some other Aruba families. Check the aggregate access traffic, far-end speed and selected optical modules rather than assuming that every SFP slot supports the same rates.
Read the A-revision hardware column
The official R8N85A specification column gives 104 Gbps switching capacity, 77.3 Mpps throughput, 4 GB DDR3 and 16 GB eMMC. The model label ends in A. A series maximum or a later B-revision description must not replace the supplied unit’s own hardware identity.
Allow space for the fixed-fan chassis
Dimensions are 4.39 cm high, 44.2 cm wide and 30.48 cm deep; the listed configuration weight is 5.02 kg. The power supply and fans are fixed. Check rack clearances and service arrangements with those constraints in mind instead of assuming hot-swappable power or fan modules.
Procurement information
Specify R8N85A, the endpoint power total, four-uplink allocation, optical modules, mounting needs and local power cord. Ask for the actual hardware condition, installed software and support eligibility. Separate any management subscription from the hardware quotation; no subscription, optics, stock level or transferable warranty is promised here.
R8N85A Specification
| Exact model | R8N85A |
|---|---|
| Access ports | 48 x 10/100/1000BASE-T |
| Optical uplinks | 4 x 1G SFP |
| PoE | IEEE 802.3af / 802.3at; shared 370 W Class 4 budget |
| Switching capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Memory | 4 GB DDR3 |
| Storage | 16 GB eMMC |
| Height x width x depth | 4.39 x 44.2 x 30.48 cm |
| Configuration weight | 5.02 kg |
| Power and cooling | Fixed supply and fixed fans |
| Local interfaces | USB-C console; USB Type-A host |
Document/Firmware Download
HPE CX 6000 QuickSpecs, revision-A model tables in version 15; official CX 6000 port-type reference.
R8N85A Warranty
 | Product Quotation |  | Condition and Packaging |
 | Return Eligibility |  | Returns and Replacement |
 | Shipping Arrangements |  | Warranty Terms |
R8N85A FAQ
What is R8N85A?
HPE Aruba R8N85A CX 6000 48-Port PoE+ 370 W Switch is a ARUBA Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What interfaces and ports does R8N85A provide?
For R8N85A, the manufacturer specification lists access ports as 48 x 10/100/1000BASE-T.
What are the power requirements for R8N85A?
For R8N85A, the manufacturer specification lists poe as IEEE 802.3af / 802.3at; shared 370 W Class 4 budget.
What is the switching capacity of R8N85A?
For R8N85A, the manufacturer specification lists switching capacity as 104 Gbps.
Is R8N85A available from YYST Global?
Contact YYST Global to confirm availability for R8N85A, the required quantity, exact configuration, delivery destination and current lead time before ordering. A product listing does not confirm current inventory.
Related products
Related R8N85A
HPE Aruba R8N89A CX 6000 12-Port PoE+ 139 W Switch
R8N89A is the fanless CX 6000 12G Class4 PoE model with a shared 139 W budget, two additional Gigabit ports and two 1G SFP connections. HPE specifies 32 Gbps switching capacity, 23.8 Mpps throughput and 4 GB DDR3 for this A-revision model.
HPE Aruba R8N88A CX 6000 24-Port Gigabit Switch with 4 SFP Uplinks
HPE Aruba R8N88A is the CX 6000 24G 4SFP switch: 24 Gigabit copper connections and four 1G optical uplinks. Its exact-model table lists 56 Gbps switching capacity, 41.6 Mpps throughput and 4 GB DDR3 memory.
HPE Aruba R8N87A 6000 24G Class 4 PoE 4SFP Switch
R8N87A is the exact HPE Aruba 6000 switch order described by the official warranty guide as 24G, CL4 and 4SFP.
R8N86A-HPE Aruba Networking CX 6000 48G 4SFP Switch
R8N86A is listed in Aruba Switches. Check model compatibility, current stock, condition and quotation details.
R8P13A-HPE Aruba Networking CX 10000‑48Y6C-Switch Series
R8P13A is listed in Aruba Switches. Check model compatibility, current stock, condition and quotation details.
HPE Aruba JL581A CX 8320 48-Port Copper Switch Bundle
JL581A is an Aruba CX 8320 bundle: 48 copper ports, 6 QSFP+ uplinks, 2 PSUs and 5 fans. Brand logo reference. Request a quote.

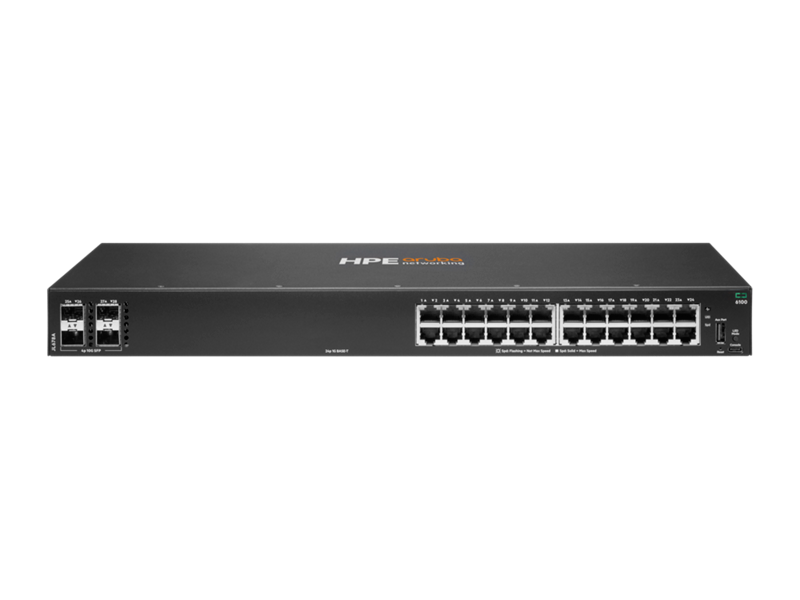

HPE Aruba JL678A CX 6100 24G 4SFP+ Non-PoE Switch
