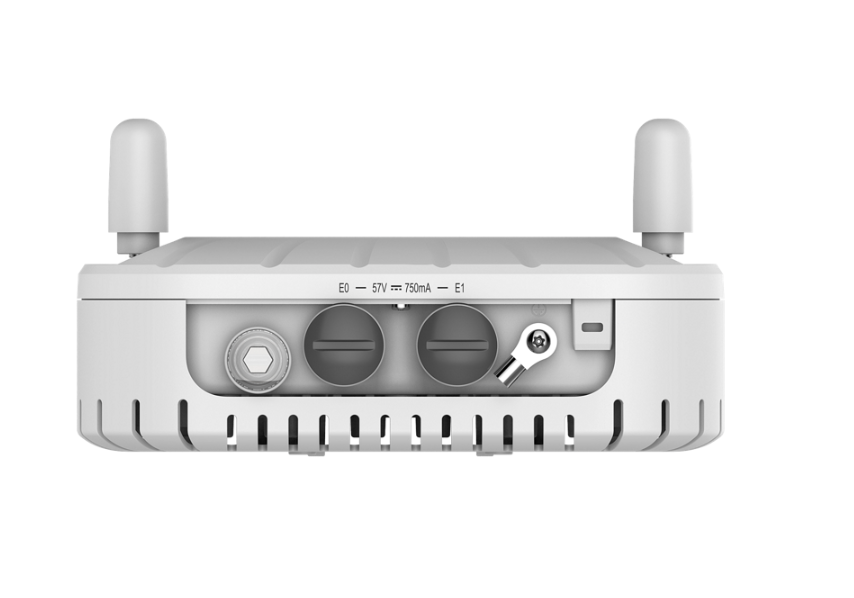

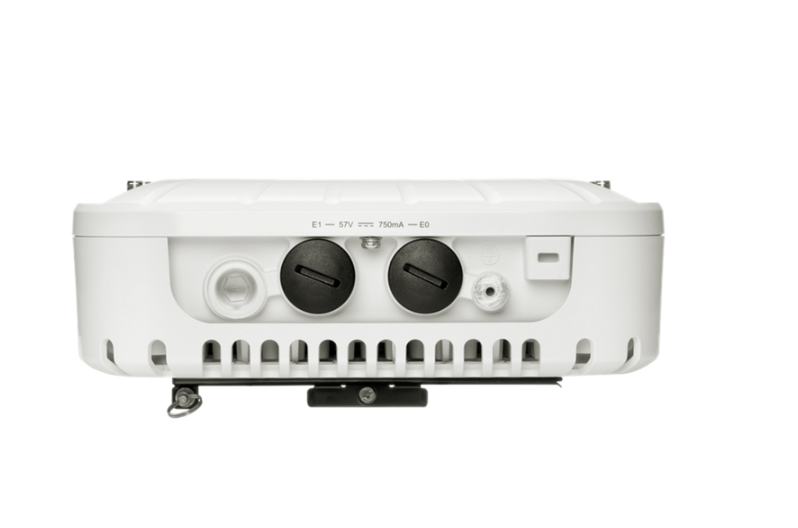

ARUBA R4H07A HPE 518 Series Hardened Access Points

R4H07A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: R4H07A-Aruba AP‑518 (RWF1) Dual Radio 4x4/2x2 Wi‑Fi 6 TAA Outdoor. Category: HPE Aruba 518 Series Hardened Access Points. Condition: New Factory Sealed.

CertificationsCB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi CERTIFIED™ 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with Wave 2 features)
Passpoint® (Release 2) with HPE Aruba Networking Operating System and InstantOS
Wi-Fi CERTIFIED Location™

RegulatoryFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2

Wi-Fi antenna5 GHz: Four RP-SMA connectors for external antenna operation
2.4 GHz: Two RP-SMA connectors for external antenna operation

PortsE0: HPE Smart Rate port (RJ-45)
E1: 100/1000BASE-T (RJ-45)
USB-C console interface

Power consumptionMaximum (worst-case) power consumption
PoE powered (dual ports): 32.0W
PoE powered (single port, full function): 26.1W
Maximum (worst-case) power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE)
Maximum (worst-case) power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
The AP supports Power over Ethernet (PoE) on port E0 and/or E1

Radio coverageAP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

Detailed product descriptionFor dense mobile and IoT environments
This high-performance, ruggedized access point is designed to simultaneously serve multiple clients and traffic types in dense environments utilizing the Wi-Fi 6 standard.

The 518 Series delivers ruggedized APs for connectivity across the harshest environments.

DifferentiatorHigh-performance connectivity for harsh weather or temperature environments. Deployed as IoT platforms, they support multiple wireless mediums such as Bluetooth, Zigbee®, and custom applications. With innovative features such as Air Slice and Wi-Fi 6-aware ClientMatch, enterprises can provide optimized user experiences. This SKU is for rest-of-world countries not given a specific regulatory domain. Used for high-security compliance.

Weight1.5 kg (3.3 lbs)

Dimensions75 x 220 x 220 mm (H x W x D) (2.5 x 8.5 x 8.5 in (H x W x D))
