ARUBA Q9H57A HPE 510 Series Campus Access Points
- 763 412 7282
- +86 010 69614620
Q9H57A Buying Guide
Q9H57A HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax AP is listed by YYST Global for buyers looking for ARUBA HPE Aruba 510 Series Campus Access Points. Q9H57A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 495.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: Q9H57A
- Brand: ARUBA
- Category: HPE Aruba 510 Series Campus Access Points
- Condition: New Factory Sealed
- Reference price: US$ 495.00
Q9H57A Overview
Q9H57A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: Q9H57A HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax AP. Category: HPE Aruba 510 Series Campus Access Points. Condition: New Factory Sealed.
Q9H57A Specification
| Datasheet series | HPE Aruba Access Points |
| Exact model | Q9H57A |
| Product role | Enterprise wireless access point; confirm radio generation, antenna, regulatory domain and mounting kit |
| Management check | Confirm Aruba Central, controller, AirWave or local management requirements |
| Procurement check | Confirm country domain, accessories, license/support term and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | HPE Aruba access points official product page |
| System Specifications | ||
| Hardware variants | • AP-514: External antenna models | |
| Wi-Fi Antennas | • AP-514: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3 for 5 GHz; 2.4 GHz radio uses A0/A1 and chains 0/1 only). Worst -case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.3 dB in 2.4 GHz and 1.7 dB in 5 GHz. | |
| Additional Interfaces | • E0: HPE Smart rate port (RJ-45, maximum negotiated speed 2.5 Gbps) − Auto-sensing link speed (100/1000/2500BASE-T) and MDI/ MDIX − 2.5 Gbps speeds comply with NBase-T and 802.3bz specifications − PoE-PD: 48 VDC (nominal) 802.3af/at/bt (class 3 or higher) − 802.3az Energy Efficient Ethernet (EEE) • E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) − Auto-sensing link speed and MDI/MDIX − 802.3az Energy Efficient Ethernet (EEE) • Link Aggregation (LACP) support between both network ports for redundancy and increased capacity • DC power interface: 12 VDC (nominal, +/-5%), accepts 2.1 mm/5.5 mm center-positive circular plug with 9.5mm length • USB 2.0 host interface (Type A connector) − Capable of sourcing up to 1A/5W to an attached device • Bluetooth 5 and Zigbee (802.15.4) radio (2.4 GHz) − Bluetooth 5: up to 8 dBm transmit power (class 1) and -95 dBm receive sensitivity − Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity − Integrated vertically polarized omnidirectional antenna with roughly 30° downtilt and peak gain of 3.5 dBi (AP-515) or 4.9 dBi (AP-514) • Visual indictors (two multi-color LEDs): for System and Radio status • Reset button: factory reset, LED mode control (normal/off) • Serial console interface (proprietary, micro-B USB physical jack) • Kensington security slot |
|
| Regulatory Model Numbers | • AP-514: APIN0514 | |
| Physical Specifications | ||
| Dimensions | unit, excluding mount bracket: − 200 mm (W) x 200 mm (D) x 46 mm (H)/7.9” (W) x 7.9” (D) x 1.8” (H) shipping − 230 mm (W) x 220 mm (D) x 72 mm (H)/9.1” (W) x 8.7” (D) x 2.8” (H) |
|
| Weight | Unit, including single-gang wall box mount plate: − 810g/28.5 oz Shipping: − 1010g/35.5 oz |
|
| Electrical Specifications | ||
| Maximum (Worst-Case) power consumption | − DC powered: 16.0W − PoE powered (802.3af, IPM enabled): 13.5W − PoE powered (802.3at/bt): 20.8W − idle mode: 11W (PoE or DC) − in deep-sleep mode: 1W (PoE or DC) Note • The AP supports direct DC power and Power over Ethernet (PoE; on port E0) • When both power sources are available, DC power takes priority over PoE • Power sources are sold separately; see the ordering Information section below for details • When powered by DC or 802.3at (class 4)/802.3bt (class 5) PoE, the access point will operate without restrictions. • When powered by 802.3af (class 3) PoE and with the IPM feature enabled, the access point will start up in unrestricted mode, but it may apply restrictions depending on the PoE budget and actual power. What IPM restrictions to apply, and in what order, is programmable. • Operating the access point with an 802.3af (class 3 or lower) PoE source and IPM disabled is not supported (except for AP staging; no radios will be enabled). • All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the access point is up to 6.5W. |
|
| Environmental Specifications | ||
| Operating temperature | − Temperature: 0° C to +50°C/+32°F to +122°F − Humidity: 5% to 93% non-condensing − AP is plenum rated for use in air-handling spaces − ETS 300 019 class 3.2 environments |
|
| Storage and transportation conditions | − Temperature: -40°C to +70°C/-40°F to +158°F − Humidity: 5% to 93% non-condensing − ETS 300 019 classes 1.2 and 2.3 environments |
|
| Reliability | Mean Time Between Failure (MTBF): 560,000 hrs (64 yrs) at +25°C operating temperature. | |
| Safety and Regulatory Certifications | ||
| Certifications | UL2043 plenum rating Wi-Fi Alliance: Wi-Fi Certified a, b, g, n, ac Wi-Fi Certified ax¹ WPA, WPA2 and WPA3 ? Enterprise, Personal WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband Wi-Fi Location² Passpoint (Release 2) Bluetooth SIG Ethernet Alliance (POE, PD device, class 4) |
|
| Regulatory Compliance | FCC/ISED • CE Marked • RED Directive 2014/53/EU • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU • UL/IEC/EN 62368-1 • EN 60601-1-1, EN60601-1-2 • Railway Certs (AP-515 Only): EN 50155:2017 — Railway Applications • EN 50121-1:2017 — Railway EMC − EN 50121-3-2 — Railway EMC − EN 50121-4:2016 — Railway Immunity − IEC 61373 ed2:2008 — Railway Shock and Vibration For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative. |
|
| Wi-Fi Radio Specifications | ||
| Access point type | Indoor, dual radio, 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO | |
| Software-Configurable dual radio | Supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) • 5 GHz radio: − Four spatial streams Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max) − Two spatial streams Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) − Four spatial streams Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max) − Four spatial streams Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) • 2.4 GHz radio: − Two spatial streams Single User (SU) MIMO for up to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices (max) − Two spatial streams Single User (SU) MIMO for up to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical) |
|
| Support for client devices per radio |
Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio | |
| Supported frequency bands (country-specific restrictions apply | − 2.400 to 2.4835 GHz ISM − 5.150 to 5.250 GHz U-NII-1 − 5.250 to 5.350 GHz U-NII-2A − 5.470 to 5.725 GHz U-NII-2C − 5.725 to 5.850 GHz U-NII-3/ISM |
|
| Available channels | Dependent on configured regulatory domain | |
| RF Spectrum | Dynamic Frequency Selection (DFS) optimizes the use of available RF spectrum Including Zero-Wait DFS (ZWDFS) to accelerate channel changes | |
| Supported radio technologies | − 802.11b: Direct-Sequence Spread-Spectrum (DSSS) − 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) − 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80 MHz channel) |
|
| Supported modulation types | − 802.11b: BPSK, QPSK, CCK − 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) − 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) − 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM − 802.11n high-throughput (HT) support: HT20/40 − 802.11ac very high throughput (VHT) support: VHT20/40/80/160 − 802.11ax high efficiency (HE) support: HE20/40/80/160 |
|
| Supported data rates (Mbps) | − 802.11b: 1, 2, 5.5, 11 − 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 − 802.11n (2.4 GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) − 802.11n (5 GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40) − 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160) − 802.11ax (2.4 GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) − 802.11ax (5 GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160) • 802.11n/ac/ax packet aggregation: A-MPDU, A-MSDU |
|
| Additional Wi-Fi Features | Transmit power: Configurable in increments of 0.5 dBm • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): − 2.4 GHz band: +21 dBm (18 dBm per chain) − 5 GHz band: +24 dBm (18 dBm per chain) • Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks • Maximum Ratio Combining (MRC) for improved receiver performance • Cyclic Delay/Shift Diversity (CDD/CSD) for improved downlink RF performance • Space-Time Block Coding (STBC) for increased range and improved reception • Low-Density Parity Check (LDPC) for high-efficiency error correction and increased throughput • Transmit Beam-Forming (TxBF) for increased signal reliability and range • 802.11ax Target Wait Time (TWT) to support low-power client devices • 802.11mc Fine Timing Measurement (FTM) for precision distance ranging |
|
| RF Performance table | ||
| Specifications | Maximum transmit power (dBm) per transmit chain | Receiver sensitivity (dBm) per receive chain |
| 802.11b 2.4 GHz | ||
| 1 Mb/s | 18 | -96 |
| 11 Mb/s | 18 | -88 |
| 802.11g 2.4 GHz | ||
| 6 Mb/s | 18 | -93 |
| 54 Mb/s | 17 | -75 |
| 802.11n HT20 2.4 GHz | ||
| MCS0 | 18 | -93 |
| MCS7 | 16 | -75 |
| 802.11ax HE20 2.4 GHz | ||
| MCS0 | 18 | -92 |
| MCS11 | 14 | -62 |
| 802.11a 5 GHz | ||
| 6 Mb/s | 18 | -93 |
| 54 Mb/s | 17 | -75 |
| 802.11n HT20 5 GHz | ||
| MCS0 | 18 | -93 |
| MCS7 | 16 | -73 |
| 802.11n HT40 5 GHz | ||
| MCS0 | 18 | -90 |
| MCS7 | 16 | -70 |
| 802.11ac VHT20 5 GHzb | ||
| MCS0 | 18 | -93 |
| MCS9 | 16 | -68 |
| 802.11ac VHT40 5 GHz | ||
| MCS0 | 18 | -90 |
| MCS9 | 16 | -65 |
| 802.11ac VHT80 5 GHz | ||
| MCS0 | 18 | -87 |
| MCS9 | 16 | -62 |
| 802.11ac VHT160 5 GHz | ||
| MCS0 | 18 | -84 |
| MCS9 | 18 | -59 |
| 802.11ax HE20 5 GHz | ||
| MCS0 | 18 | -90 |
| MCS11 | 14 | -60 |
| 802.11ax HE40 5 GHz | ||
| MCS0 | 18 | -87 |
| MCS11 | 14 | -57 |
| 802.11ax HE80 5 GHz | ||
| MCS0 | 18 | -84 |
| MCS11 | 14 | -54 |
| 802.11ax HE160 5 GHz | ||
| MCS0 | 18 | -81 |
| MCS11 | 13 | -51 |
Q9H57A Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
Q9H57A FAQ
What is Q9H57A?
Q9H57A HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax AP is a ARUBA HPE Aruba 510 Series Campus Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of Q9H57A?
The listed datasheet series for Q9H57A is HPE Aruba Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of Q9H57A?
The listed exact model for Q9H57A is Q9H57A. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is Q9H57A available from YYST Global?
YYST Global can help check availability, lead time and configuration for Q9H57A. Contact the sales team before ordering to confirm current stock.
What is the price of Q9H57A?
The current reference price for Q9H57A is US$ 495.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related Q9H57A
JX990A - Aruba AP-AC-12V30B Power Adapter
JX990A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
R3K00A - HPE Aruba AP-AC2-12B Power Adapter
R3K00A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
JX990ACM - Aruba CM AP-AC-12V30B Power Adapter
JX990ACM ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
R3K00ACM - HPE Aruba CM AP-AC2-12B Power Adapter
R3K00ACM ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
JY728ACM - HPE Aruba CM AP-CBL-SERU AP Console Adapter Cable
JY728ACM ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
JZ370A - HPE Aruba AP-MNT-MP10-A Mounting Bracket
JZ370A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.
Q9G70ACM - HPE Aruba CM AP-MNT-MP10-C Mounting Bracket
Q9G70ACM ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

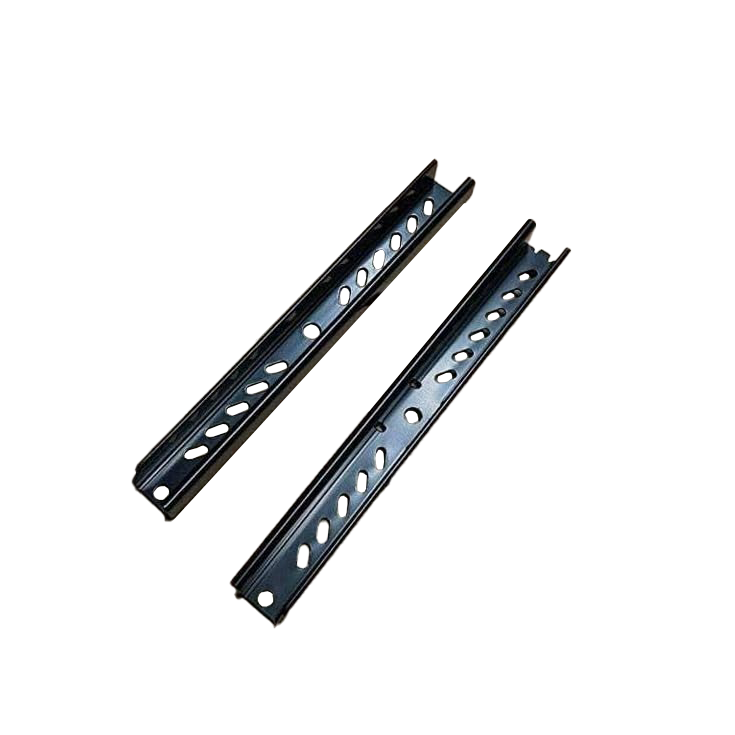

R3J16ACM - HPE Aruba CM AP-MNT-B Mount Bracket Kit
