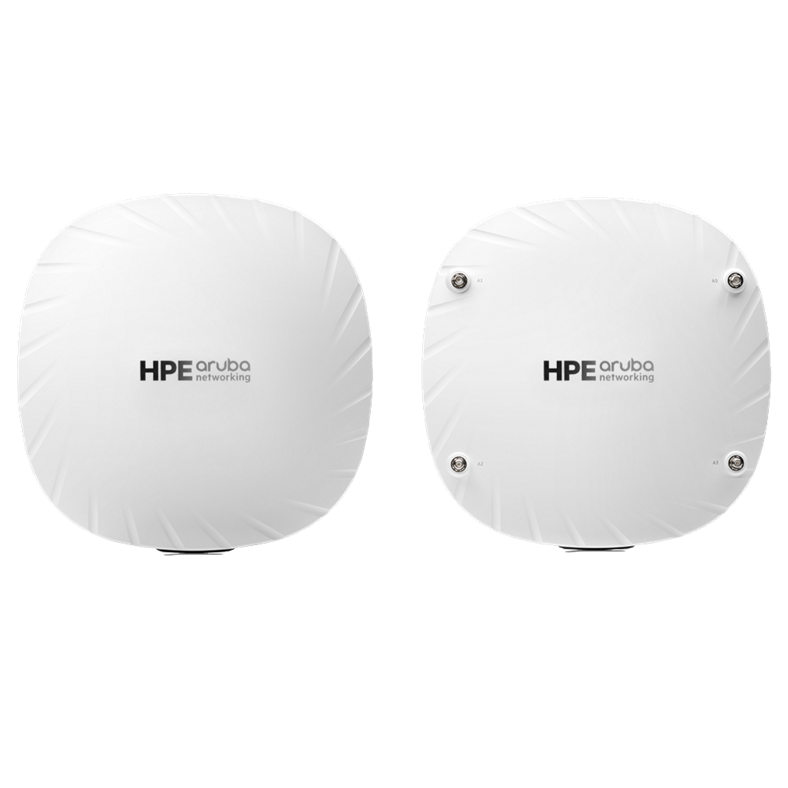

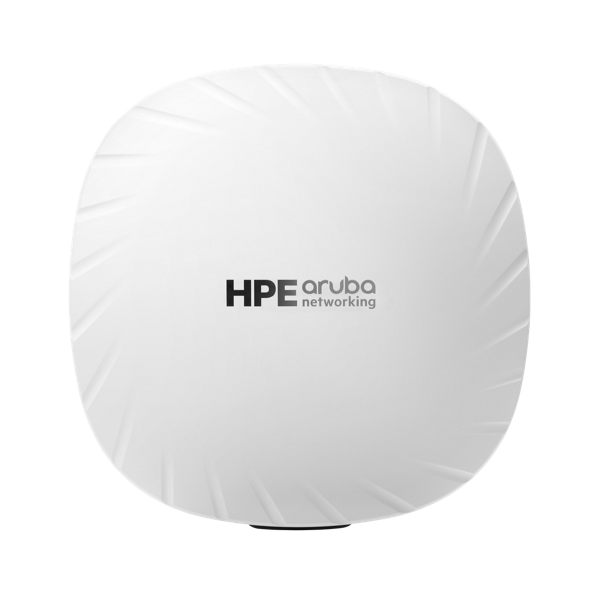

ARUBA JZ344A HPE Networking Instant On Access Points AP22

JZ344A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: JZ344A - HPE ArubaAP‑535 (IL) TAA Dual Radio 4x4 802.11ax Campus AP. Category: HPE Networking Instant On Access Points AP22. Condition: New Factory Sealed.

CertificationsUL2043 plenum rating
Wi-Fi Alliance:
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3
Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Wi-Fi CERTIFIED Location™
Bluetooth SIG

Input voltageIEEE 802.3bt (class 5) or 802.3at PoE, or direct DC power (via optional power supply)

Wi-Fi antennaFour integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Connectivity, standardWi-Fi 6 (IEEE 802.11ax)

Ports(2) HPE Smart Rate RJ-45 port (maximum negotiated speed 5 Gbps)

MountingPre-installed mounting bracket, for use with optional mounting kit.

Power consumptionPOE powered (802.3bt or dual 802.3at): 30W POE powered (802.3at, IPM enabled): 25W DC powered: 29W; maximum (worst case)

Radio coverageDual-radio 4x4 MIMO IEEE 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO). Maximum data rates of 2.4 Gbps in the 5 GHz band and 1,150 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.55 Gbps).

WarrantyLimited lifetime warranty.

Detailed product descriptionThe 530 series indoor APs deliver the speed and reliability needed for any enterprise experiencing growing numbers of IoT and mobility requirements.

DifferentiatorAvailable in Israel only
TAA certified

Weight1.0 kg (2.2 lb)

Dimensions57 x 240 x 240 mm (AP-534), 80mm x 270 x 270 mm (AP-535) (2.2 x 9.4 x 9.4 in (AP-534), 2.8 x 9.1 x 8.7 in (AP-535))
