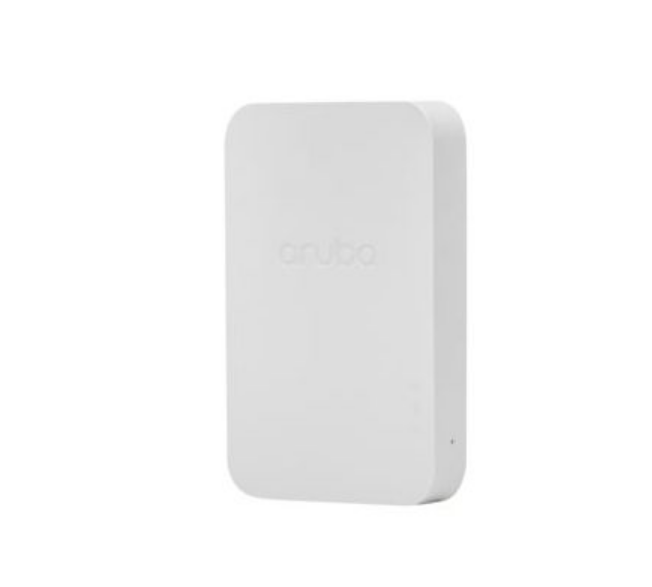

ARUBA JY693A HPE 203H Series Access Points
- 763 412 7282
- +86 010 69614620
JY693A Buying Guide
JY693A Aruba AP-203H (RW) Flex-radio 802.11ac 2 x 2 Access Point is listed by YYST Global for buyers looking for ARUBA HPE Aruba 203H Series Access Points. JY693A ARUBA wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 180.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: JY693A
- Brand: ARUBA
- Category: HPE Aruba 203H Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 180.00
JY693A Overview
JY693A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: JY693A Aruba AP-203H (RW) Flex-radio 802.11ac 2 x 2 Access Point. Category: HPE Aruba 203H Series Access Points. Condition: New Factory Sealed.
JY693A Specification
| Datasheet series | HPE Aruba Access Points |
| Exact model | JY693A |
| Product role | Enterprise wireless access point; confirm radio generation, antenna, regulatory domain and mounting kit |
| Management check | Confirm Aruba Central, controller, AirWave or local management requirements |
| Procurement check | Confirm country domain, accessories, license/support term and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | HPE Aruba access points official product page |
| System Specifications | ||
| Encrypted throughput | Maximum IPsec encrypted wired throughput: 20 Mb/s |
|
| 203H Access Point (AP) specifications | Unified flexible radio 802.11ac 2 x 2:2SS hospitality and branch AP with internal antennas Supports wall-box and desk mount deployments |
|
| WIFI Radio specifications | AP Type: Indoor flexible radio: 5 GHz 802.11ac 2 x 2 MIMO or 2.4 GHz 802.11n 2 x 2 MIMO1 5 GHz 802.11ac 1 x 1 and 2.4 GHz 802.11n 1 x 11 Software-configurable radio supports 5 GHz (Radio 0) and/or 2.4 GHz (Radio 1) 5 GHz: Two spatial stream Single User (SU) MIMO for up to 867 Mb/s wireless data rate to individual 2 x 2 VHT80 client devices 2.4 GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mb/s wireless data rate to individual 2 x 2 VHT40 client devices (300 Mb/s for HT40 802.11n client devices) Support for up to 32 associated client devices per radio, and up to 8 BSSIDs per radio Supported frequency bands (Country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spreadspectrum (DSSS) 802.11a/g/n/ac: Orthogona l frequencydivision multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of Maximum (Conducted) transmit power (Limited by local regulatory requirements): 2.4GHz Band: +18 dBm per chain, +21 dBm aggregate (2 x 2 Mode) 5GHz Band: +16 dBm per chain, +19 dBm aggregate (2 x 2 Mode) Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz and 80 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for highefficiency error correction and increased throughput Transmit beam-forming (T x BF) for increased signal reliability and range (2 x 2 Mode) Supported data rates (Mb/s): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS= 1 to 2 for VHT20/40/80) 802.11n High Throughput (HT) support: HT 20/40 802.11ac Very High Throughput (VHT) support: VHT 20/40/80 802.11n/ac Packet aggregation: AMPDU, A-MSDU |
|
| Physical Specifications | ||
| Dimensions | - Unit, including single-gang wall box mount plate: 140 x 86 x 26.5 mm (5.51 x 3.38 x 1.04 in) - Shipping: 165 x 115 x 47 mm (6.49 x 4.52 x 1.85 in) |
|
| Weight | - Unit, including single-gang wall box mount plate: 225 g (0.49 lb) - Shipping: 290 g (0.64 lb) |
|
| Electrical Specifications | ||
| POE | 48 V dc (Nominal) 802.3af/802.3 at compliant source | |
| Maximum (Worst-Case) power consumption | 7.4 W | |
| Maximum (Worst-Case) power consumption in idle mode | 3.9 W | |
| Environmental Specifications | ||
| Operating temperature | 0° to +40°C (+32° to +104°F) | |
| Operating humidity | 5% to 93% Non-condensing | |
| Storage and transportation temperature | -40° to +70°C (-40° to +158°F) | |
| Safety and Regulatory Certifications | ||
| Certifications | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac |
|
| Regulatory | FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 |
|
| Reliability | MTBF: 780,000 hours (89 years) at +25°C operating temperature | |
| RF Performance table | ||
| Specifications | Maximum transmit power (dBm) per transmit chain | Receiver sensitivity (dBm) per receive chain |
| 802.11b 2.4 GHz | ||
| 1 Mb/s | 18 | -92 |
| 11 Mb/s | 18 | -88 |
| 802.11g 2.4 GHz | ||
| 6 Mb/s | 18 | -88 |
| 54 Mb/s | 18 | -73 |
| 802.11n HT20 2.4 GHz | ||
| MCS0/8 | 17 | -88 |
| MCS7/15 | 17 | |
| 802.11a 5 GHz | ||
| 6 Mb/s | 17 | -85 |
| 54 Mb/s | 17 | -68 |
| 802.11n HT20 5 GHz | ||
| MCS0/8 | 16 | -88 |
| MCS7/15 | 16 | -72 |
| 802.11n HT40 5 GHz | ||
| MCS0/8 | 16 | -88 |
| MCS7/15 | 15 | -70 |
| 802.11ac VHT20 5 GHzb | ||
| MCS0 | 16 | -88 |
| MCS8 | 15 | -65 |
| 802.11ac VHT40 5 GHz | ||
| MCS0 | 16 | -85 |
| MCS9 | 13 | -62 |
| 802.11ac VHT80 5 GHz | ||
| MCS0 | 16 | -82 |
| MCS9 | 13 | -59 |
JY693A Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
JY693A FAQ
What is JY693A?
JY693A Aruba AP-203H (RW) Flex-radio 802.11ac 2 x 2 Access Point is a ARUBA HPE Aruba 203H Series Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of JY693A?
The listed datasheet series for JY693A is HPE Aruba Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of JY693A?
The listed exact model for JY693A is JY693A. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is JY693A available from YYST Global?
YYST Global can help check availability, lead time and configuration for JY693A. Contact the sales team before ordering to confirm current stock.
What is the price of JY693A?
The current reference price for JY693A is US$ 180.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
