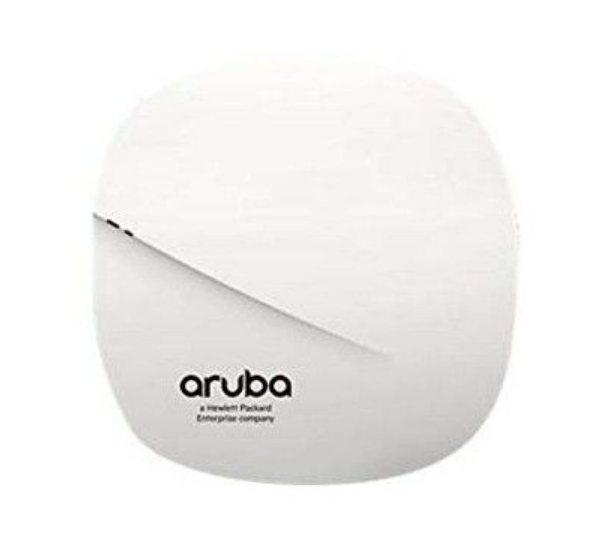

ARUBA JW795A HPE Networking Instant On Access Points AP22

JW795A is a ARUBA wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: JW795A HPE Aruba AP-314 802.11n/ac MU-MIMO Antenna Connectors AP. Category: HPE Networking Instant On Access Points AP22. Condition: New Factory Sealed.

• Interfaces	• One 10/100/1000BASE-T Ethernet network interface (RJ-45)
  	- Auto-sensing link speed and MDI/MDX
  	- 802.3az Energy Efficient Ethernet (EEE)
  	• USB 2.0 Host interface (Type A Connector)
  	• BLE radio
  	- Up to 3 dBm transmit power (class 2) and -92 dBm receive sensitivity
  	- Integrated antenna with roughly 30 degrees downtilt and peak gain of 3.4 dBi (AP-314/IAP-314) or 1.5 dBi (AP-315/IAP-315)
  	• Visual indicators (Multi-color LEDs) for System and Radio status
  	• Reset button: factory reset (During device power up)
  	• Serial console interface (Proprietary; optional adapter cable available)
  	• Kensington security slot
  WI-FI Antennas	• AP-314/IAP-314: Four RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (Due to diplexing circuitry): 0.6 dB in 2.4 GHz and 1.2 dB in 5 GHz
  	• AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4 x 4 MIMO with maximum antenna gain of 3.1 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees
  	- The maximum gain of the combined (Summed) antenna patterns for all elements operating in the same band is 3.9 dBi in 2.4 GHz and 5.7 dBi in 5 GHz
  Dimensions (H x W x D)	• Unit, excluding mount accessories: 48 x 182 x 180 mm (1.89 x 7.17 x 7.09 in)
  	• Shipping: 55 x 223 x 218 mm (2.17 x 8.78 x 8.58 in)
  Weight	• Unit, excluding mount accessories: 650 g (23 lb)
  	• Shipping: 850 g (30 lb)
  Direct DC source	• 12 V dc (Nominal) +/- 5%
  	• Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
  Power over Ethernet (POE)	• 48 V dc (Nominal) 802.3af/802.3at compliant source
  	• Unrestricted functionality with 802.3af PoE
  	• When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af PoE source
  	• Without IPM, the USB port is disabled when the AP is powered by an 802.3af PoE source
  Maximum (Worst-Case) power consumption	• 14.4 W (802.3at PoE)
  	• 13.6 W (802.3af PoE)
  	• 12.7 W (DC)
  	• Excludes power consumed by external USB device (And internal overhead); this could add up to 6.3 W (PoE) or 5.9 W (DC) for a 5 W/1 A USB device
  Maximum (Worst-Case) power consumption in idle mode	• 6.4 W (PoE)
  	• 5.9 W (DC)
  Operating temperature	0° to +50°C (+32° to +122°F)
  Operating humidity	5% to 95% Non-condensing
  Storage and transportation temperature	-40° to +70°C (-40° to +158°F)
  Regulatory	• FCC/Industry of Canada
  	• CE Marked
  	• R&TTE Directive 1995/5/EC
  	• Low voltage directive 72/23/EEC
  	• EN 300 328
  	• EN 301 489
  	• EN 301 893
  	• UL/IEC/EN 60950
  	• EN 60601-1-1 and EN 60601-1-2
  Regulatory model numbers	• AP-314 and IAP-314: APIN0314
  	• AP-315 and IAP-315: APIN0315
  Reliability	MTBF: 916,373 hrs (105 yrs) at +25C operating temperature
  Certifications	• CB Scheme safety, cTUVus
  	• UL2043 Plenum rating
  	• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
  AP Type	Indoor, dual radio, 5 GHz 802.11ac 4 x 4 MIMO and 2.4 GHz 802.11n 2 x 2 MIMO
  Software-Configurable dual radio	• Supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
  	• 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mb/s wireless data rate to individual 4 x 4 VHT80 or 2 x 2 VHT160 client devices
  	• 5 GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mb/s wireless data rate to up to three MU-MIMO capable client devices simultaneously
  	• 2.4 GHz: Two spatial stream SU MIMO for up to 300 Mb/s wireless data rate to individual 2 x 2 HT40 client devices
  Support for client devices per radio	• Up to 255 associated client devices per radio
  	• Up to 16 BSSIDs per radio
  Supported frequency bands (Country-Specific restrictions apply)	• 2.400 - 2.4835 GHz
  	• 5.150 - 5.250 GHz
  	• 5.250 - 5.350 GHz
  	• 5.470 - 5.725 GHz
  	• 5.725 - 5.850 GHz
  Available channels	Dependent on configured regulatory domain
  RF Spectrum	Dynamic Frequency Selection (DFS) optimizes the use of available RF spectrum
  Supported radio technologies	• 802.11b: Direct-sequence spread-spectrum (DSSS)
  	• 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
  Supported modulation types	• 802.11b: BPSK, QPSK, CCK
  	• 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  Transmit power	Configurable in increments of 0.5 dBm
  Maximum (Conducted total) transmit power (Limited by local regulatory requirements) ¹	• 2.4 GHz Band: +18 dBm per chain, +21 dBm aggregate (2 x 2)
  	• 5 GHz Band: +18 dBm per chain, +23 dBm aggregate (4 x 4)
  Supported data rates (Mb/s)	• 802.11b: 1, 2, 5.5, 11
  	• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  	• 802.11n (5 GHz): 6.5 to 600 (MCS0 to MCS31)
  	• 802.11n (2.45 GHz): 6.5 to 300 (MCS0 to MCS15)
  	• 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
  802.11n High Throughput (HT) support	HT 20/40
  802.11ac Very High Throughput (VHT) support	VHT 20/40/80/160
  802.11n/ac Packet aggregation	A-MPDU, A-MSDU
  ACC	Minimizes interference from cellular networks
  Maximum ratio combining (MRC)	Improved receiver performance
  Cyclic delay/shift diversity (CDD/CSD)	Improved downlink RF performance
  Short guard interval	20-MHz, 40-MHz, 80-MHz and 160-MHz channels
  Space-time block coding (STBC)	Increased range and improved reception
  Low-density parity check (LDPC)	High-efficiency error correction and increased throughput
  Transmit beam-forming (TxBF)	Increased signal reliability and range
  Maximum transmit power (dBm) per transmit chain - 802.11b 2.4 GHz	• 1 Mb/s: 18.0
  	• 11 Mb/s: 18.0
  Receiver sensitivity (dBm) per receive chain - 802.11b 2.4 GHz	• 1 Mb/s: -95.0
  	• 11 Mb/s: -88.0
  Maximum transmit power (dBm) per transmit chain - 802.11g 2.4 GHz	• 6 Mb/s: 18.0
  	• 54 Mb/s: 16.0
  Receiver sensitivity (dBm) per receive chain - 802.11g 2.4 GHz	• 6 Mb/s: -91.0
  	• 54 Mb/s: -74.0
  Maximum transmit power (dBm) per transmit chain - 802.11n HT20 2.4 GHz	• MCS0/8: 18.0
  	• MCS7/15: 14.0
  Receiver sensitivity (dBm) per receive chain - 802.11n HT20 2.4 GHz	• MCS0/8: -90.0
  	• MCS7/15: -71.0
  Maximum transmit power (dBm) per transmit chain - 802.11n HT40 2.4 GHz	• MCS0/8: 18.0
  	• MCS7/15: 14.0
  Receiver sensitivity (dBm) per receive chain - 802.11n HT40 2.4 GHz	• MCS0/8: -87.0
  	• MCS7/15: -68.0
  Maximum transmit power (dBm) per transmit chain - 802.11a 5 GHz	• 6 Mb/s: 18.0
  	• 54 Mb/s: 16.0
  Receiver sensitivity (dBm) per receive chain - 802.11a 5 GHz	• 6 Mb/s: -90.0
  	• 54 Mb/s: -73.0
  Maximum transmit power (dBm) per transmit chain - 802.11n HT20 5 GHz	• MCS0/8/16/24: 18.0
  	• MCS7/15/23/31: 14.0
  Receiver sensitivity (dBm) per receive chain - 802.11n HT20 5 GHz	• MCS0/8/16/24: -90.0
  	• MCS7/15/23/31: -71.0
  Maximum transmit power (dBm) per transmit chain - 802.11n HT40 5 GHz	• MCS0/8/16/24: 18.0
  	• MCS7/15/23/31: 14.0
  Receiver sensitivity (dBm) per receive chain - 802.11n HT40 5 GHz	• MCS0/8/16/24: -87.0
  	• MCS7/15/23/31: -68.0
  Maximum transmit power (dBm) per transmit chain - 802.11ac VHT20 5 GHz	• MCS0: 18.0
  	• MCS9: 12.0
  Receiver sensitivity (dBm) per receive chain - 802.11ac VHT20 5 GHz	• MCS0: -90.0
  	• MCS9: -65.0
  Maximum transmit power (dBm) per transmit chain - 802.11ac VHT40 5 GHz	• MCS0: 18.0
  	• MCS9: 12.0
  Receiver sensitivity (dBm) per receive chain - 802.11ac VHT40 5 GHz	• MCS0: -87.0
  	• MCS9: -62.0
  Maximum transmit power (dBm) per transmit chain - 802.11ac VHT80 5 GHz	• MCS0: 18.0
  	• MCS9: 12.0
  Receiver sensitivity (dBm) per receive chain - 802.11ac VHT80 5 GHz	• MCS0: -83.0
  	• MCS9: -59.0
  Maximum transmit power (dBm) per transmit chain - 802.11ac VHT160 5 GHz	• MCS0: 18.0
  	• MCS9: 12.0
  Receiver sensitivity (dBm) per receive chain - 802.11ac VHT160 5 GHz	• MCS0: -82.0
  	• MCS9: -57.0
