Juniper ACX5448-FAN-AFO Front-to-Back Fan Module
- 763 412 7282
- +86 010 69614620
ACX5448-FAN-AFO Overview
Use the exhaust-side label to choose the spare
For ACX5448-FAN-AFO, Juniper lists AIR OUT and orange identification in the fan-module table. The front panel is the intake side; air leaves the chassis through the fan modules at the rear. This ports-to-FRUs orientation matters when choosing a spare for a rack with a fixed cooling direction. Check the installed router product number, existing labels and required revision before requesting availability.
Check the power modules as part of the selection
An AFO fan choice must match the power modules: Juniper requires AIR OUT power supplies with AIR OUT fan modules. Its chassis guidance places AIR OUT components toward the hot aisle and AIR IN components toward the cold aisle. A single airflow-in replacement is not an equivalent cooling choice. If the deployment needs a different airflow pattern, the manufacturer requires a complete fan and power-module conversion with the device powered off.
Keep the order code separate from the package
The datasheet names ACX5448-FAN-AFO as a fan order, and its legacy Left description does not establish a left-hand mounting slot. ACX5448-D-FAN-AFO is a separate code in the airflow table; sharing an AIR OUT designation is not proof of cross-model interchangeability. State the exact installed product and component code, and confirm the quoted quantity rather than assuming that a fan listing supplies all chassis fans, power modules or a complete router.
Inspect the module and use the manufacturer sequence
Juniper describes these fan modules as field-replaceable and limits the time allowed for a replacement. Plan the procedure from the hardware guide and confirm the delivered label before installation. The original generic ACX5400 fan-module drawing is a Series reference; it does not show an offered AFO unit or verify an orange handle on the supplied part.
Sources for the airflow and order decision
Juniper exact AFO row, airflow matching and conversion requirements
ACX5448-FAN-AFO Specification
| Order code | ACX5448-FAN-AFO |
| Assembly role | Cooling fan module for the ACX5448 configuration |
| Front-panel side | Air intake at the front ports |
| Rear-module side | Air exhaust through the fan FRUs; front-to-back or ports-to-FRUs |
| Fan identification | AIR OUT and orange markings in the exact official table |
| Power-module selection | Matching AIR OUT power modules required |
| Replacement part check | Use the installed router product number and exact order; D variant is not assumed interchangeable |
| Package boundary | Confirm quantity and revision; full fan set, power supplies and router not implied |
| Illustration scope | Original generic Series drawing; not supplied AFO unit photograph |
ACX5448-FAN-AFO Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
ACX5448-FAN-AFO FAQ
What is ACX5448-FAN-AFO used for?
Juniper ACX5448-FAN-AFO Front-to-Back Fan Module is a JUNIPER accessory or component in the ACX5400 Universal Metro Routers category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with ACX5448-FAN-AFO?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with ACX5448-FAN-AFO?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of ACX5448-FAN-AFO?
The current reference price for ACX5448-FAN-AFO is US$ 16,040.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related ACX5448-FAN-AFO
Juniper ACX5448-FAN-AFI Airflow-In Fan Module

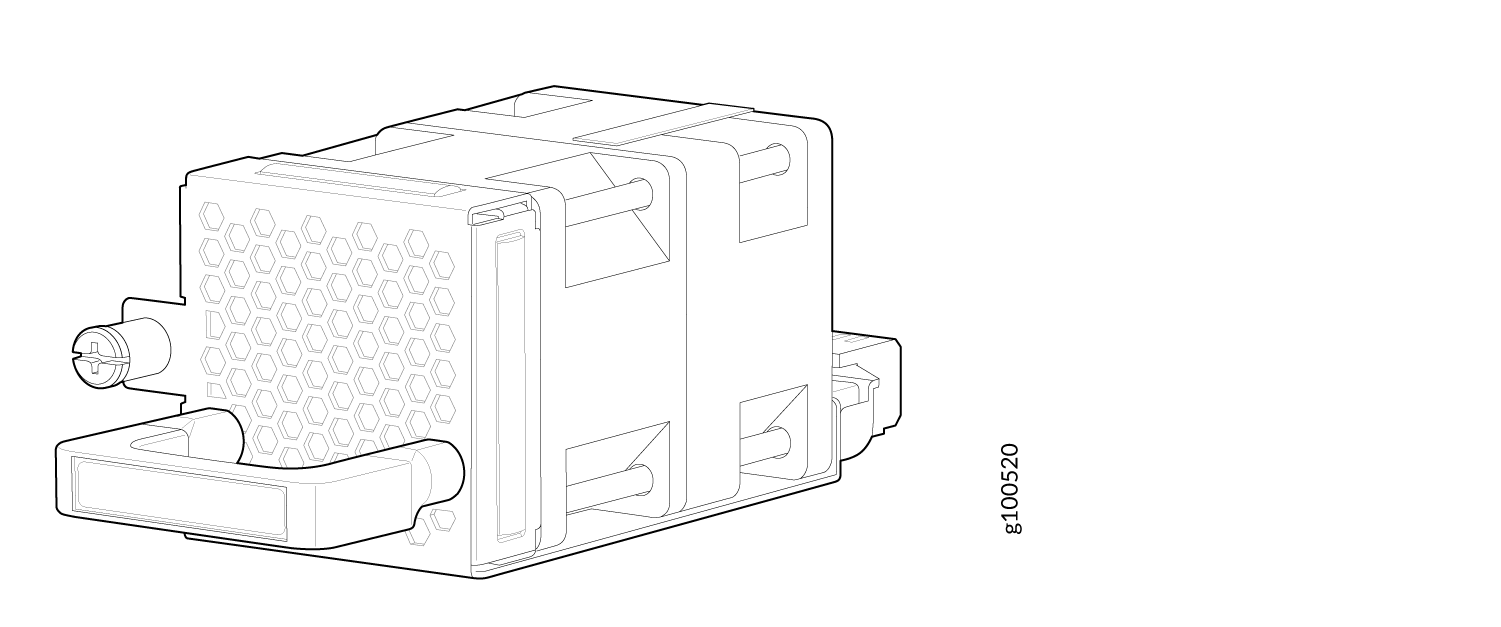

ACX5448-FAN-AFI is a Juniper airflow-in fan module for the ACX5448 platform, not a complete router. AFI directs air from the rear fan side toward the front ports. Juniper identifies this order with AIR IN and blue markings; its airflow must match the installed power modules. The official Series fan-module drawing is a reference, not a photograph of the supplied AFI unit.
