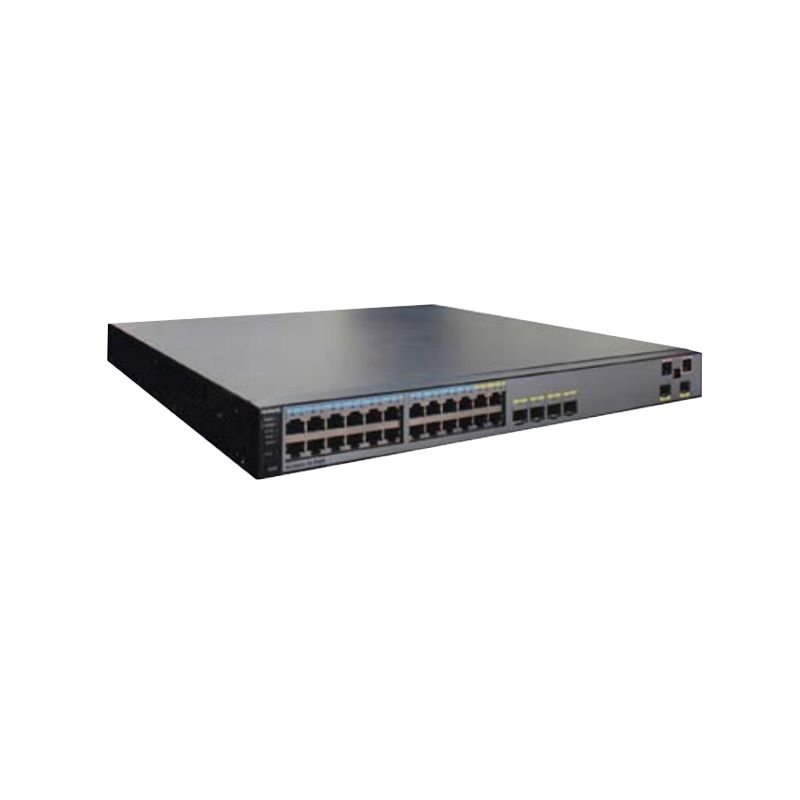

HUAWEI C6605-26-PWR-64AP AC6000 Series Access Controllers
- 763 412 7282
- +86 010 69614620
C6605-26-PWR-64AP Buying Guide
AC6605-26-PWR-64AP Huawei AC6605 WLAN Controller with 64 AP License is listed by YYST Global for buyers looking for HUAWEI Huawei AC6000 Series Access Controllers. C6605-26-PWR-64AP HUAWEI wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 5,526.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: C6605-26-PWR-64AP
- Brand: HUAWEI
- Category: Huawei AC6000 Series Access Controllers
- Condition: New Factory Sealed
- Reference price: US$ 5,526.00
C6605-26-PWR-64AP Overview
C6605-26-PWR-64AP is a HUAWEI wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: AC6605-26-PWR-64AP Huawei AC6605 WLAN Controller with 64 AP License. Category: Huawei AC6000 Series Access Controllers. Condition: New Factory Sealed.
C6605-26-PWR-64AP Specification
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 17.4 in.) |
| Weight without packaging [kg(lb)] | 5.48 kg (12.08 lb) |
| Storage | NOR Flash 256 MB |
| Console port | RJ45 |
| Eth Management port | RJ45 FE |
| Maximum power consumption [W] | 85 W |
| Maximum heat dissipation [BTU/hour] | 290 BTU/hour |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | 100 V to 240 V |
| Input voltage range [V] | 90 V to 264 V |
| Service port surge protection | 6 kV in common mode |
| Relationship between PoE and system power modules [W] | Pluggable power module, providing power for 24 GE ports, each of which complies with 802.3af/at Rated input voltage: 100–240 V AC; 50/60 Hz Maximum input voltage: 90–264 V AC; 47 Hz to 63 Hz Maximum output current: +12 V: 10 A; –53.5 V: 7.11 A Maximum output power: 380 W (PoE), 500 W (total) |
| PoE OUT | Supported |
| Maximum PoE output power [W] | 30 W |
| Redundant power supply | Power modules of the same type work in 1+1 redundancy. |
| Types of fans | Built-in |
| Maximum number of physical ports on the entire device | 20 x 10/100/1000BASE-T + 4 x COMBO + 2 x 10G SR/LR |
| Long-term operating temperature [°C(°F)] | –5°C to +50°C (23°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | < 36 dBA |
| Ground | Grounding |
| USB | Not supported |
| MTBF [year] | 56.4 year |
| MTTR [hour] | 2 hour |
C6605-26-PWR-64AP Ordering Information
This listing is a software license, subscription or support entitlement rather than standalone hardware. Confirm the covered device model, service level, contract duration, activation region, start date and delivery method before ordering.
C6605-26-PWR-64AP FAQ
What does the C6605-26-PWR-64AP entitlement cover?
AC6605-26-PWR-64AP Huawei AC6605 WLAN Controller with 64 AP License is listed as a HUAWEI license, subscription or support entitlement. Confirm the protected device or account, included services and exact contract term on the quotation.
Is C6605-26-PWR-64AP a physical hardware appliance?
This listing should not be assumed to include hardware. Confirm whether fulfillment uses an activation code, electronic entitlement, account registration or another vendor process.
What must be checked before ordering C6605-26-PWR-64AP?
Validate the parent device serial number or model, service start date, region, renewal eligibility, transfer restrictions and required vendor account before purchase.
What is the price of C6605-26-PWR-64AP?
The current reference price for C6605-26-PWR-64AP is US$ 5,526.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
