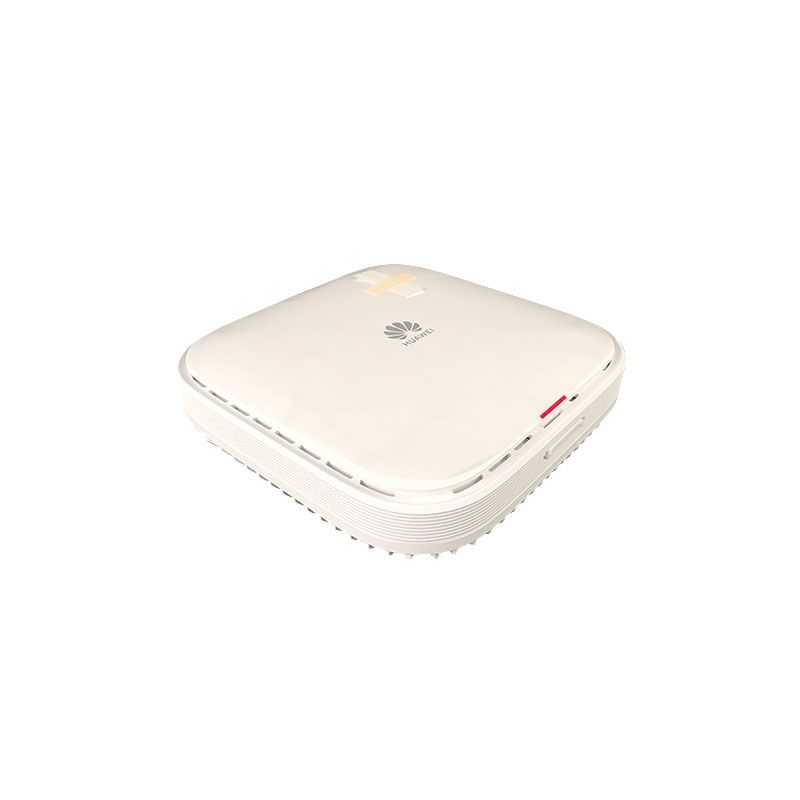

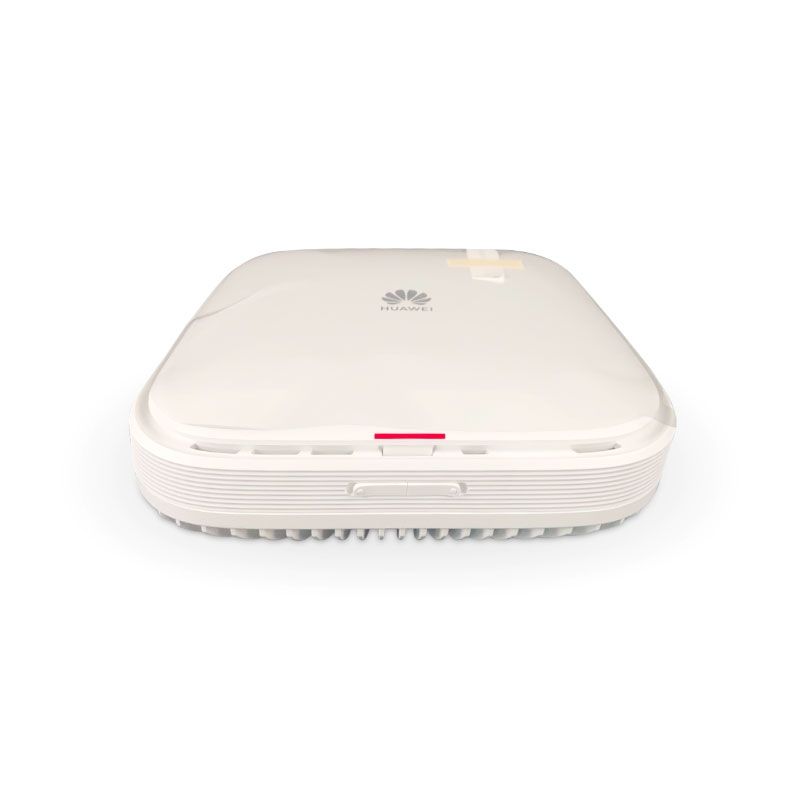

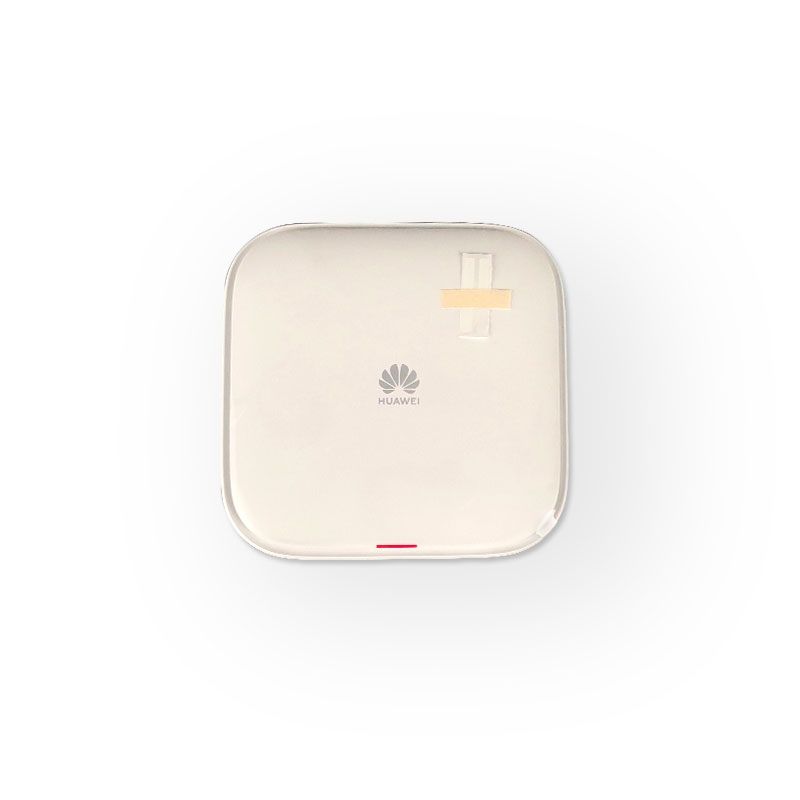

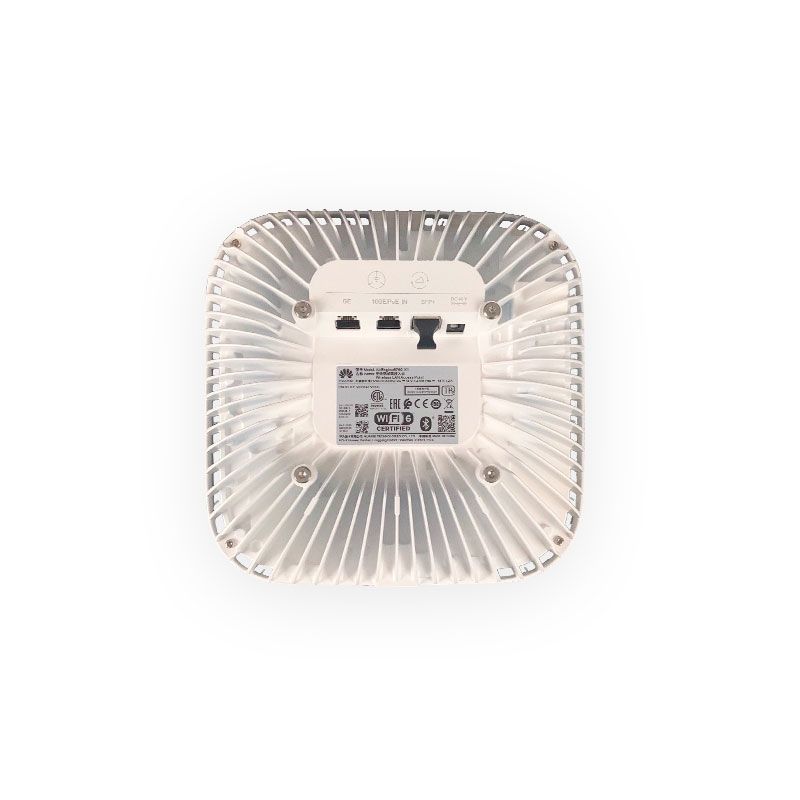

HUAWEI AirEngine 6760-X1 AirEngine 6700 Series Access Points

• Wall
• Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
• Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)

• PoE
• DC power adapter

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

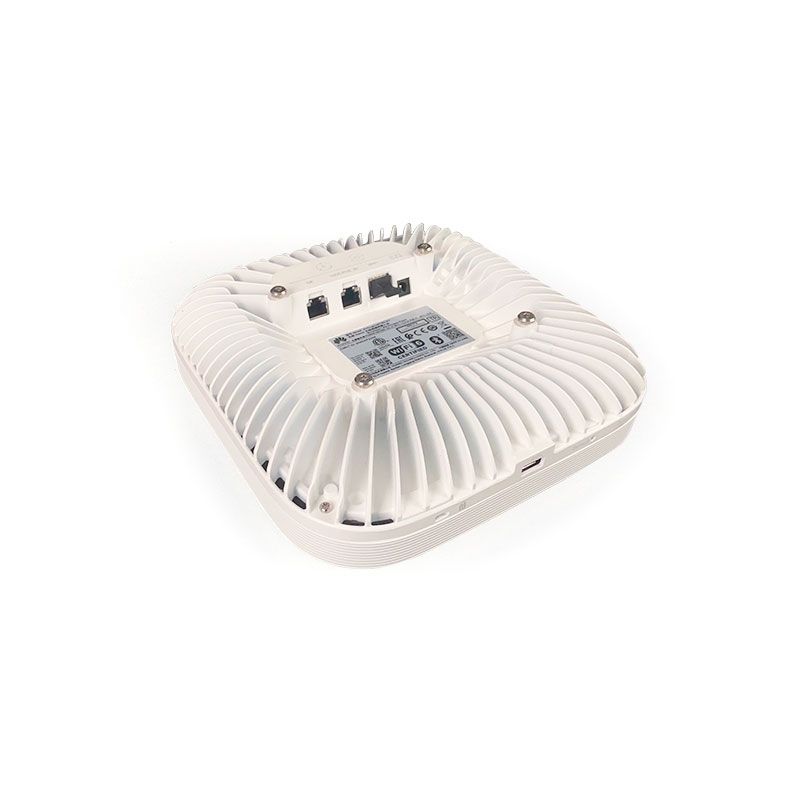

10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing

• 2.4GHz
• 5GHz

Triple-radio mode:

• Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
• Radio 1 (5 GHz): 4x4 (high frequency band), maximum bandwidth of 80 MHz
• Radio 2 (5 GHz): 4x4 (low frequency band), maximum bandwidth 160 MHz

Dual-radio mode:

• Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
• Radio 1 (5 GHz): 8x8, maximum bandwidth 160 MHz

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

2.4 GHz: 4.5 dBi

5 GHz: 6 dBi

BLE: 4 dBi

2.4 GHz: 26 dBm

5 GHz: 29 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain

In 802.3bt Class 8 power supply mode:

• If an RTU license is loaded, no function is restricted.
• If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.

In 802.3bt Class 6 power supply mode:

- With an RTU license loaded:

Wi-Fi: If the USB and IoT card slots are not used, the number of spatial streams and transmit power are not affected. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

- Without an RTU license loaded:

Wi-Fi: 2.4 GHz (4x4) + 5 GHz (6x6). The radio transmit power is not affected. If the USB port and IoT card slot are used, the radio working bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the radio working bandwidth may be affected. For details, contact the product manager.

With an RTU license loaded:

Wi-Fi:

If the USB and IoT card slots are not used, the radio transmit power is not affected.

• Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
• Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
• Dual-radio + independent radio scanning mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent radio scanning

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.

Without an RTU license loaded:

Wi-Fi:

• If no USB or IoT card slot is used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (4x4) mode, and the radio transmit power is not affected.
• If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.
