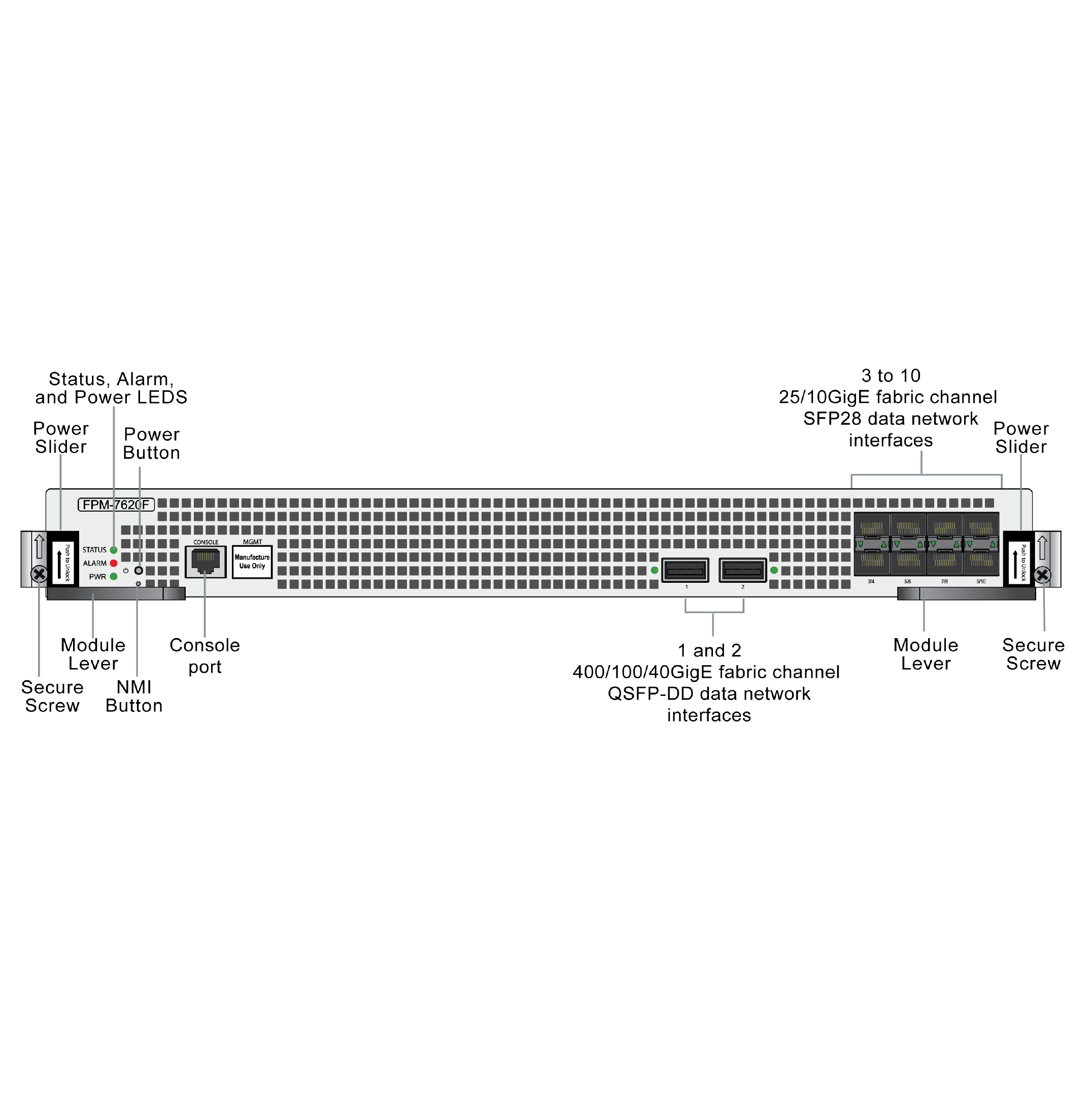

FORTINET FPM-7620F FortiGate 7000F Series
- 763 412 7282
- +86 010 69614620
FPM-7620F Buying Guide
FPM-7620F FortiGate 7000F NP7 Processing Worker Module is listed by YYST Global for buyers looking for FORTINET FortiGate 7000F Series. FPM-7620F FORTINET security firewall appliance for security refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 9,987.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: FPM-7620F
- Brand: FORTINET
- Category: FortiGate 7000F Series
- Condition: New Factory Sealed
- Reference price: US$ 9,987.00
FPM-7620F Overview
FPM-7620F is a FORTINET security firewall appliance listed by YYST Global for perimeter security refreshes, HA replacement, branch protection and security appliance sourcing. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FPM-7620F FortiGate 7000F NP7 Processing Worker Module. Category: FortiGate 7000F Series. Condition: New Factory Sealed.
FPM-7620F Specification
| Hardware Accelerated 400 GE QSFP-DD / 100 GE QSFP28 / 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots | 8 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | N.A. |
| Signed Firmware Hardware Switch | N.A. |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets) | 396 / 395 / 263 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets) | 396 / 395 / 263 Gbps |
| Firewall Latency (64 byte, UDP) | 7.50 μs |
| Firewall Throughput (Packet per Second) | 39 286 Mpps |
| Concurrent Sessions (TCP) | 100 Million |
| New Sessions/Sec (TCP) | 900K |
| Firewall Policies (system wide) | 200 000 |
| IPsec VPN Throughput (512 byte) | 63 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 4000 |
| Client-to-Gateway IPsec VPN Tunnels | 26 000 |
| SSL-VPN Throughput | 13.7 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30 000 |
| IPS Throughput (Enterprise Mix) | 67.5 Gbps |
| SSL Inspection Throughput | 54 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 48 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 10 Million |
| Application Control Throughput (HTTP 64K) | 150 Gbps |
| NGFW Throughput | 55 Gbps |
| Threat Protection Throughput | 52 Gbps |
| CAPWAP Throughput | N.A. |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiTokens | 2000 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | N.A. |
| High Availability Configurations | Active-Passive, Active-Active |
| Height x Width x Length (inches) | 1.69 × 17.11 × 18.56 |
| Height x Width x Length (mm) | 43 × 435 × 471 |
| Weight | 16.19 lb. (7.35 kg) |
| Power Consumption (Average / Maximum) | 675 W / 716 W |
| Current (Maximum) | 60A |
| Heat Dissipation (Average) | 2442 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -13°F to 158°F (-25°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Special Remarks | NP7 + CP9 ASIC processing blade; fabric ports for chassis interconnection, no local onboard storage |
FPM-7620F Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
Document/Firmware Download
FPM-7620F FAQ
What is FPM-7620F used for?
FPM-7620F FortiGate 7000F NP7 Processing Worker Module is a FORTINET accessory or component in the FortiGate 7000F Series category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with FPM-7620F?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with FPM-7620F?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of FPM-7620F?
The current reference price for FPM-7620F is US$ 9,987.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
