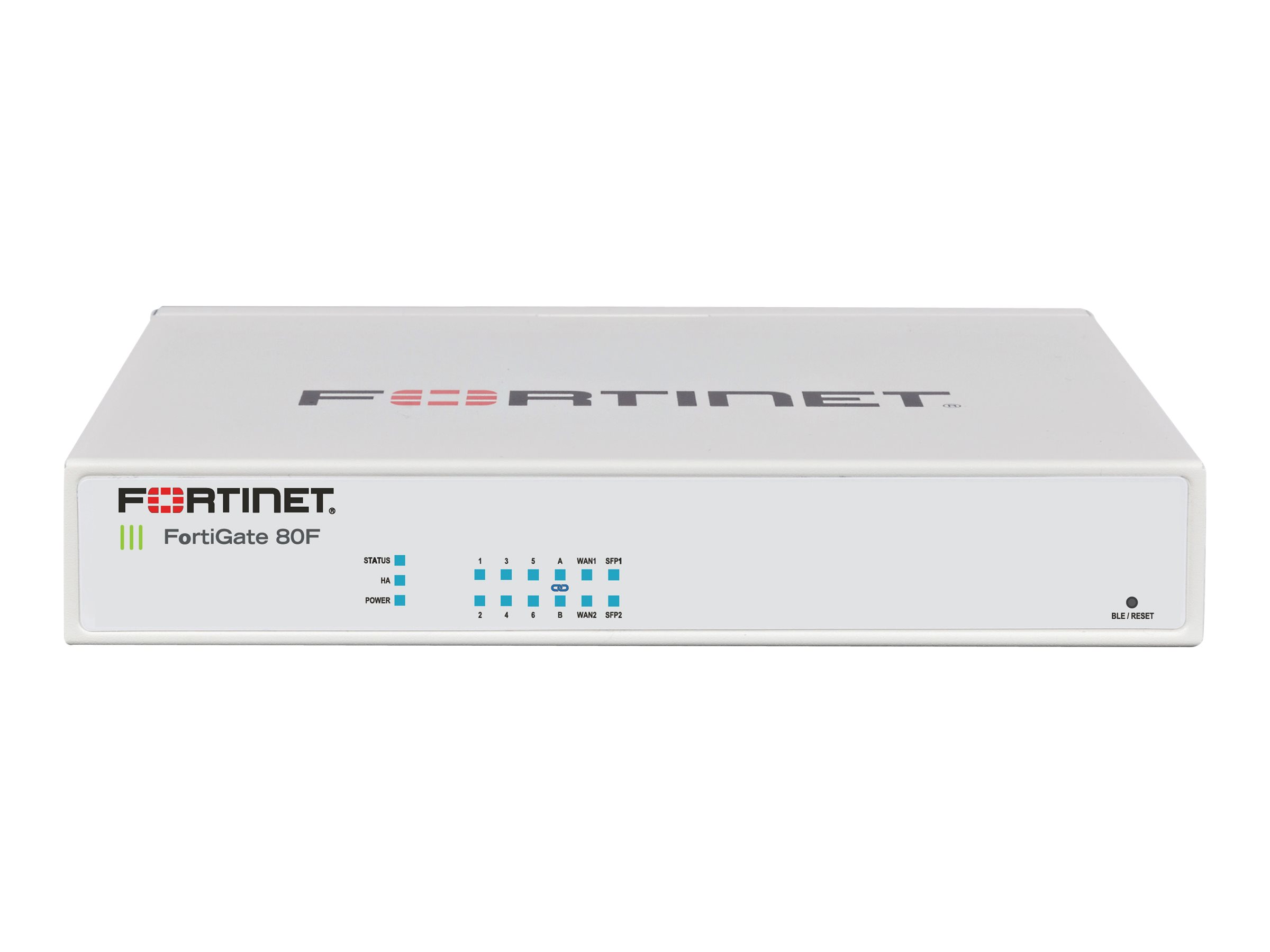

FORTINET FG-81F-HA FortiGate/FortiWiFi 80F Series
- 763 412 7282
- +86 010 69614620
FG-81F-HA Buying Guide
FG-81F-HA FortiGate 81F-HA 128GB SSD SD-WAN Firewall is listed by YYST Global for buyers looking for FORTINET FortiGate/FortiWiFi 80F Series. FG-81F-HA FORTINET security firewall appliance for security refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 830.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FG-81F-HA
- Brand: FORTINET
- Category: FortiGate/FortiWiFi 80F Series
- Condition: New Factory Sealed
- Reference price: US$ 830.00
FG-81F-HA Overview
FG-81F-HA is a FORTINET security firewall appliance listed by YYST Global for perimeter security refreshes, HA replacement, branch protection and security appliance sourcing. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FG-81F-HA FortiGate 81F-HA 128GB SSD SD-WAN Firewall. Category: FortiGate/FortiWiFi 80F Series. Condition: New Factory Sealed.
FG-81F-HA Specification
| Datasheet series | Fortinet FortiGate 81F Series |
| Exact model | FG-81F-HA |
| Security appliance type | FortiGate next-generation firewall appliance |
| Sizing check | Validate firewall, IPS, NGFW, threat protection and VPN throughput against the official datasheet before order |
| Interface check | Confirm RJ45/SFP/SFP+ port count, bypass port requirement and WAN redundancy before purchase |
| Subscription check | Confirm FortiGuard, support term, firmware requirement and HA pair compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiGate official hardware documentation |
| GE RJ45/SFP Shared Media Pairs | 2 ports |
| GE RJ45 Internal Ports | 6 ports |
| GE RJ45 FortiLink Ports (Default) | 2 ports |
| USB 3.0 Port | 1 port |
| Console (RJ45) Port | 1 port |
| Internal Storage | 1x 128 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1,500,000 |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode, Max Recommended) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 100,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 1.6 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 40 x 216 x 178 |
| Weight | 2.4 lbs (1.1 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop / Wall Mount / Rack Tray |
| Input Rating | 12V DC, 3A (dual redundancy optional) |
| Power Required (Redundancy Optional) | Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current | 115VAC / 0.4A, 230VAC / 0.2A |
| Power Consumption (Average / Maximum) | 13.5 W / 16.5 W |
| Heat Dissipation | 56.30 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Regulatory Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
FG-81F-HA Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FG-81F-HA FAQ
What is FG-81F-HA?
FG-81F-HA FortiGate 81F-HA 128GB SSD SD-WAN Firewall is a FORTINET FortiGate/FortiWiFi 80F Series product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FG-81F-HA?
The listed datasheet series for FG-81F-HA is Fortinet FortiGate 81F Series. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FG-81F-HA?
The listed exact model for FG-81F-HA is FG-81F-HA. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FG-81F-HA available from YYST Global?
YYST Global can help check availability, lead time and configuration for FG-81F-HA. Contact the sales team before ordering to confirm current stock.
What is the price of FG-81F-HA?
The current reference price for FG-81F-HA is US$ 830.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
