FAP-431F-N Buying Guide

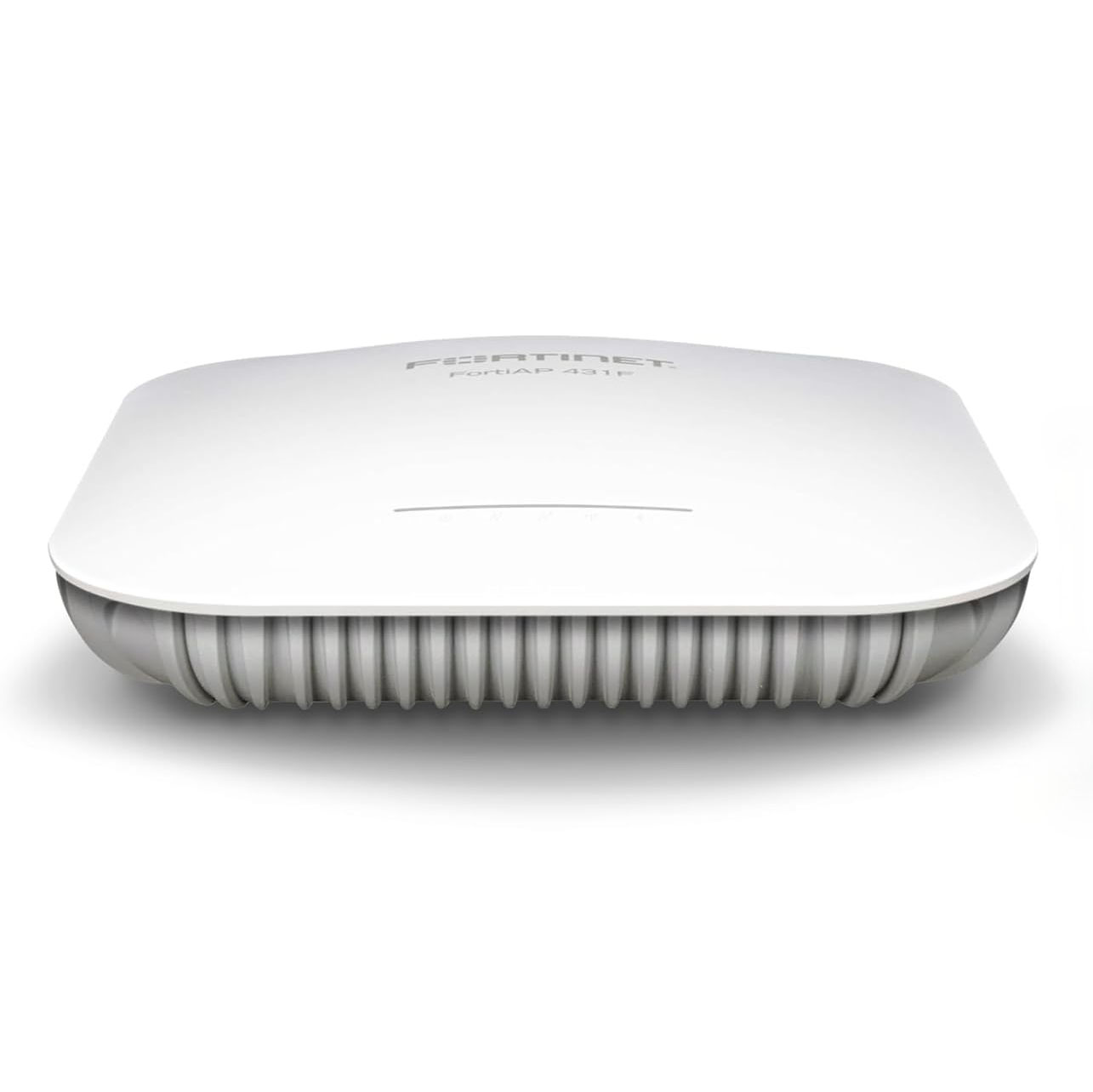

FAP-431F-N - Fortinet FortiAP 431F Wi-Fi 6 Wireless Access Point is listed by YYST Global for buyers looking for FORTINET FortiAP FAP-431F. FAP-431F-N FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 600.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-431F-N
- Brand: FORTINET
- Category: FortiAP FAP-431F
- Condition: New Factory Sealed
- Reference price: US$ 600.00
FAP-431F-N Overview
FAP-431F-N is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-431F-N - Fortinet FortiAP 431F Wi-Fi 6 Wireless Access Point. Category: FortiAP FAP-431F. Condition: New Factory Sealed.
FAP-431F-N Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-431F-N |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| FortiAP-431F | ||
|---|---|---|
| Hardware | ||
| Hardware Type | Indoor AP | |
| Number of Radios | 3 + 1 BLE | |
| Number of Antennas | 5 Internal + 1 BLE Internal | |
| Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz | |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 | |
| Radio 1 Capabilities | Frequency Band: 2.4 GHz Channel width: 4x4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4x4 service | |
| Radio 2 Capabilities | Frequency Band: 5.0 GHz Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4x4 service | |
| Radio 3 Capabilities | Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning | |
| Maximum Data Rate | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only | |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power | |

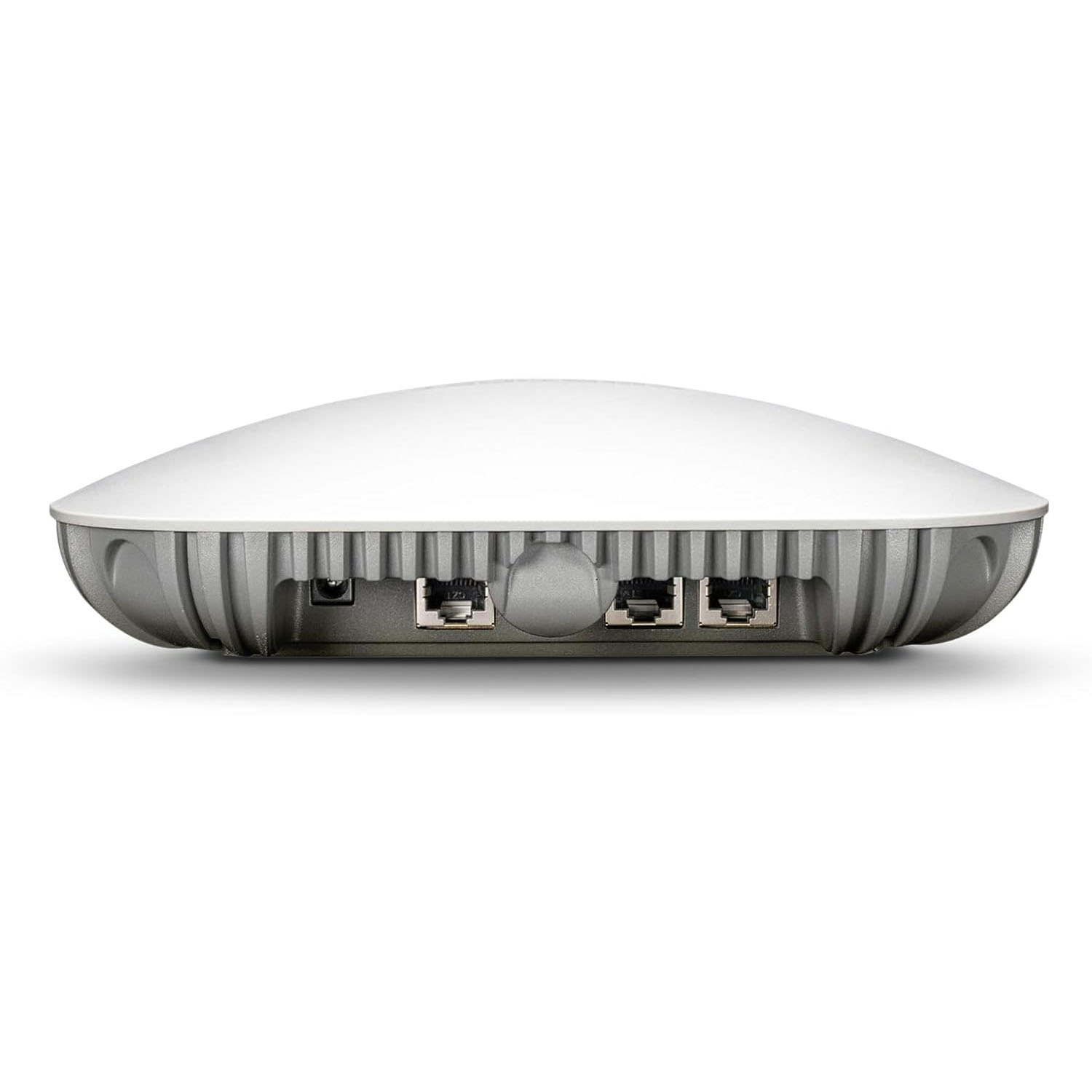

| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port | |
| Power over Ethernet (PoE) | 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power) | |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist | |
| Maximum Tx Power (Conducted) | Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA | |
| Kensington Lock | Yes | |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz | |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh | |
| Per Radio Client Capacity | 512 clients per radio (Radio1 and Radio2) | |
| Cellular Co-existence | Yes | |
| LED Off Mode | Yes | |
| Reset Button | Yes | |
| Advanced 802.11 Features | ||
| OFDMA | Yes (UL and DL) | |
| 2.4 GHz OFDMA | Yes | |
| Spatial Reuse (BSS Coloring) | Yes | |
| UL MU-MIMO 802.11ax mode | Yes | |
| DL-MU-MIMO | Yes | |
| HE-MU-MIMO | Yes | |
| Enhanced Target Wake Time (TWT) | Yes | |
| ZeroWait DFS/Agile DFS | No | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan radio modes | Background, Dedicated | |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm) | |
| Weight | 2.16 lbs (0.98 kg) | |
| Mounting Options | Ceiling, T-Rail, and Wall | |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall | |
| Environment | ||
| Power Supply | SP-FAP400-PA-XX or GPI-130 | |
| Power Consumption (Maximum) | 24.5 W | |
| Humidity | 5 - 90% non condensing | |
| Operating / Storage Temperature | 32–113°F (0–45°C) / -31–-94°F (-35–70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | No | |
| Mean Time Between Failures | > 10 Years | |
| Surge Protection Built In | Yes | |
| Hit-less PoE Failover | Yes | |
| Certifications | ||
| WiFi Alliance Certified | Yes | |
| DFS | FCC, IC, CE, Japan, Korea, Taiwan | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | |
FAP-431F-N Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-431F-N FAQ
What is FAP-431F-N?
FAP-431F-N - Fortinet FortiAP 431F Wi-Fi 6 Wireless Access Point is a FORTINET FortiAP FAP-431F product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-431F-N?
The listed datasheet series for FAP-431F-N is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-431F-N?
The listed exact model for FAP-431F-N is FAP-431F-N. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-431F-N available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-431F-N. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-431F-N?
The current reference price for FAP-431F-N is US$ 600.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
