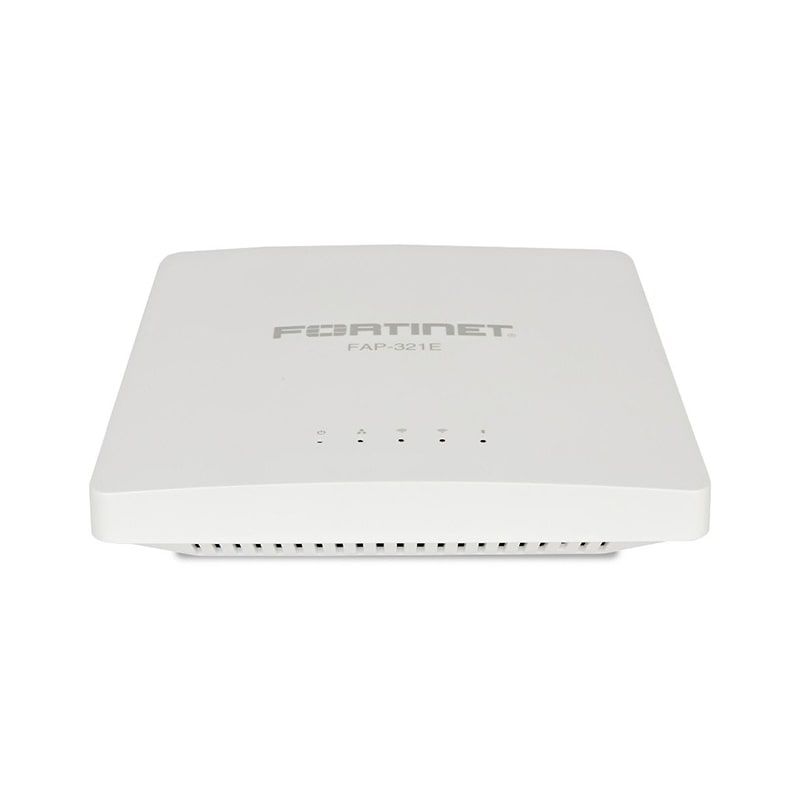

FORTINET FAP-321E FortiAP Standard Access Points
- 763 412 7282
- +86 010 69614620
FAP-321E Buying Guide
FAP-321E - Fortinet 321E Indoor Wireless 3x3 MIMO Access Points is listed by YYST Global for buyers looking for FORTINET FortiAP Standard Access Points. FAP-321E FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 420.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-321E
- Brand: FORTINET
- Category: FortiAP Standard Access Points
- Condition: New Factory Sealed
- Reference price: US$ 420.00
FAP-321E Overview
FAP-321E is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-321E - Fortinet 321E Indoor Wireless 3x3 MIMO Access Points. Category: FortiAP Standard Access Points. Condition: New Factory Sealed.
FAP-321E Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-321E |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| Hardware | |
| Indoor/Outdoor Deployment | Indoor AP |
| Number of Radios | 2 + 1 BLE |
| Number of Antennas | 6 Internal (RP-SMA) + 1 BLE internal |
| Antenna Type and peak Gain | PIFA: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 2.4 GHz b/g/n (3x3:3 stream) 20/40 MHz |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz |
| Radio 3 Capabilities | - |
| Maximum Data Rate | Radio 1: up to 450 Mbps |
| Radio 2: up to 1,300 Mbps | |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power |
| Interfaces | 1x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | IEEE 802.3af & 802.3at |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 2.4 GHz: 27.7 dBm/588 mW (3 chains combined) |
| 5 GHz: 27.7 dBm / 588 mW (3 chains combined) | |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at |
| SSID Types Supported | Local-Bridge, Mesh, & Tunnel |
| Per Radio Client Capacity | Up to 128 for Radio 1, Up to 512 for Radio 2 |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac Wave 2 MU-MIMO | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| OFDMA | No |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Dedicated |
| WIPS / WIDS Radio Modes | Background, Dedicated |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 7.08 x 7.08 x 1.50 inches (180 x 180 x 38 mm) |
| Weight | 1.0 lbs (0.454 kg) |
| Package (shipping) Weight | 1.60 lbs (0.73 kg) |
| Mounting Options | Ceiling, T-Rail and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | SP-FAP200-PA-XX, or GPI-130 |
| Power Consumption (Max.) | 1.68 W |
| Humidity | 10–90% non-condensing |
| Operating Temperature | 14–113°F (-10–45°C) / -22–158°F (-30–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | >10 Years |
| IP Rating | N/A |
| Surge Protection Built In | — |
| Hit-less PoE Failover | No |
| Certifications | |
| WiFi Alliance Certified | No |
| DFS | FCC, CE |
| Certifications | |
| Limited Lifetime Warranty | Ye |
FAP-321E Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-321E FAQ
What is FAP-321E?
FAP-321E - Fortinet 321E Indoor Wireless 3x3 MIMO Access Points is a FORTINET FortiAP Standard Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-321E?
The listed datasheet series for FAP-321E is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-321E?
The listed exact model for FAP-321E is FAP-321E. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-321E available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-321E. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-321E?
The current reference price for FAP-321E is US$ 420.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
