FORTINET FAP-234G-B FortiAP FAP-234G
- 763 412 7282
- +86 010 69614620
FAP-234G-B Buying Guide

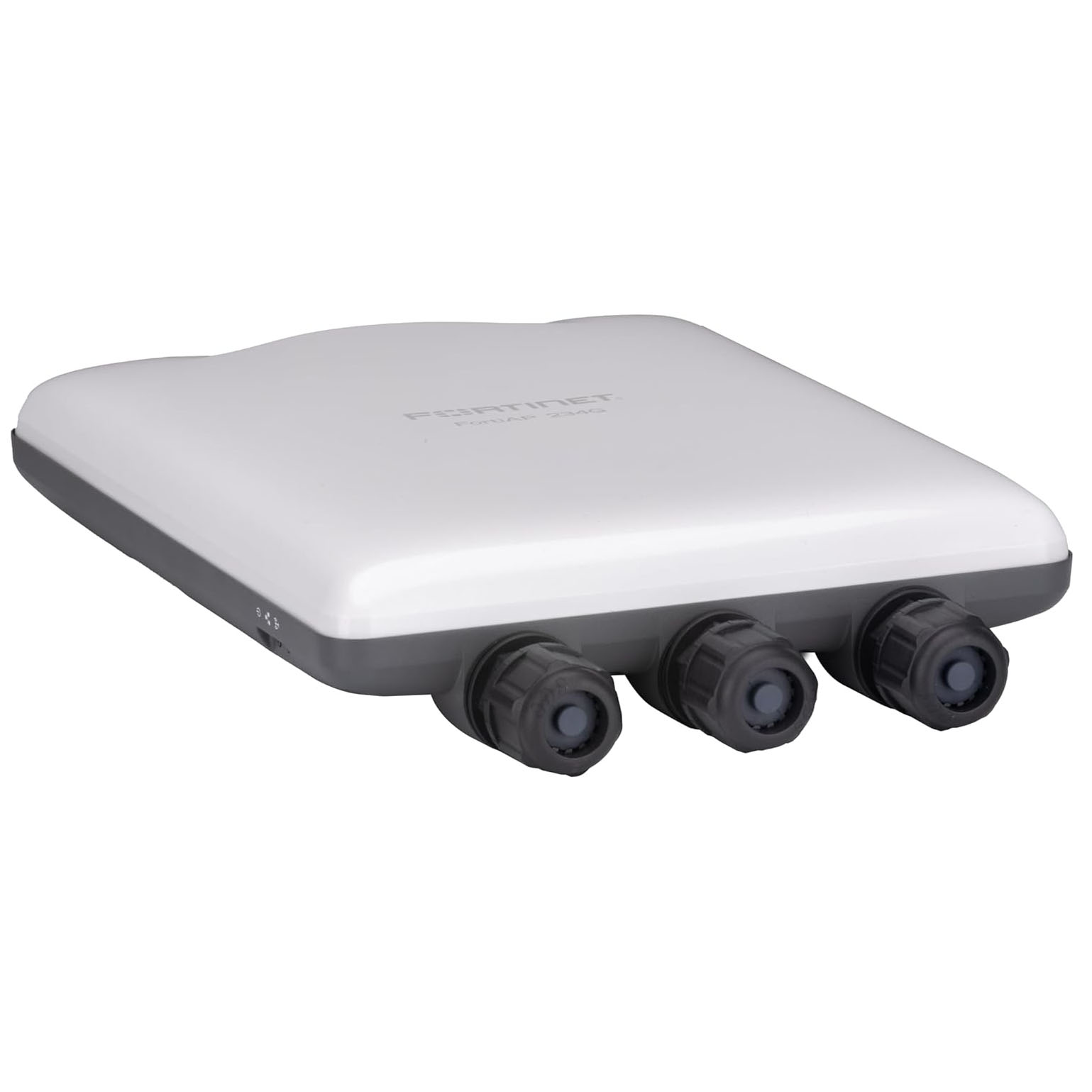

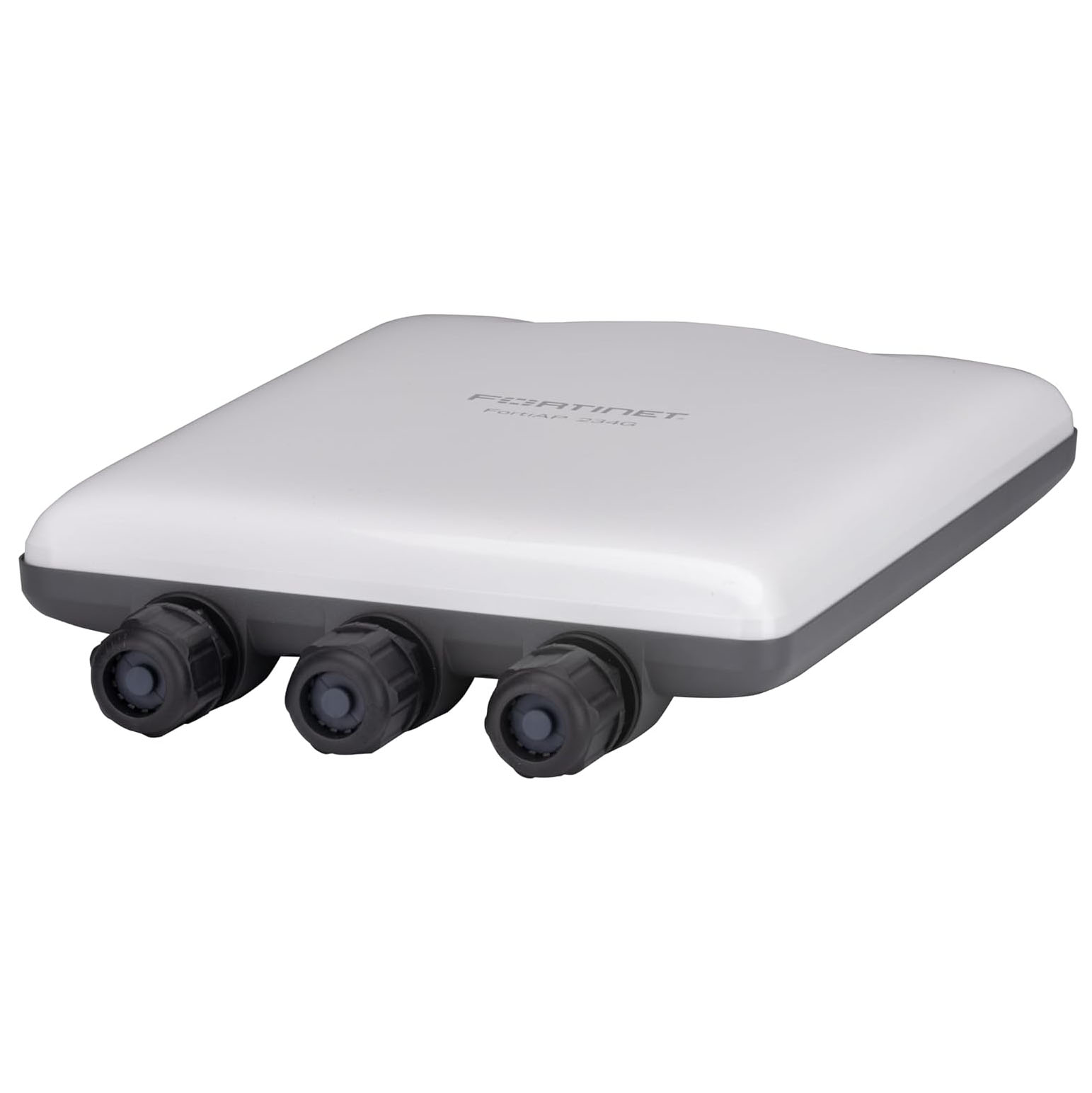

FAP-234G-B - Fortinet FortiAP 234G Wi-Fi 6E Access Point is listed by YYST Global for buyers looking for FORTINET FortiAP FAP-234G. FAP-234G-B FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 560.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-234G-B
- Brand: FORTINET
- Category: FortiAP FAP-234G
- Condition: New Factory Sealed
- Reference price: US$ 560.00
FAP-234G-B Overview
FAP-234G-B is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-234G-B - Fortinet FortiAP 234G Wi-Fi 6E Access Point. Category: FortiAP FAP-234G. Condition: New Factory Sealed.
FAP-234G-B Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-234G-B |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| FortiAP 234G | |
|---|---|
| Hardware | |
| Hardware Type | Outdoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 10 2*2.4GHz WiFI + 2*5GHz band WiFi + 2*5/6GHz dual band + 2*Tri-band Scanning + 1*Single band 2.4GHz BLE/ ZigBee + 1*GPS antenna |
| Antenna Type and Peak Gain | Cross dipole 2.4GHz band: 6.8dBi Cross dipole 5.0GHz bamd: 8.4dBi Cross dipole Dual band: 8.1 dBi for 5.0GHz, 5.5 dBi for 6 GHz Tr-band: 4.5 dBi for 2.4GHz, 5.5 dBi for 5 GHz, and 8.4 dBi for 6GHz band BLE antenna: 4.4dBi for 2.4Ghz GPS Circular polarized patch antenna 5.0dBi |
| Frequency Bands (GHz) | 2.4GHz Band: 2.400–2.4835 5.0GHz Band: 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850, 6.0GHz Band: 5.925–6.425, 6.425–6.525, 6.525–7, 5.925–6.875, 6.875–7.125 |
| Radio 1 Capabilities | Frequency band: 2.4 GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | Frequency band: 5.0 GHz Channel width: 20/40/80/80+80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | Frequency band: 2.4GHz, 5.0GHz, and 6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service and Scanning |
| Maximum Data Rate | Radio 1: up to 574 Mbps Radio 2: up to 1201 Mbps Radio 3: Up to 2401 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | 1*100/1000/2500 Base-T RJ45, 1*10/100/1000 Base-T RJ45, 1*RS-232 RJ45 Serial Port |
| MDI/MDIX | Supported |
| Power over Ethernet (PoE) | IEEE 802.3bt |
| Simultaneous SSIDs | Up to 24 |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Radio 1: 2.4GHz: 26 dBm / 398 mW (2 chains combined) Radio 2: 5GHz: 26 dBm / 398 mW (2 chains combined) Radio 3: 5GHz: 26 dBm / 398 mW (2 chains combined) 6GHz: 26dBm/398 mW (2 chians combined EIRP)* |
| Kensington Lock | |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, 802.11u, 802.11v, 802.11w, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
| SSIDs Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
| Wireless Monitoring Capabilities | |
| Rogue Scan radio modes | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 10.15 x 8.50 x 2.26 inches (258 x 216 x 57.3 mm) |
| Weight | 3.05 lbs (1.38 kg) |
| Package (shipping) Weight | 8.15 lbs (3.7 kg) |
| Accessories | |
| Mounting Options | Wall and Pole installation |
| Included Accessories | Wall and Pole installation brackets with mounting kits |
| Environment | |
| Power Supply | PIN060-54PR 60W PoE with reset switch shipped with the AP |
| Power Consumption (Maximum) | 28 W |
| PoE Mode | |
| Humidity | 5% - 90% non condensing |
| Operating / Storage Temperature | -40°F to 140°F (-40°C to 60°C) / -58°F to 158°F (-50°C to 70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | > 10 Years |
| IP Rating | IP67 |
| Surge Protection Built In | No |
| Hit-less PoE Failover | Yes |
| Certifications | |
| WiFi Alliance Certified | No |
| DFS | No |
| Warranty | |
| Limited Lifetime Warranty | Yes |
FAP-234G-B Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-234G-B FAQ
What is FAP-234G-B?
FAP-234G-B - Fortinet FortiAP 234G Wi-Fi 6E Access Point is a FORTINET FortiAP FAP-234G product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-234G-B?
The listed datasheet series for FAP-234G-B is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-234G-B?
The listed exact model for FAP-234G-B is FAP-234G-B. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-234G-B available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-234G-B. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-234G-B?
The current reference price for FAP-234G-B is US$ 560.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
