FORTINET FAP-234F-B FortiAP FAP-234F
- 763 412 7282
- +86 010 69614620
FAP-234F-B Buying Guide

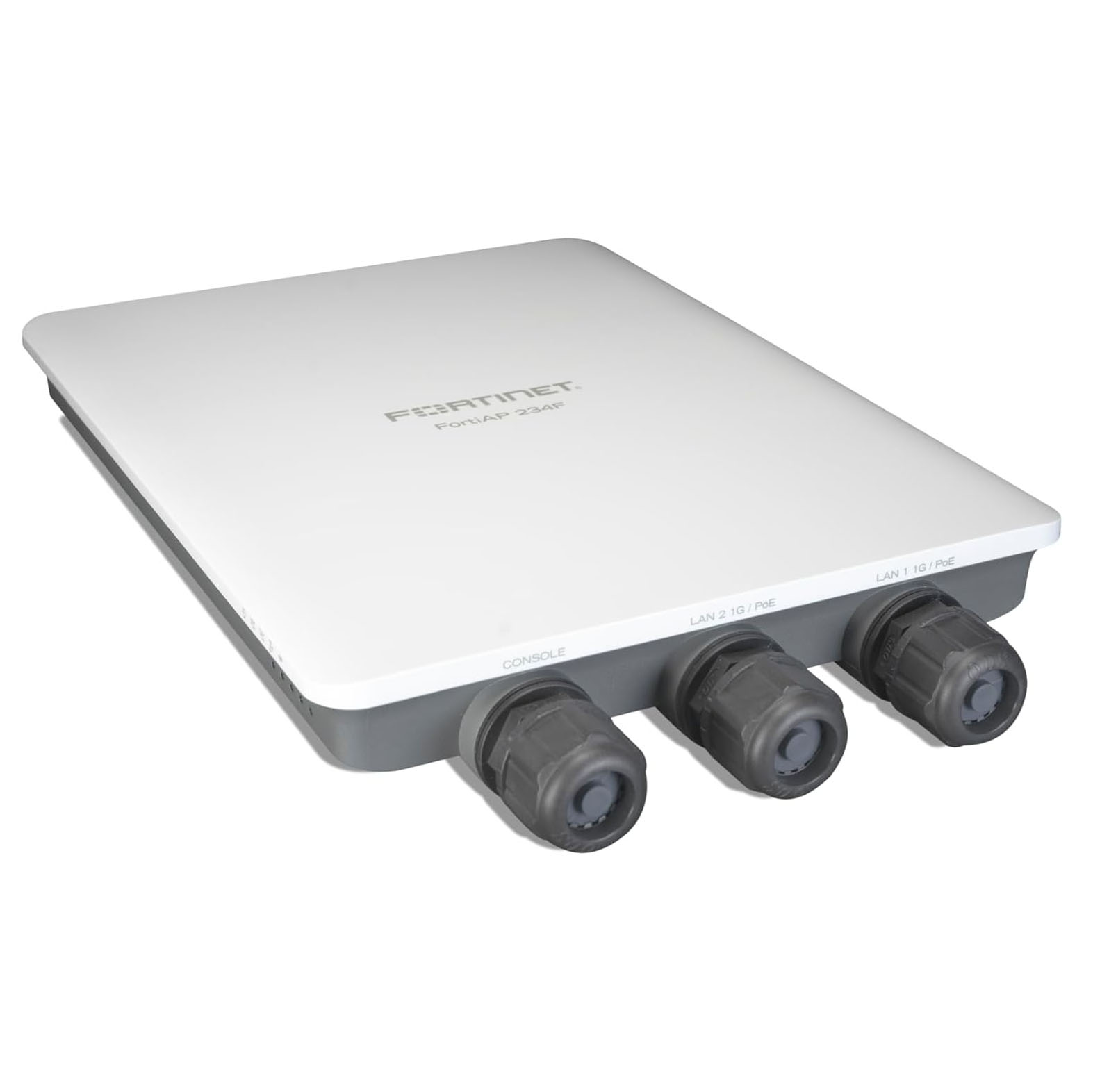

FAP-234F-B - FortiAP 234F Outdoor Wireless Access Point is listed by YYST Global for buyers looking for FORTINET FortiAP FAP-234F. FAP-234F-B FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 560.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-234F-B
- Brand: FORTINET
- Category: FortiAP FAP-234F
- Condition: New Factory Sealed
- Reference price: US$ 560.00
FAP-234F-B Overview
FAP-234F-B is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-234F-B - FortiAP 234F Outdoor Wireless Access Point. Category: FortiAP FAP-234F. Condition: New Factory Sealed.
FAP-234F-B Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-234F-B |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| FortiAP 234F | |
| Hardware | |
| Hardware Type | Ruggedized indoor/outdoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 2 dual band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee |
| Antenna Type and Peak Gain | Directional patch antenna Dual band antenna Scanning radio: 3.5 dBi in 2.4 GHz band and 4.5 dBi in 5 GHz band BLE antenna: 3.5 dBi in 2.4 GHz band |
| Antenna Beam Width | 2.4GHz Horizontal BW 70 degree Vertical BW 30 degree 5.0GHz Horizontal BW 78 degree Vertical BW 25 degree |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | Frequency band: 5.0GHz Channel width: 20/40/80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | Frequency bands: 2.4 GHz and 5.0 GHz MIMO Chains: 1x1 Frequency Scanning |
| Maximum Data Rate | Radio 1: up to 574 Mbps Radio 2: up to 1200 Mbps Radio 3: Frequency scanning only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |

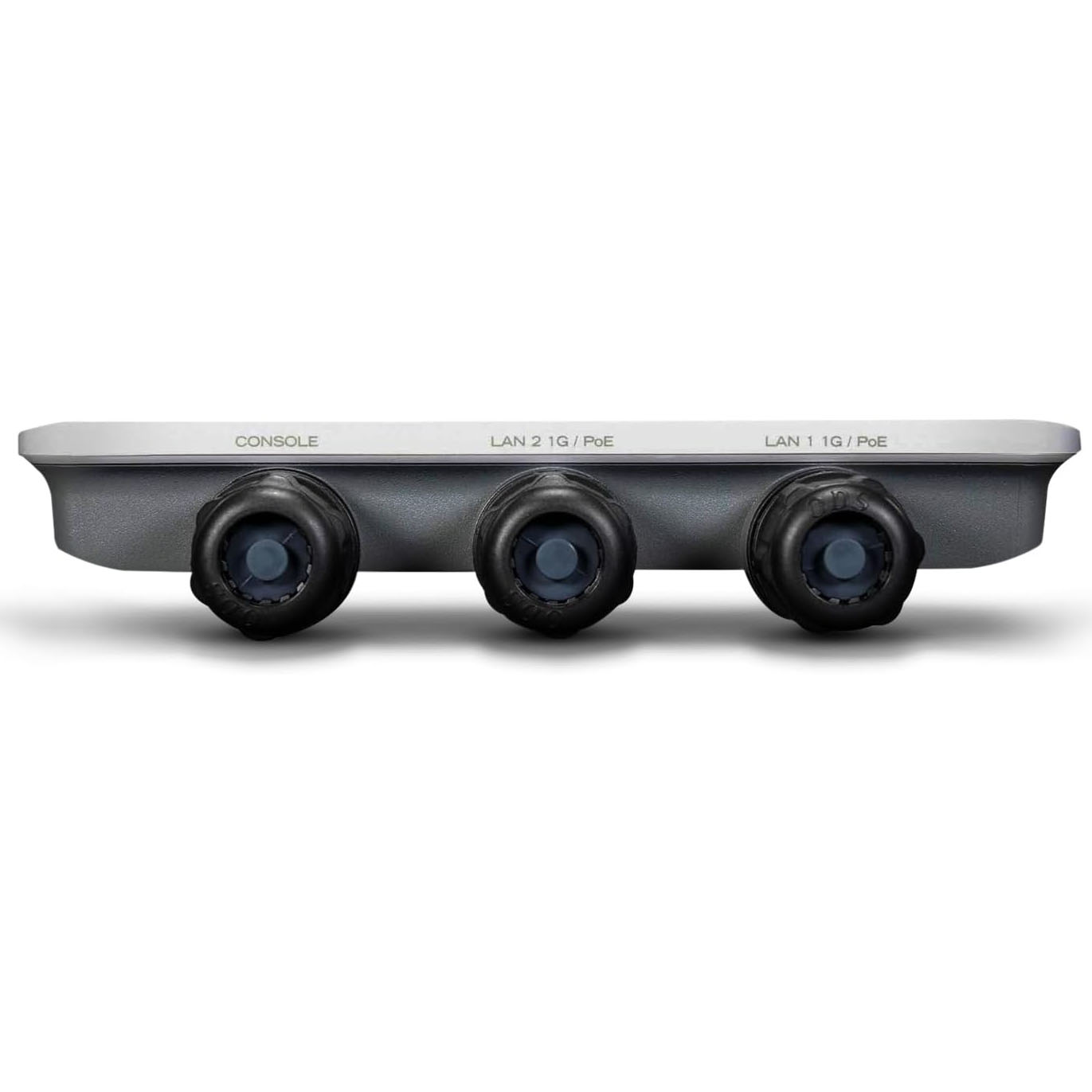

| Interfaces | 2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port |
| MDI/MDIX | Supported |
| Simultaneous SSIDs | Up to 8 per client serving radio (7 if background scanning is enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power (Conducted) | Radio 1: 2.4 GHz: 27 dBm / 500 mW (2 chains combined)* Radio 2: 5 GHz: 25.5 dBm / 354 mW (2 chains combined)* Radio 3: N/A |
| Kensington Lock | No |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11u, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| OFDMA | Yes (UL and DL) |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
| Onboard Security Functions | |
| UTP Capable | No |
| UTP Features | N/A |
| Wireless Monitoring Capabilities | |
| Rogue Scan radio modes | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 12.45 x 8.6 x 1.66 inches (316 x 218 x 42 mm) |
| Weight | 2.88 lbs (1.307 kg) |
| Package (shipping) Weight | 7.93 lbs (3.6 kg) |
| Accessories | |
| Mounting Options | Wall and Pole |
| Included Accessories | Wall and Pole mounting kit |
| Power Supply | 802.3at PoE: GPI-130 ; ships with PoE Injector (reset functionality) |
| Environment | |
| PSE functionality | No |
| Power Consumption (Maximum) | 15.5 W |
| PoE Mode | 802.3at PoE default( Ships with Passive PoE injector) 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced Tx power R1/R2 17dBm |
| Humidity | 10% to 90% non condensing |
| Operating / Storage Temperature | -40°F to 140°F (-40°C to 60°C) / -40°F to 176°F (-40°C to 80°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | > 10 Years |
| IP Rating | IP67 |
| Surge Protection Built In | Yes |
| Hit-less PoE Failover | N/A |
| Certifications | |
| WiFi Alliance Certified | Yes (includes Passpoint) |
| DFS | FCC, IC, CE, Japan, Brazil, Taiwan and Korea |
| Warranty | |
| Limited Lifetime Warranty | Yes |
FAP-234F-B Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-234F-B FAQ
What is FAP-234F-B?
FAP-234F-B - FortiAP 234F Outdoor Wireless Access Point is a FORTINET FortiAP FAP-234F product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-234F-B?
The listed datasheet series for FAP-234F-B is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-234F-B?
The listed exact model for FAP-234F-B is FAP-234F-B. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-234F-B available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-234F-B. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-234F-B?
The current reference price for FAP-234F-B is US$ 560.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
