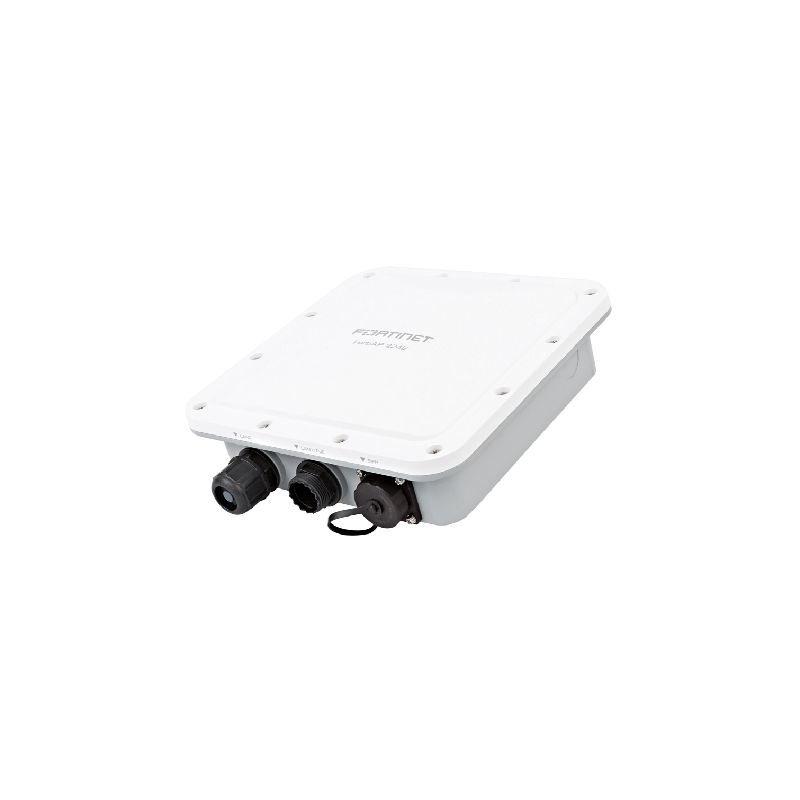

FORTINET FAP-224E FortiAP Standard Access Points
- 763 412 7282
- +86 010 69614620
FAP-224E Buying Guide
FAP-224E - Fortinet 224E IP67 Rated Wireless Outdoor Access Points is listed by YYST Global for buyers looking for FORTINET FortiAP Standard Access Points. FAP-224E FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 346.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-224E
- Brand: FORTINET
- Category: FortiAP Standard Access Points
- Condition: New Factory Sealed
- Reference price: US$ 346.00
FAP-224E Overview
FAP-224E is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-224E - Fortinet 224E IP67 Rated Wireless Outdoor Access Points. Category: FortiAP Standard Access Points. Condition: New Factory Sealed.
FAP-224E Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-224E |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| Hardware | |
| Indoor/Outdoor Deployment | Outdoor AP |
| Number of Radios | 2 + 1 BT/BLE |
| Number of Antennas | 4 External + 1 BT/BLE External |
| Antenna Type and Peak Gain | Dipole: 6 dBi for 2.4 GHz, 8 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
| Bluetooth Low Energy (BT/BLE) Radio | — |
| Interfaces | 1x 10/100/1000 Base-T RJ45, 1x 10/100/1000 Base-T RJ45 (PoE), 1x optical fiber SFP cage |
| Power over Ethernet (PoE) | IEEE 802.3af/at |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 2.4 GHz: 24 dBm / 251 mW (2 chains combined)* 5 GHz: 24 dBm / 251 mW (2 chains combined)* |
| Kensington Lock | No |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh (when managed by controller) |
| Per Radio Client Capacity | Up to 512 |
| Cellular Co-existence | No |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac Wave 2 MU-MIMO | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Full-time |
| WIPS / WIDS Radio Modes | Background, Full-time |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 8.4 x 8.4 x 2.66 inches (214 x 214 x 67.5 mm) |
| Weight | 3.8 lbs (1.7 kg) |
| Package (shipping) Weight | 5.82 lbs (2.64 kg) |
| Mounting Options | Wall Mount or Pole Mount |
| Included Accessories | Mounting kit for Wall or Pole, Grounding cable |
| Environment | |
| Power Supply | GPI-115, or GPI-130 |
| Power Consumption (Max.) | 12.95 W |
| Humidity | 5% to 90% non-condensing |
| Operating Temperature | --40 to 149°F (-20–65°C) |
| Storage Temperature | -4 to 158˚F (-20 to 70˚C) |
| Directives | Low Voltage Directive • RoHS2 |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | >10 Years |
| IP Rating | IP67 |
| Surge Protection Built In | Yes |
| Hit-less PoE Failover | No |
| Certifications | |
| WiFi Alliance Certified | Yes |
| DFS | In Process |
| Certifications | |
| Limited Lifetime Warranty | No — 1 Year Limited Warranty |
FAP-224E Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-224E FAQ
What is FAP-224E?
FAP-224E - Fortinet 224E IP67 Rated Wireless Outdoor Access Points is a FORTINET FortiAP Standard Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-224E?
The listed datasheet series for FAP-224E is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-224E?
The listed exact model for FAP-224E is FAP-224E. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-224E available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-224E. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-224E?
The current reference price for FAP-224E is US$ 346.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
