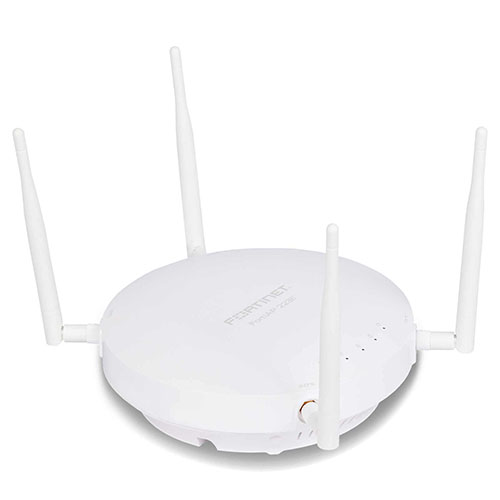

FORTINET FAP-223E-P FortiAP Standard Access Points
- 763 412 7282
- +86 010 69614620
FAP-223E-P Buying Guide
FAP-223E-P - FortiAP-223E Indoor Dual radio Wave 2 AP is listed by YYST Global for buyers looking for FORTINET FortiAP Standard Access Points. FAP-223E-P FORTINET wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 210.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FAP-223E-P
- Brand: FORTINET
- Category: FortiAP Standard Access Points
- Condition: New Factory Sealed
- Reference price: US$ 210.00
FAP-223E-P Overview
FAP-223E-P is a FORTINET wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FAP-223E-P - FortiAP-223E Indoor Dual radio Wave 2 AP. Category: FortiAP Standard Access Points. Condition: New Factory Sealed.
FAP-223E-P Specification
| Datasheet series | Fortinet FortiAP Access Points |
| Exact model | FAP-223E-P |
| Product role | Enterprise FortiAP wireless access point; confirm radio generation, country domain and mounting kit |
| Management check | Confirm FortiGate/FortiWLC/FortiCloud management mode and firmware compatibility |
| Procurement check | Confirm power option, accessories, warranty/support term, region and project compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiAP official product documentation |
| Hardware | ||
| Indoor/Outdoor Deployment | Indoor AP | |
| Number of Radios | 2 | |
| Number of Antennas | 4 External | |
| Peak Antenna Gain | Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz | |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 | |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) | |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) | |
| Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps | |
| Bluetooth Low Energy (BT/BLE) Radio | — | |
| Interfaces | 1x 10/100/1000 Base-T RJ45, 1x Type A USB | |
| Power over Ethernet (PoE) | IEEE 802.3af | |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) | |
| EAP Type(s) | ||
| User/Device Authentication | ||
| Maximum Tx Power | ||
| Kensington Lock | Yes | |
| IEEE Standards | ||
| SSID Types Supported | Local-Bridge, Tunnel, Mesh | |
| Per Radio Client Capacity | Up to 512 | |
| Cellular Co-existence | Yes | |
| LED Off Mode | Yes | |
| Advanced 802.11 Features | ||
| 802.11ac Wave 2 MU-MIMO | Yes | |
| Transmit Beam Forming (TxBF) | Yes | |
| Low-Density Parity Check (LDPC) Encoding | Yes | |
| Maximum Likelihood Demodulation (MLD) | Yes | |
| Maximum Ratio Combining (MRC) | Yes | |
| 802.11ac 20/40/80 MHz Channel | Yes | |
| A-MPDU and A-MSDU Packet Aggregation | Yes | |
| MIMO Power Save | Yes | |
| Short Guard Interval | Yes | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan Radio Modes | Background, Full-time | |
| WIPS / WIDS Radio Modes | Background, Full-time | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 6.3 x 6.3 x 1.85 inches (160 x 160 x 47 mm) | |
| Weight | 1.1 lbs (0.5 kg) | |
| Package (shipping) Weight | 5.3 lbs (2.4 kg) | |
| Mounting Options | Ceiling, T-Rail and Wall | |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall, 4 dipole antennas | |
| Environment | ||
| Power Supply | Adapter Input: 100–240V, 50/60Hz, 0.4A Output: 12V DC, 2A | |
| Power Consumption (Max.) | 10.5 W | |
| Humidity | 5% to 90% non-condensing | |
| Operating Temperature | -4 to 122˚F (-20 to 50˚C) | |
| Storage Temperature | -40 to 158˚F (-40 to 70˚C) | |
| Directives | Low Voltage Directive • RoHS2 | |
| UL2043 Plenum Material | Yes | |
| Mean Time Between Failures | >30 Years | |
| IP Rating | — | |
| Surge Protection Built In | — | |
| Hit-less PoE Failover | No | |
| Certifications | ||
| WiFi Alliance Certified | Yes | |
| DFS | FCC, IC, CE, Japan, Taiwan | |
| Certifications | ||
| Limited Lifetime Warranty | Yes | |
FAP-223E-P Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FAP-223E-P FAQ
What is FAP-223E-P?
FAP-223E-P - FortiAP-223E Indoor Dual radio Wave 2 AP is a FORTINET FortiAP Standard Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FAP-223E-P?
The listed datasheet series for FAP-223E-P is Fortinet FortiAP Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FAP-223E-P?
The listed exact model for FAP-223E-P is FAP-223E-P. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FAP-223E-P available from YYST Global?
YYST Global can help check availability, lead time and configuration for FAP-223E-P. Contact the sales team before ordering to confirm current stock.
What is the price of FAP-223E-P?
The current reference price for FAP-223E-P is US$ 210.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
