STS-K058 Buying Guide

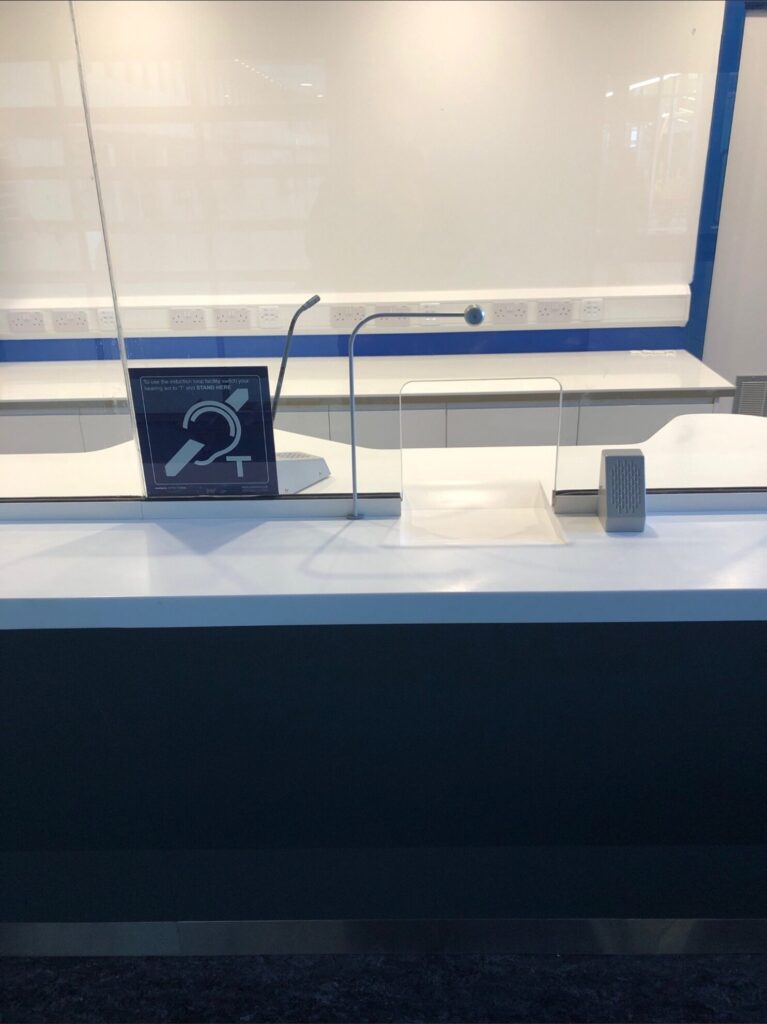

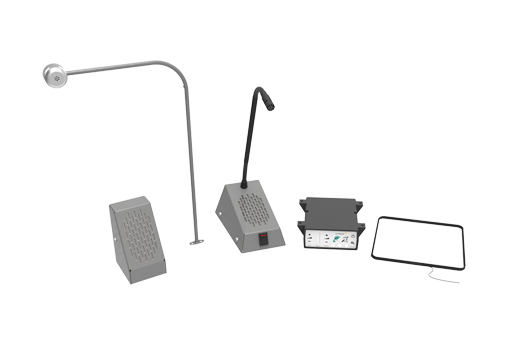

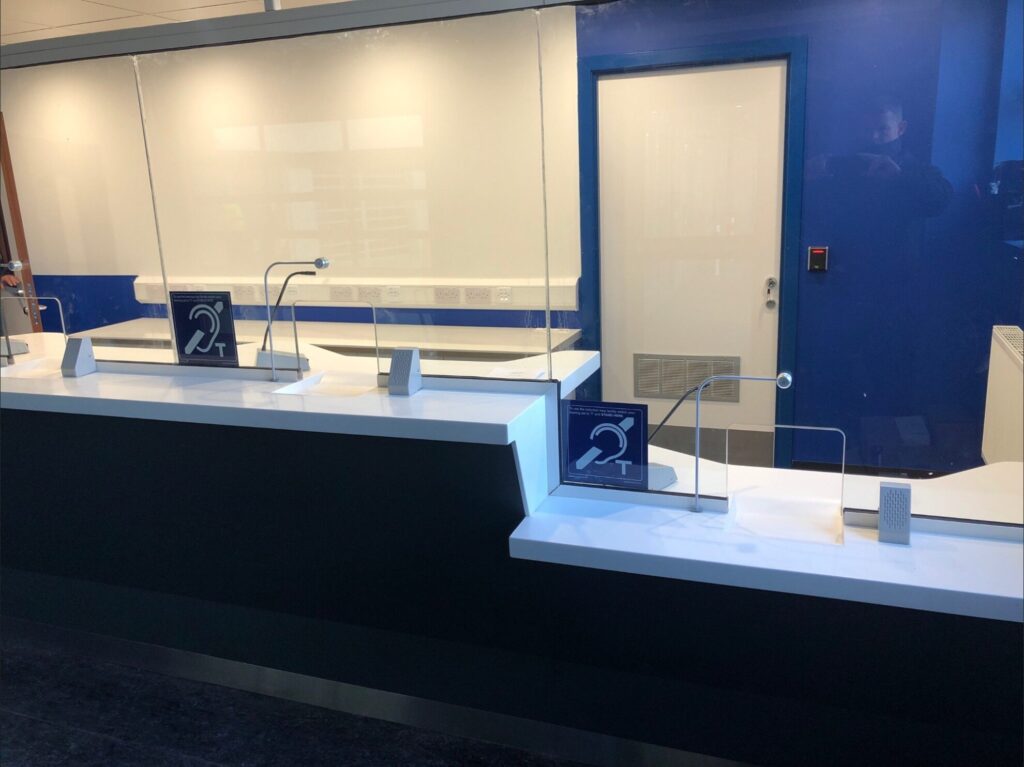

STS-K058-Contacta Window Intercom System w/ Screen-Mounted Microphone is listed by YYST Global for buyers looking for Contacta Contacta. STS-K058 Contacta enterprise IT hardware. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 1,000.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: STS-K058
- Brand: Contacta
- Category: Contacta
- Condition: New Factory Sealed
- Reference price: US$ 1,000.00
STS-K058 Overview
STS-K058 is a Contacta enterprise IT hardware listed by YYST Global for enterprise hardware procurement, replacement projects and infrastructure expansion. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: STS-K058-Contacta Window Intercom System w/ Screen-Mounted Microphone. Category: Contacta. Condition: New Factory Sealed.
STS-K058 Specification
| Physical Data | Technical Data | ||
Speech Transfer Amplifier | Dimensions: Height - 116mm (4.57”) Width - 115mm (4.53”) Depth - 40mm (1.57”) Weight: 100g (0.22l s) Construction: ABS Plastic Finish: Matt Black Fine Texture | Supply Voltage | 12-14 VDC | |
Quiescent Current | 100mA typical | |||
Operating Current | 2A typical on speech peaks | |||
Power Switch | Push on - push off (tact switch under membrane) | |||
Microphones | Electret, supply 5V via 2.2K load resistor | |||
Speaker Output Power | RMS: 2.5W / 8 Ω 4.4W / 4 Ω | |||
Loop Drive Compliance | Constant current, bounded by 4V RMS & 2A RMS | |||
Total Harmonic Distortion | <5% (loop and speakers) | |||
Staff Loudspeaker Unit | Dimensions: Height - 370mm (6.30”) Width - 95mm (2.76”) Depth - 150mm (3.94”) Weight: 820g (1.80l s) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Microphone | Directional Response | Cardioid | ||
Frequency Response | 150Hz - 10500Hz | |||
Sensitivity | 49.5dB+ 2dB @ 1kHz | |||
Impedance | 1.6K Ohms+ 3-% @ 1kHz | |||
PS-55 Power Supply | Dimensions: Height - 93mm (3.66”) Width - 49mm (1.93”) Depth - 36mm (1.42”) Ca le length: 1.8m (70.87”) Weight: 180g (0.39lbs) Construction: ABS Case Finish: Black | Input | 100-240V 50-60Hz 1A max | |
Output | 14V 2.14A 30W max | |||
Surface Mounted Speaker | Dimensions: Height – 110mm (4.33”) Width – 60mm (2.36”) Depth – 75mm (2.95”) Weight: 550g (1.21lbs) Construction: Mild Steel Finish: Grey Powder Coated Leatherette | RMS | 5W | |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Screen Mounted Microphone with Bent Stem | Dimensions: Height – 330mm (12,9”) Width – 200mm (7.87”) Depth – 25mm (0.98”) Weight – 105g (0.23glbs) Construction: Mild Steel Finish: Black | Directional Response | Cardioid | |
Frequency Response | 70Hz - 10300Hz | |||
Sensitivity | -47 ±3dB @ 1kHz | |||
Impedance | 680 Ohms =/- @ 1KHz | |||
STS-K058 Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
STS-K058 FAQ
What is STS-K058 used for?
STS-K058-Contacta Window Intercom System w/ Screen-Mounted Microphone is a Contacta accessory or component in the Contacta category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with STS-K058?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with STS-K058?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of STS-K058?
The current reference price for STS-K058 is US$ 1,000.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
