STS-K009-IP-L-B Buying Guide

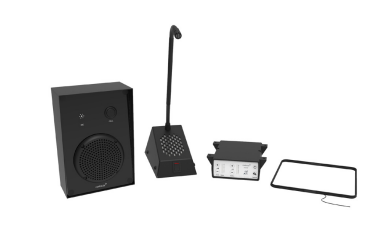

STS-K009-IP-L-B-Contacta IP55 Surface Mounted Entry System is listed by YYST Global for buyers looking for Contacta Contacta. STS-K009-IP-L-B Contacta enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 1,052.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: STS-K009-IP-L-B
- Brand: Contacta
- Category: Contacta
- Condition: New Factory Sealed
- Reference price: US$ 1,052.00
STS-K009-IP-L-B Overview
STS-K009-IP-L-B is a Contacta enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: STS-K009-IP-L-B-Contacta IP55 Surface Mounted Entry System. Category: Contacta. Condition: New Factory Sealed.
STS-K009-IP-L-B Specification
Physical Data(boxed)
Dimensions | Height-120mm(4.72") Width-640mm(25.19") Depth-340mm(13.38") |
Construction | Mixed |
Finish | Black Powder Coated Leatherette |
Physical and Technical Data (Individual Parts)
Component | Physical Data | Technical Data | ||
Speech Transfer Amplifier | Dimensions: Height - 116mm (4.57”) Width - 115mm (4.53”) Depth - 40mm (1.57”) Weight: 100g (0.22l s) Construction: ABS Plastic Finish: Matt Black Fine Texture | Supply Voltage | 12-14 VDC | |
Quiescent Current | 100mA typical | |||
Operating Current | 2A typical on speech peaks | |||
Power Switch | Push on - push off (tact switch under membrane) | |||
Microphones | Electret, supply 5V via 2.2K load resistor | |||
Speaker Output Power | RMS: 2.5W / 8 Ω 4.4W / 4 Ω | |||
Loop Drive Compliance | Constant current, ounded y 4V RMS & 2A RMS | |||
Total Harmonic Distortion | <5% (loop and speakers) | |||
PS-55 Power Supply | Dimensions: Height - 93mm (3.66”) Width - 49mm (1.93”) Depth - 36mm (1.42”) Cable length: 1.8m (70.87”) Weight: 180g (0.39lbs) Construction: ABS Case Finish: Black | Input | 100-240V 50-60Hz 1A max | |
Output | 14V 2.14A 30W max | |||
Staff Loudspeaker Unit | Dimensions: Height - 370mm (6.30”) Width - 95mm (2.76”) Depth - 150mm (3.94”) Weight: 820g (1.80lbs) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Microphone | Directional Response | Cardioid | ||
Frequency Response | 150Hz - 10500Hz | |||
Sensitivity | 49.5dB+ 2dB @ 1kHz | |||
Impedance | 1.6K Ohms+ 3-% @ 1kHz | |||
Surface Mounted Call Unit | Dimensions: Height – 184mm (7.2”) Width – 124mm (4.8”) Depth – 80mm (3.14”) Ca le length – 3m (8.3ft) Construction: Mixed, Marine Grade 316 Stainless Steel, Polycar onate Finish: Black Powder Coated Leatherette | Speaker | Rated Power Input | 15W |
Impedance | 4 Ohm | |||
Sensitivity | SPL 1W @ 1M 84dB | |||
Frequency Response | 100Hz – 20,000Hz | |||
Microphone | Directional Response | Omnidirectional | ||
Frequency Response | 100Hz – 20,000Hz | |||
Sensitivity | -42dB +/1 3dB @ 1kHz (0dB=1V/pa) | |||
Output Impedance | 2.2K | |||
Counter Hearing Loop Aerial | Dimensions: To be moulded on site to required size/ shape y installers. Weight: 100g (0.22l s) Construction: Copper Wire with Black Protective Covering Finish: Black | |||
Warranty: 1 year
STS-K009-IP-L-B Ordering Information
This listing is a software license, subscription or support entitlement rather than standalone hardware. Confirm the covered device model, service level, contract duration, activation region, start date and delivery method before ordering.
STS-K009-IP-L-B FAQ
What does the STS-K009-IP-L-B entitlement cover?
STS-K009-IP-L-B-Contacta IP55 Surface Mounted Entry System is listed as a Contacta license, subscription or support entitlement. Confirm the protected device or account, included services and exact contract term on the quotation.
Is STS-K009-IP-L-B a physical hardware appliance?
This listing should not be assumed to include hardware. Confirm whether fulfillment uses an activation code, electronic entitlement, account registration or another vendor process.
What must be checked before ordering STS-K009-IP-L-B?
Validate the parent device serial number or model, service start date, region, renewal eligibility, transfer restrictions and required vendor account before purchase.
What is the price of STS-K009-IP-L-B?
The current reference price for STS-K009-IP-L-B is US$ 1,052.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
