Contacta STS-K002L
- 763 412 7282
- +86 010 69614620
STS-K002L Buying Guide
STS-K002L-Contacta Surface Mounted System is listed by YYST Global for buyers looking for Contacta Contacta. STS-K002L Contacta enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 721.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: STS-K002L
- Brand: Contacta
- Category: Contacta
- Condition: New Factory Sealed
- Reference price: US$ 721.00
STS-K002L Overview
STS-K002L is a Contacta enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

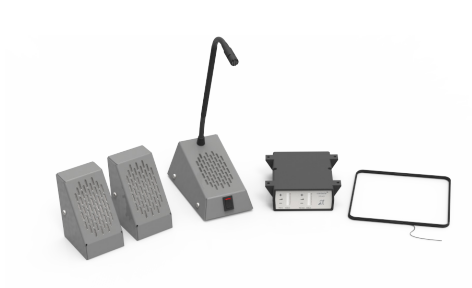

Product name: STS-K002L-Contacta Surface Mounted System. Category: Contacta. Condition: New Factory Sealed.
STS-K002L Specification
Physical Data(boxed)
Dimensions | Height-130mm(5.1") Width-340mm(13.38”) Depth-240mm(9.44") |
Weight | 2.90kg(6.39Lbs) |
Construction | Mild Steel |
ABS Plastic | |
Finish | Grey Powder Coated Leatherette |
Black Textured Powder Coated |
Physical and Technical Data (Individual Parts)
Component | Physical Data | Technical Data | ||
Speech Transfer Amplifier | Dimensions: Height - 116mm (4.57”) Width - 115mm (4.53”) Depth - 40mm (1.57”) Weight: 100g (0.22lbs) Construction: ABS Plastic Finish: Matt Black Fine Texture | Supply Voltage | 12-14 VDC | |
Quiescent Current | 100mA typical | |||
Operating Current | 2A typical on speech peaks | |||
Power Switch | Push on - push off (tact switch under membrane) | |||
Microphones | Electret, supply 5V via 2.2K load resistor | |||
Speaker Output Power | RMS: 2.5W / 8 Ω 4.4W / 4 Ω | |||
Loop Drive Compliance | Constant current, bounded by 4V RMS & 2A RMS | |||
Total Harmonic Distortion | <5% (loop and speakers) | |||
PS-55 Power Supply | Dimensions: Height - 93mm (3.66”) Width - 49mm (1.93”) Depth - 36mm (1.42”) Cable length: 1.8m (70.87”) Weight: 180g (0.39lbs) Construction: ABS Case Finish: Black | Input | 100-240V 50-60Hz 1A max | |
Output | 14V 2.14A 30W max | |||
Staff Loudspeaker Unit | Dimensions: Height - 370mm (6.30”) Width - 95mm (2.76”) Depth - 150mm (3.94”) Weight: 820g (1.80lbs) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Microphone | Directional Response | Cardioid | ||
Frequency Response | 150Hz - 10500Hz | |||
Sensitivity | 49.5dB+ 2dB @ 1kHz | |||
Impedance | 1.6K Ohms+ 3-% @ 1kHz | |||
Surface Mounted Speaker and Microphone | Dimensions: Height – 110mm (4.33”) Width – 60mm (2.36”) Depth – 75mm (2.95”) Weight: 550g (1.21lbs) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Microphone | Directional Response | Omni-Directional | ||
Frequency Response | 100Hz - 5000Hz | |||
Sensitivity | -42.5 ± 2.0dB @ 1KHz (0dB=1V/pa) | |||
Impedance | 2K Ohms =/- @ 1KHz | |||
Counter Hearing Loop Aerial | Dimensions: To be moulded on site to required size/ shape y installers. Weight: 100g (0.22lbs) Construction: Copper Wire with Black Protective Covering Finish: Black | |||
Warranty: 1 year
STS-K002L Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
STS-K002L FAQ
What is STS-K002L used for?
STS-K002L-Contacta Surface Mounted System is a Contacta accessory or component in the Contacta category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with STS-K002L?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with STS-K002L?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of STS-K002L?
The current reference price for STS-K002L is US$ 721.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
