Contacta STS-K001L
- 763 412 7282
- +86 010 69614620
STS-K001L Buying Guide
STS-K001L-Contacta Bridge Bar System is listed by YYST Global for buyers looking for Contacta Contacta. STS-K001L Contacta enterprise IT hardware. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 795.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: STS-K001L
- Brand: Contacta
- Category: Contacta
- Condition: New Factory Sealed
- Reference price: US$ 795.00
STS-K001L Overview
STS-K001L is a Contacta enterprise IT hardware listed by YYST Global for enterprise hardware procurement, replacement projects and infrastructure expansion. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

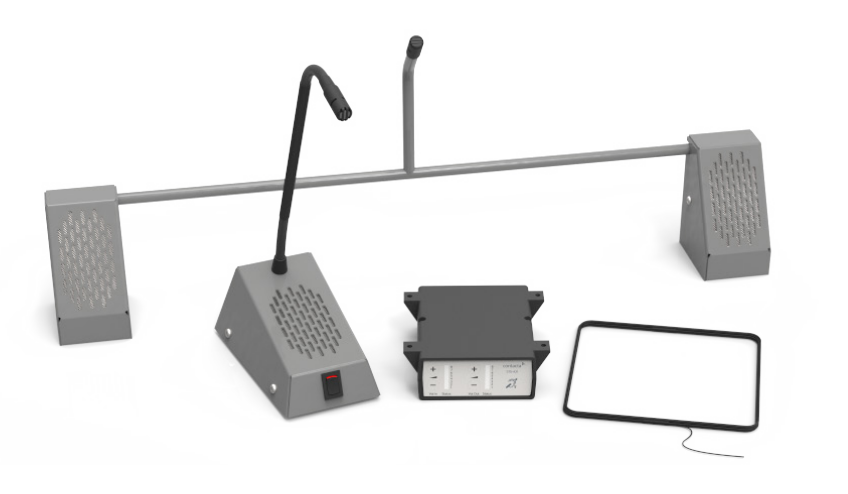

Product name: STS-K001L-Contacta Bridge Bar System. Category: Contacta. Condition: New Factory Sealed.
STS-K001L Specification
| Datasheet series | Contacta Assistive Listening Systems |
| Exact model | STS-K001L |
| Product role | Assistive listening or speech transfer system; confirm kit configuration, microphone/speaker options and installation requirement |
| Deployment check | Confirm counter/window type, power, loop or speech transfer accessories and compliance requirements |
| Procurement check | Confirm exact kit contents, accessories, condition, warranty and lead time |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Contacta official product page |
Physical Data(boxed)
Dimensions | Height-120mm(4.72”) Width-640mm(25.19") Depth-340mm(13.38") |
Weight | 3.72kg(8.20Lbs) |
Construction | Mild Steel |
ABS Plastic | |
Finish | Grey Powder Coated Leatherette |
Black Textured Powder Coated |
Physical and Technical Data (Individual Parts)
Component | Physical Data | Technical Data | ||
Speech Transfer Amplifier | Dimensions: Height - 116mm (4.57”) Width - 115mm (4.53”) Depth - 40mm (1.57”) Weight: 100g (0.22l s) Construction: ABS Plastic Finish: Matt Black Fine Texture | Supply Voltage | 12-14 VDC | |
Quiescent Current | 100mA typical | |||
Operating Current | 2A typical on speech peaks | |||
Power Switch | Push on - push off (tact switch under membrane) | |||
Microphones | Electret, supply 5V via 2.2K load resistor | |||
Speaker Output Power | RMS: 2.5W / 8 Ω 4.4W / 4 Ω | |||
Loop Drive Compliance | Constant current, bounded by 4V RMS & 2A RMS | |||
Total Harmonic Distortion | <5% (loop and speakers) | |||
PS-55 Power Supply | Dimensions: Height - 93mm (3.66”) Width - 49mm (1.93”) Depth - 36mm (1.42”) Cable length: 1.8m (70.87”) Weight: 180g (0.39lbs) Construction: ABS Case Finish: Black | Input | 100-240V 50-60Hz 1A max | |
Output | 14V 2.14A 30W max | |||
Staff Loudspeaker Unit | Dimensions: Height - 370mm (6.30”) Width - 95mm (2.76”) Depth - 150mm (3.94”) Weight: 820g (1.80lbs) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 10300Hz | |||
Microphone | Directional Response | Cardioid | ||
Frequency Response | 150Hz - 10500Hz | |||
Sensitivity | 49.5dB+ 2dB @ 1kHz | |||
Impedance | 1.6K Ohms+ 3-% @ 1kHz | |||
Bridge Bar Customer Unit | Dimensions: Height – 245mm (9.64”) Width – 620mm (24.4”) Depth – 75mm (2.95”) Weight: 1.44kg (3.17l s) Construction: Mild Steel Finish: Grey Powder Coated Leatherette Black Textured Powder Coated | Speaker | RMS | 5W |
Impedance | 4Ω | |||
Output | SPL 1W @ 1M 85dB | |||
Frequency Response | 150Hz - 11000Hz | |||
Microphone | Directional Response | Cardioid | ||
Frequency Response | 70Hz - 10300Hz | |||
Sensitivity | -47 ±3dB @ 1kHz | |||
Impedance | 680 Ohms =/- @ 1KHz | |||
Counter Hearing Loop Aerial | Dimensions: To be moulded on site to required size/ shape y installers. Weight: 100g (0.22lbs) Construction: Copper Wire with Black Protective Covering Finish: Black | |||
Warranty: 1 year
STS-K001L Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
STS-K001L FAQ
What is STS-K001L?
STS-K001L-Contacta Bridge Bar System is a Contacta Contacta product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of STS-K001L?
The listed datasheet series for STS-K001L is Contacta Assistive Listening Systems. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of STS-K001L?
The listed exact model for STS-K001L is STS-K001L. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is STS-K001L available from YYST Global?
YYST Global can help check availability, lead time and configuration for STS-K001L. Contact the sales team before ordering to confirm current stock.
What is the price of STS-K001L?
The current reference price for STS-K001L is US$ 795.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
