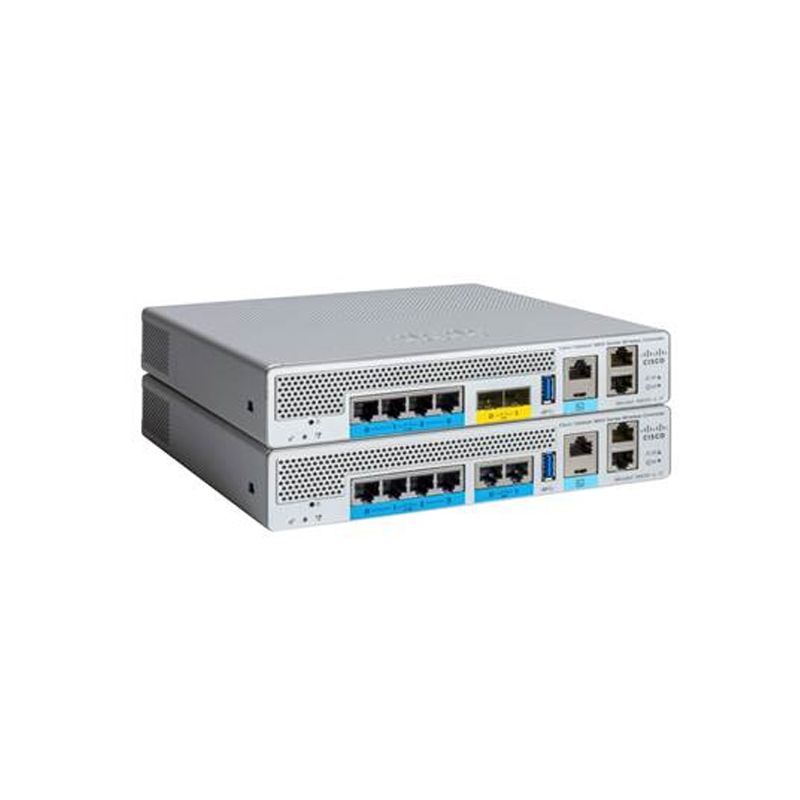

CISCO C9800-L-F-K9 Wireless Controllers

Wireless

IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2, 802.11ax

Wired, switching, and routing

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T, 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation

Data Requests For Comments (RFCs)

●  RFC 768 UDP

●  RFC 791 IP

●  RFC 2460 IPv6

●  RFC 792 ICMP

●  RFC 793 TCP

●  RFC 826 ARP

●  RFC 1122 Requirements for Internet Hosts

●  RFC 1519 CIDR

●  RFC 1542 BOOTP

●  RFC 2131 DHCP

●  RFC 5415 CAPWAP Protocol Specification

●  RFC 5416 CAPWAP Binding for 802.11

Security standards

●  Wi-Fi Protected Access (WPA)

●  IEEE 802.11i (WPA2, RSN)

●  Wi-Fi Protected Access 3 (WPA3)

●  RFC 1321 MD5 Message-Digest Algorithm

●  RFC 1851 ESP Triple DES Transform

●  RFC 2104 HMAC: Keyed-Hashing for Message Authentication

●  RFC 2246 TLS Protocol Version 1.0

●  RFC 2401 Security Architecture for the Internet Protocol

●  RFC 2403 HMAC-MD5-96 within ESP and AH

●  RFC 2404 HMAC-SHA-1-96 within ESP and AH

●  RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV

●  RFC 2407 Interpretation for ISAKMP

●  RFC 2408 ISAKMP

●  RFC 2409 IKE

●  RFC 2451 ESP CBC-Mode Cipher Algorithms

●  RFC 3280 Internet X.509 PKI Certificate and CRL Profile

●  RFC 4347 Datagram Transport Layer Security

●  RFC 5246 TLS Protocol Version 1.2

Encryption

●  Wired Equivalent Privacy (WEP) RC4 40, 104 and 128 bits (both static and shared keys)

●  Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP)

●  Data Encryption Standard (DES): DES-CBC, 3DES

●  Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit

●  DTLS: AES-CBC

●  IPsec: DES-CBC, 3DES, AES-CBC

●  802.1AE MACsec encryption

Authentication, Authorization, and Accounting (AAA)

●  IEEE 802.1X

●  RFC 2548 Microsoft Vendor-Specific RADIUS Attributes

●  RFC 2716 PPP EAP-TLS

●  RFC 2865 RADIUS Authentication

●  RFC 2866 RADIUS Accounting

●  RFC 2867 RADIUS Tunnel Accounting

●  RFC 2869 RADIUS Extensions

●  RFC 3576 Dynamic Authorization Extensions to RADIUS

●  RFC 5176 Dynamic Authorization Extensions to RADIUS

●  RFC 3579 RADIUS Support for EAP

●  RFC 3580 IEEE 802.1X RADIUS Guidelines

●  RFC 3748 Extensible Authentication Protocol (EAP)

●  Web-based authentication

●  TACACS support for management users

Management

●  Simple Network Management Protocol (SNMP) v1, v2c, v3

●  RFC 854 Telnet

●  RFC 1155 Management Information for TCP/IP-Based Internets

●  RFC 1156 MIB

●  RFC 1157 SNMP

●  RFC 1213 SNMP MIB II

●  RFC 1350 TFTP

●  RFC 1643 Ethernet MIB

●  RFC 2030 SNTP

●  RFC 2616 HTTP

●  RFC 2665 Ethernet-Like Interface Types MIB

●  RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions

●  RFC 2819 RMON MIB

●  RFC 2863 Interfaces Group MIB

●  RFC 3164 Syslog

●  RFC 3414 User-Based Security Model (USM) for SNMPv3

●  RFC 3418 MIB for SNMP

●  RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs

●  RFC 4741 Base NETCONF protocol

●  RFC 4742 NETCONF over SSH

●  RFC 6241 Network Configuration Protocol (NETCONF)

●  RFC 6242 NETCONF over SSH

●  RFC 5277 NETCONF event notifications

●  RFC 5717 Partial Lock Remote Procedure Call

●  RFC 6243 With-Defaults capability for NETCONF

●  RFC 6020 YANG

●  Cisco private MIBs

Management interfaces

●  Web-based: HTTP/HTTPS

●  Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port

●  Cisco Prime Infrastructure

Environmental conditions supported

Operating temperature:

●  32° to 104°F (0° to 40°C)

Note: The maximum temperature is derated by 1.0°C for every 1000 ft (305 m) of altitude above sea level.

Nonoperating temperature:

●  –13° to 158°F (–25° to 70°C)

Operating humidity:

●  5% to 95% noncondensing

Nonoperating humidity:

●  0% to 95% noncondensing

Altitude:

●  Operating altitude: 0 to 3000 m (0 to 10,000 ft)

●  Nonoperating altitude: 0 to 12,192 m (0 to 40,000 ft.)

Electrical input:

●  AC input frequency range: 47 to 63 Hz

●  AC input range: 90 to 264 VAC

Maximum power:

●  9800-L-C max measured power = 86.9W (with 4.5W USB load)

●  9800-L-F max measured power = 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load)

Maximum heat dissipation:

●  9800-L-C: 296.4 Btu/hr (with 4.5W USB load)

●  9800-L-F: 288.2 Btu/hr (assumes 2pc 2.5W SFP and with 4.5W USB load)

Sound power level measure:

●  Normal: 40 dBA at 25C

●  Maximum: 42.9 dBA at 40C

Power adapter:

●  Input power: 100 to 240 VAC; 50/60 Hz

Regulatory compliance

Safety:

●  UL/CSA 60950-1

●  IEC/EN 60950-1

●  AS/NZS 60950.1

●  CAN/CSA-C22.2 No. 60950-1

EMC - Emissions:

●  FCC 47CFR15

●  AS/NZS CISPR 22

●  CISPR 22

●  EN55022/EN55032 (EMI-1)

●  ICES-003

●  VCCI

●  KN 32 (EMI-2)

●  CNS-13438

Class A

EMC – Emissions:

●  EN61000-3-2 Power Line Harmonics (EMI-3)

●  EN61000-3-3 Voltage Changes, Fluctuations, and Flicker (EMI-3)
