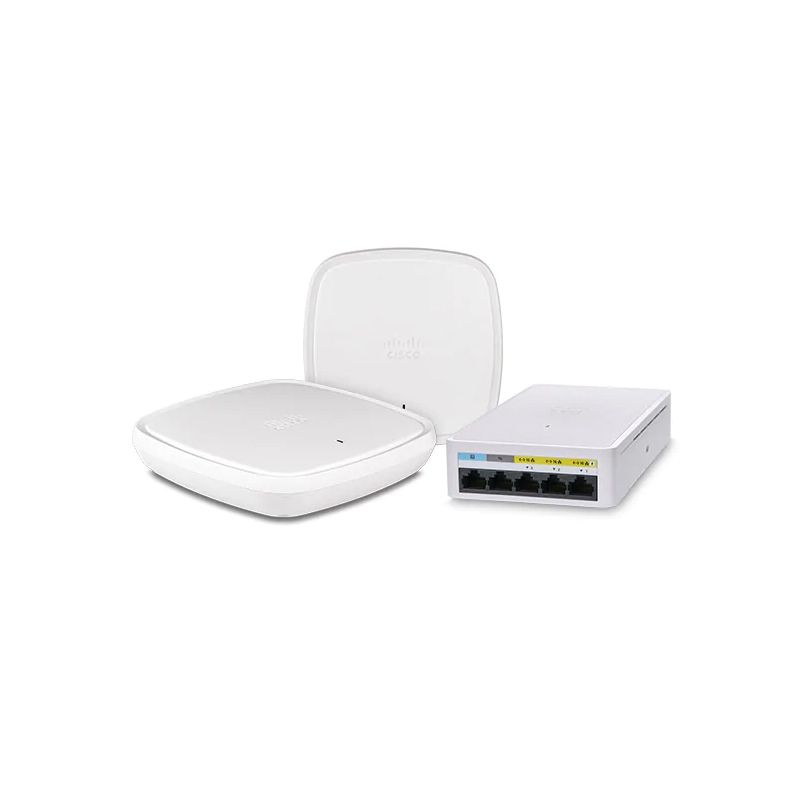

CISCO C9105AXW-N Catalyst 9105 Series Access Points
- 763 412 7282
- +86 010 69614620
C9105AXW-N Buying Guide
C9105AXW-N Cisco Catalyst 9105AX Wall-mounted 2x2 MIMO WiFi 6 APs is listed by YYST Global for buyers looking for CISCO Cisco Catalyst 9105 Series Access Points. C9105AXW-N CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 336.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: C9105AXW-N
- Brand: CISCO
- Category: Cisco Catalyst 9105 Series Access Points
- Condition: New Factory Sealed
- Reference price: US$ 336.00
C9105AXW-N Overview
C9105AXW-N is a CISCO wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: C9105AXW-N Cisco Catalyst 9105AX Wall-mounted 2x2 MIMO WiFi 6 APs. Category: Cisco Catalyst 9105 Series Access Points. Condition: New Factory Sealed.
C9105AXW-N Specification
| Part numbers | Cisco Catalyst 9105AX Access Point: Wall Plate, with internal antennas | |||||||||
| ● C9105AXW-x: Cisco Catalyst 9105 Series | ||||||||||
| Regulatory domains: (x = regulatory domain) | ||||||||||
| Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country. | ||||||||||
| Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List and/or regional price lists. | ||||||||||
| Cisco Wireless LAN Services | ||||||||||
| ● AS-WLAN-CNSLT: Cisco Wireless LAN Network Planning and Design Service | ||||||||||
| ● AS-WLAN-CNSLT: Cisco Wireless LAN 802.11n Migration Service | ||||||||||
| Accessories | ● Mounting bracket: AIR-AP-BRACKET-W4= (available as spare) | |||||||||
| ● Spacer kit: C9105AXW-KIT (sold separately) | ||||||||||
| Software | Catalyst 9105AXW | |||||||||
| ● Cisco Unified Wireless Network Software Release 8.10MR3 or later | ||||||||||
| ● Cisco IOS XE Software Release 17.3.1 or later | ||||||||||
| Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers | |||||||||
| ● Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller | ||||||||||
| 802.11n version 2.0 (and related) capabilities | ● 2x2 MIMO with two spatial streams | |||||||||
| ● Maximal Ratio Combining (MRC) | ||||||||||
| ● 802.11n and 802.11a/g | ||||||||||
| ● 20- and 40-MHz channels | ||||||||||
| ● PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) | ||||||||||
| ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) | ||||||||||
| ● 802.11 Dynamic Frequency Selection (DFS) | ||||||||||
| ● Cyclic Shift Diversity (CSD) support | ||||||||||
| 802.11ac | ● 2x2 downlink MU-MIMO with two spatial streams | |||||||||
| ● MRC | ||||||||||
| ● 802.11ac beamforming | ||||||||||
| ● 20-, 40-, 80- MHz channels | ||||||||||
| ● PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) | ||||||||||
| ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | ||||||||||
| ● 802.11 DFS | ||||||||||
| ● CSD support | ||||||||||
| ● WPA3 support | ||||||||||
| 802.11ax | ● 2x2 uplink/downlink MU-MIMO with two spatial streams | |||||||||
| ● Uplink/downlink OFDMA | ||||||||||
| ● TWT | ||||||||||
| ● BSS coloring | ||||||||||
| ● MRC | ||||||||||
| ● 802.11ax beamforming | ||||||||||
| ● 20-, 40-, 80- channels | ||||||||||
| ● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) | ||||||||||
| ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | ||||||||||
| ● 802.11 DFS | ||||||||||
| ● CSD support | ||||||||||
| ● WPA3 support | ||||||||||
| Integrated antenna | Catalyst 9105AXW | |||||||||
| ● 2.4 GHz: Peak gain 3 dBi, internal antenna | ||||||||||
| ● 5 GHz: Peak gain 5 dBi, internal antenna | ||||||||||
| Interfaces | Catalyst 9105AXW | |||||||||
| ● 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface | ||||||||||
| ● 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) | ||||||||||
| ● Management console port (RJ-45) | ||||||||||
| ● USB 2.0 at 4.5W | ||||||||||
| ● Passthru Port | ||||||||||
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors | |||||||||
| Dimensions | ● Access point (without mounting brackets): | |||||||||
| (W x L x H) | ◦ C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) | |||||||||
| Weight | Cisco Catalyst 9105AXW | |||||||||
| ● 0.8 lb. (373.2g) | ||||||||||
| Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE) | |||||||||
| ● Cisco power injector, AIR-PWRINJ6= | ||||||||||
| ● 802.3af PoE | ||||||||||
| ● Cisco power injector, AIR-PWRINJ5= ( Note: This injector supports only 802.3af) | ||||||||||
| Catalyst 9105AXW | ||||||||||
| PoE power | 2.4-GHz radio | 5-GHz radio | Link speed | USB | LAN1 PSE | |||||
| 802.3af (PoE) | 2x2 | 2x2 | 2.5G mGig | Disabled | Disabled | |||||
| 802.3at (PoE+) | 2x2 | 2x2 | 2.5G mGig | Either USB or LAN1 PSE enabled. | ||||||
| Environmental | Cisco Catalyst 9105AXW | |||||||||
| ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) | ||||||||||
| ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) | ||||||||||
| ● Operating temperature: 32° to 122°F (0° to 50°C) | ||||||||||
| ● Operating humidity: 10% to 90% (noncondensing) | ||||||||||
| ● Operating altitude test: 40˚C, 9843 ft (3000 m) | ||||||||||
| Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2x2 to 1x1 on the 2.4 GHz radio and the USB interface and LAN1 PSE will be disabled. | ||||||||||
| Available transmit power settings (Max/Min) | ● 2.4 GHz | ● 5 GHz | ||||||||
| ◦ 20 dBm (100 mW) | ◦ 20 dBm (100 mW) | |||||||||
| ◦ -7 dBm (0.2 mW) | ◦ -7 dBm (0.2 mW) | |||||||||
| Regulatory domains | Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country. | |||||||||
| For information about regulatory domain support, refer to the Cisco Regulatory Domain White Paper. | ||||||||||
| Compliance | ● Safety: | ● Radio: | ||||||||
| ◦ IEC 60950-1 | ◦ EN 300 328 (v2.1.1) | |||||||||
| ◦ EN 60950-1 | ◦ EN 301 893 (v2.1.1) | |||||||||
| ◦ UL 60950-1 | ◦ AS/NZS 4268 (rev. 2017) | |||||||||
| ◦ IEC 62368-1 | ◦ 47 CFR FCC Part 15C, 15.247, 15.407 | |||||||||
| ◦ EN 62368-1 | ◦ RSP-100 | |||||||||
| ◦ UL/CUL 62368 – 1 | ◦ RSS-GEN | |||||||||
| ◦ CAN/CSA-C22.2 No. 60950-1 | ◦ RSS-247 | |||||||||
| ◦ AS/NZS60950.1 | ◦ China regulations SRRC | |||||||||
| ◦ Class III equipment | ◦ Japan Std. 33a, Std. 66, and Std. 71 | |||||||||
| ● Emissions: | ● RF safety: | |||||||||
| ◦ CISPR 32 (rev. 2015) | ◦ EN 50385 (rev. Aug 2002) | |||||||||
| ◦ EN 55032 (rev. 2012/AC:2013) | ◦ ARPANSA | |||||||||
| ◦ EN 55032 (rev. 2015) | ◦ AS/NZS 2772 (rev. 2016) | |||||||||
| ◦ EN61000-3-2 (rev. 2014) | ◦ EN 62209-1 (rev. 2016) | |||||||||
| ◦ EN61000-3-3 (rev. 2013) | ◦ EN 62209-2 (rev. 2010) | |||||||||
| ◦ KN61000-3-2 | ◦ 47 CFR Part 1.1310 and 2.1091 | |||||||||
| ◦ KN61000-3-3 | ◦ RSS-102 | |||||||||
| ◦ AS/NZS CISPR 32 Class B (rev. 2015) | ● IEEE standards: | |||||||||
| ◦ 47 CFR FCC Part 15B | ◦ IEEE 802.3 | |||||||||
| ◦ ICES-003 (rev. 2016 Issue 6, Class B) | ◦ IEEE 802.3ab | |||||||||
| ◦ VCCI-CISPR 32 | ◦ IEEE 802.3af/at | |||||||||
| ◦ CNS (rev. 13438) | ◦ IEEE 802.11a/b/g/n/ac/ax | |||||||||
| ◦ KN-32 | ◦ IEEE 802.11h, 802.11d | |||||||||
| ◦ QCVN 118:2018/BTTTT | ● Security: | |||||||||
| ● Immunity: | ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 | |||||||||
| ◦ CISPR 24 (rev. 2010) | ◦ 802.1X | |||||||||
| ◦ EN 55024 + AMD 1 (rev. 2010) | ◦ Advanced Encryption Standard (AES) | |||||||||
| ◦ EN 55035: 2017 | ● Extensible Authentication Protocol (EAP) types: | |||||||||
| ◦ KN35 | ◦ EAP-Transport Layer Security (TLS) | |||||||||
| ● Emissions and immunity: | ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 | |||||||||
| ◦ EN 301 489-1 (v2.1.1 2017-02) | ◦ Protected EAP (PEAP) v0 or EAP-MSCHAP v2 | |||||||||
| ◦ EN 301 489-17 (v3.1.1 2017-02) | ◦ EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) | |||||||||
| ◦ QCVN (18:2014) | ◦ PEAP v1 or EAP-Generic Token Card (GTC) | |||||||||
| ◦ QCVN 112:2017/BTTTT | ◦ EAP-Subscriber Identity Module (SIM) | |||||||||
| ◦ KN 489-1 | ||||||||||
| ◦ KN 489-17 | ||||||||||
| ◦ EN 61000-6-1: 2007 | ||||||||||
| Datarate/Transmit Power/ Receive sensitivity | ● For information about Datarate, Transmit power and Receive Sensitivity, refer to Cisco RF details | |||||||||
| Transmit power and receive sensitivity | ||||||||||
| 5 GHz Radio | 2.4 GHz Radio | |||||||||
| Spatial streams | Number of active antennas | Total TX power (dBm) | RX sensitivity (dBm) | Total TX power (dBm) | RX sensitivity (dBm) | |||||
| 802.11/11b | ||||||||||
| 1 Mbps | 1 | 2 | – | – | 20 | -99 | ||||
| 11 Mbps | 1 | 2 | – | – | 20 | -91 | ||||
| 802.11a/g | ||||||||||
| 6 Mbps | 1 | 2 | 20 | -97 | 20 | -93 | ||||
| 24 Mbps | 1 | 2 | 20 | -89 | 20 | -86 | ||||
| 54 Mbps | 1 | 2 | 20 | -80 | 20 | -78 | ||||
| 802.11n HT20 | ||||||||||
| MCS0 | 1 | 2 | 20 | -96 | 20 | -93 | ||||
| MCS15 | 2 | 2 | 20 | -75 | 20 | -73 | ||||
| 802.11n HT40 | ||||||||||
| MCS0 | 1 | 2 | 20 | -93 | – | – | ||||
| MCS15 | 2 | 2 | 20 | -72 | – | – | ||||
| 802.11ac VHT20 | ||||||||||
| MCS0 | 1 | 2 | 20 | -96 | – | – | ||||
| MCS8 | 1 | 2 | 20 | -74 | – | – | ||||
| MCS0 | 2 | 2 | 20 | -94 | – | – | ||||
| MCS8 | 2 | 2 | 20 | -71 | – | – | ||||
| MCS9 | 2 | 2 | - | - | – | – | ||||
| 802.11ac VHT40 | ||||||||||
| MCS0 | 1 | 2 | 20 | -93 | – | – | ||||
| MCS9 | 1 | 2 | 20 | -69 | – | – | ||||
| MCS0 | 2 | 2 | 20 | -91 | – | – | ||||
| MCS9 | 2 | 2 | 20 | -66 | – | – | ||||
| 802.11ac VHT80 | ||||||||||
| MCS0 | 1 | 2 | 20 | -90 | – | – | ||||
| MCS9 | 1 | 2 | 20 | -66 | – | – | ||||
| MCS0 | 2 | 2 | 20 | -88 | – | – | ||||
| MCS9 | 2 | 2 | 20 | -63 | – | – | ||||
| 802.11ax HE20 | ||||||||||
| MCS0 | 1 | 2 | 20 | -96 | 20 | -93 | ||||
| MCS11 | 1 | 2 | 19 | -66 | 19 | -64 | ||||
| MCS0 | 2 | 2 | 20 | -95 | 20 | -91 | ||||
| MCS11 | 2 | 2 | 19 | -65 | 19 | -63 | ||||
| 802.11ax HE40 | ||||||||||
| MCS0 | 1 | 2 | 20 | -93 | – | – | ||||
| MCS11 | 1 | 2 | 19 | -63 | – | – | ||||
| MCS0 | 2 | 2 | 20 | -92 | – | – | ||||
| MCS11 | 2 | 2 | 19 | -62 | – | – | ||||
| 802.11ax HE80 | ||||||||||
| MCS0 | 1 | 2 | 20 | -90 | – | – | ||||
| MCS11 | 1 | 2 | 19 | -60 | – | – | ||||
| MCS0 | 2 | 2 | 20 | -89 | – | – | ||||
| MCS11 | 2 | 2 | 19 | -59 | – | – | ||||
C9105AXW-N Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
C9105AXW-N FAQ
What is C9105AXW-N used for?
C9105AXW-N Cisco Catalyst 9105AX Wall-mounted 2x2 MIMO WiFi 6 APs is a CISCO accessory or component in the Cisco Catalyst 9105 Series Access Points category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with C9105AXW-N?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with C9105AXW-N?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of C9105AXW-N?
The current reference price for C9105AXW-N is US$ 336.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
