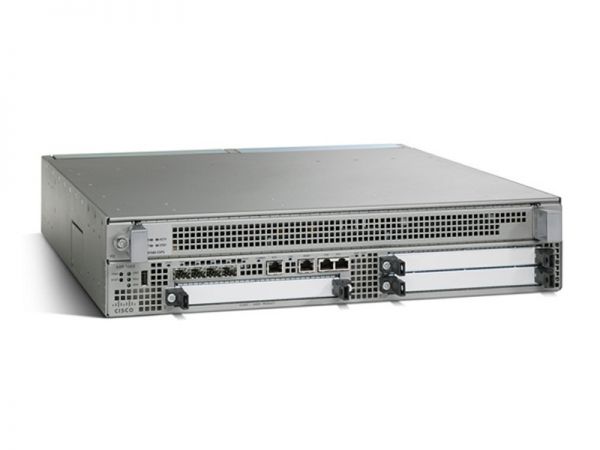

CISCO C1-ASR1002-X/K9 Router ASR 1000

C1-ASR1002-X/K9 Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 3.5 in. (88.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)

●  39.05 lb (17.72 kg) (with dual DC power supply and blank covers)

●  No SPAs included

Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.

Default memory

4-GB DRAM shared across route processor, ESP, and SIP

Number of SIPs or Ethernet line cards supported

Integrated in chassis

Shared port adapters

3 SPA slots

Ethernet port adapters

N/A

Cisco ASR 1000 Series ESP

Integrated in chassis

Route processor

Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor

Redundancy

Software: Yes

Built-in Gigabit Ethernet ports

Yes: 6 Gigabit Ethernet SFP ports

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

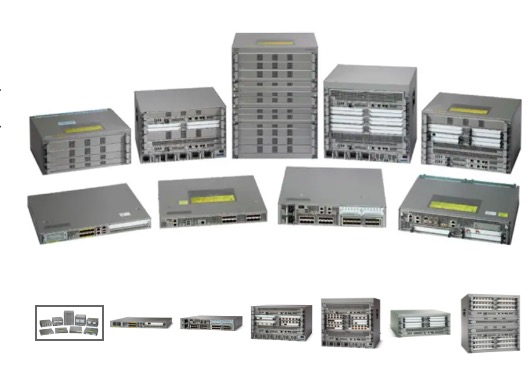

Cisco ASR 1000 Series

Cisco ASR 1002-X

ESP support

Cisco ASR 1002-X ESP with 5-Gbps (default)

Upgradable through software-activated feature license to 10, 20, or 36 Gbps

ESP bandwidth

5 to 36 Gbps

ESP memory

Share the same control memory on route processor

SIPs and Ethernet line cards

Integrated in chassis: not upgradable

Embedded hardware-based encryption

Yes: Up to 4-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.7.0S

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Same as for Cisco ASR 1002

Power input

Same as for Cisco ASR 1002

Power consumption

●  Maximum (DC): 590W

●  Maximum (AC): 560W

●  Maximum (out): 470W

Airflow

Front-to-back

Operating temperature (nominal)

32 to 104°F
(0 to 40°C)

Operating temperature (short-term)

32 to 122°F
(0 to 50°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity (short-term)

5 to 90%

Storage temperature

-40 to 150°F

(-40 to 70°C)

Storage humidity (relative humidity)

5 to 95%

Operating altitude

-500 to 10,000 feet
(152 to 3048 meters)

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
